NSN 2540-00-737-3745 1277074, 7373745, 00-737-3745
Product Details | DOOR HANDLE
2540-00-737-3745 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 1277074, 7373745, 2540-00-737-3745, 00-737-3745, 2540007373745, 007373745
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1961 | 00-737-3745 | 18073 ( HANDLE, DOOR ) |

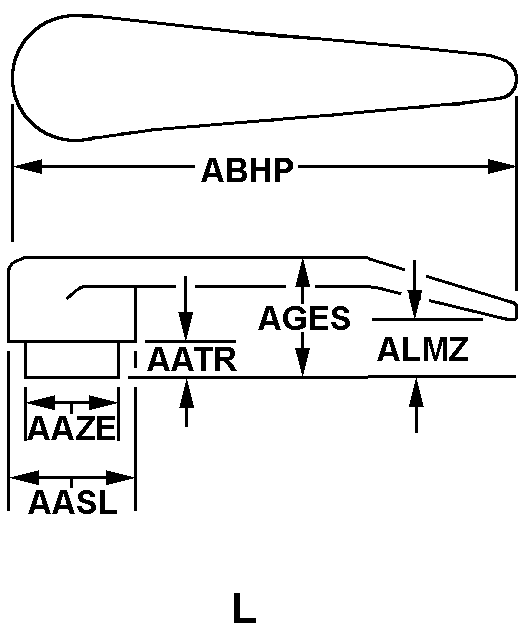

Drawings & Photos | NSN 2540-00-737-3745
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-737-3745
Technical Data | NSN 2540-00-737-3745
| Characteristic | Specifications |
|---|---|
| COLOR | OLIVE DRAB OVERALL |
| STYLE DESIGNATOR | C21 L |
| HEAD DIAMETER | 0.937 INCHES NOMINAL |
| SHANK LENGTH | 0.312 INCHES NOMINAL |
| SHANK DIAMETER | 0.680 INCHES MINIMUM AND 0.685 INCHES MAXIMUM |
| OVERALL LENGTH | 4.687 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.250 INCHES NOMINAL |
| MOUNTING FACILITY QUANTITY | 1 |
| MOUNTING FACILITY LENGTH | 0.875 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2540-00-737-3745
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | Y | Personnel services, Military Service Records, files, or other information subject to the Privacy Act of 1974. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2540-00-737-3745
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9A | Navy-owned stocks of parts peculiar to combat and tactical vehicles of Army design Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
