NSN 2540-00-734-1511 7341511, 00-734-1511, 007341511
Product Details | DOOR HANDLE
2540-00-734-1511 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 7341511, 2540-00-734-1511, 00-734-1511, 2540007341511, 007341511
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 12 MAR 1969 | 00-734-1511 | 18073 ( HANDLE, DOOR ) |

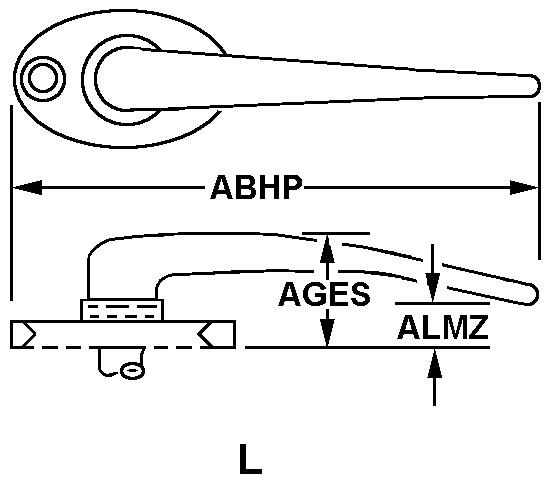

Drawings & Photos | NSN 2540-00-734-1511
Cross Reference | NSN 2540-00-734-1511
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7341511 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-734-1511
Technical Data | NSN 2540-00-734-1511
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | C37 L |
| OVERALL LENGTH | 5.730 INCHES NOMINAL |
| HANDLE HEIGHT | 2.375 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.687 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.437 INCHES NOMINAL |
| FEATURES PROVIDED | ESCUTCHEON PLATE FIXED |
Restrictions/Controls & Freight Information | NSN 2540-00-734-1511
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
