NSN 2540-00-679-8035 TG3507, 10861607, 10861811
Product Details | TOW HOOK
2540-00-679-8035 A metal hook-shaped item, specifically designed to be mounted on a vehicle to facilitate attachment of a chain, rope, and/or cable for towing purposes. See also HOOK, PINTLE and PINTLE ASSEMBLY, TOWING.
Part Alternates: TG3507, 10861607, 10861811, 1851996 , 2213507, 221-3507 , 2540-00-679-8035, 00-679-8035, 2540006798035, 006798035
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-679-8035 | 20165 ( HOOK, TOW ) |
Drawings & Photos | NSN 2540-00-679-8035
Demand History | NSN 2540-00-679-8035
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-00-679-8035 | 2024-02-36 | 959 | DIBBS |
| 2540-00-679-8035 | 2024-01-12 | 2 | United States |
| 2540-00-679-8035 | 2023-12-339 | 2 | US |
| 2540-00-679-8035 | 2023-11-316 | 959 | DIBBS |
| 2540-00-679-8035 | 2023-07-211 | 710 | DIBBS |
| 2540-00-679-8035 | 2023-07-197 | 710 | DIBBS |
| 2540-00-679-8035 | 2023-05-128 | 429 | DIBBS |
| 10861607 | 2022-09-250 | 40 | US |
| 2540-00-679-8035 | 2022-04-118 | 1 | United States |
| 2540-00-679-8035 | 2022-04-108 | 547 | DIBBS |
| 2540-00-679-8035 | 2022-01-03 | 1 | US |
| 2540-00-679-8035 | 2021-12-350 | 402 | DIBBS |
| 2540-00-679-8035 | 2020-11-311 | 241 | DIBBS |
| 2540-00-679-8035 | 2020-10-303 | 380 | DIBBS |
| 2540-00-679-8035 | 2020-10-296 | 241 | DIBBS |
| 2540-00-679-8035 | 2019-05-133 | 377 | DIBBS |
| 2540-00-679-8035 | 2019-05-122 | 377 | DIBBS |
| 2540-00-679-8035 | 2018-06-170 | 609 | US |
| 2540-00-679-8035 | 2018-06-168 | 609 | DIBBS |
| 2540-00-679-8035 | 2017-12-362 | 1 | US |
| 2540-00-679-8035 | 2017-09-265 | 1 | US |
| 2540-00-679-8035 | 2017-09-263 | 431 | DIBBS |
| 2540-00-679-8035 | 2016-12-363 | 2000 | DIBBS |
| 2540-00-679-8035 | 2016-08-227 | 715 | DIBBS |
| 2540-00-679-8035 | 2016-07-189 | 32 | KR |
| 2540-00-679-8035 | 2016-06-172 | 306 | DIBBS |
| 2540-00-679-8035 | 2016-06-161 | 306 | DIBBS |
| 2540-00-679-8035 | 2015-06-156 | 2 | CA |
| 2540-00-679-8035 | 2013-02-52 | 75 | DIBBS |
| 2540-00-679-8035 | 2013-01-18 | 55 | DIBBS |
| 2540-00-679-8035 | 2011-09-259 | 850 | TR |
| 2540-00-679-8035 | 2011-09-258 | 850 | TR |
| 2540-00-679-8035 | 2011-07-205 | 39 | DIBBS |
| 2540-00-679-8035 | 2011-07-192 | 2 | DIBBS |
| 2540-00-679-8035 | 2011-07-192 | 10 | DIBBS |
| 2540-00-679-8035 | 2008-12-350 | 221 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-679-8035

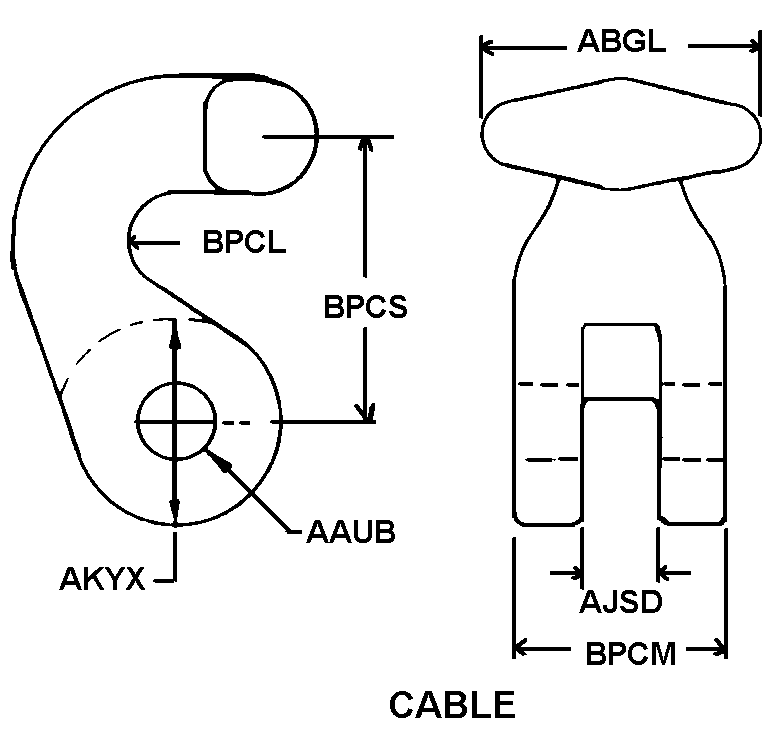

Technical Data | NSN 2540-00-679-8035
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 7 CABLE |
| HOLE DIAMETER | 1.015 INCHES MINIMUM AND 1.047 INCHES MAXIMUM |
| WIDTH | 3.750 INCHES NOMINAL |
| FORK SPAN WIDTH | 1.546 INCHES MINIMUM AND 1.562 INCHES MAXIMUM |
| FORK DEPTH | 2.750 INCHES NOMINAL |
| HOOK INSIDE RADIUS | 0.625 INCHES MINIMUM AND 0.687 INCHES MAXIMUM |
| SMALLEST WIDTH | 3.250 INCHES NOMINAL |
| LENGTH FROM HOLE CENTER TO HOOK HEAD CENTER | 3.938 INCHES MINIMUM AND 4.125 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 2540-00-679-8035
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
