NSN 2540-00-294-7317 8385336, 00-294-7317, 002947317
Product Details | DOOR HANDLE
2540-00-294-7317 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 8385336, 2540-00-294-7317, 00-294-7317, 2540002947317, 002947317
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-294-7317 | 18073 ( HANDLE, DOOR ) |

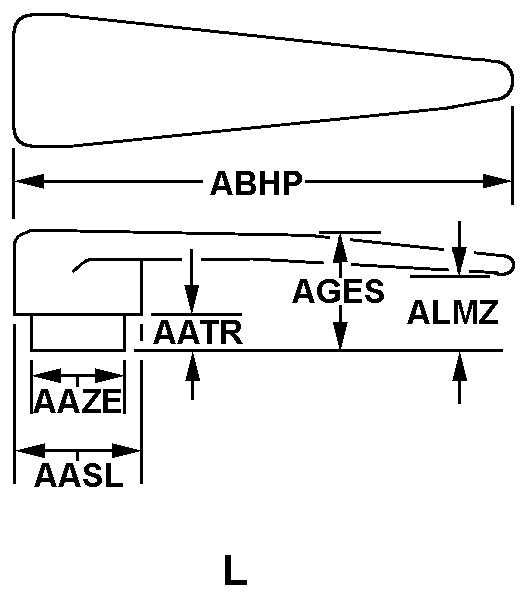

Drawings & Photos | NSN 2540-00-294-7317
Cross Reference | NSN 2540-00-294-7317
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8385336 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-294-7317
Technical Data | NSN 2540-00-294-7317
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS J05002 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681,CLASS 80-40 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ENAMEL SEMIGLOSS HANDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-E-485 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | OLIVE DRAB OVERALL |
| STYLE DESIGNATOR | C22 L |
| HEAD DIAMETER | 0.622 INCHES MINIMUM AND 0.623 INCHES MAXIMUM |
| SHANK LENGTH | 1.422 INCHES NOMINAL |
| SHANK DIAMETER | 0.622 INCHES MINIMUM AND 0.624 INCHES MAXIMUM |
| OVERALL LENGTH | 12.844 INCHES NOMINAL |
| HANDLE HEIGHT | 2.812 INCHES NOMINAL |
| HANDLE CLEARANCE | 2.312 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD LENGTH | 0.390 INCHES NOMINAL |
| INTEGRAL SHAFT STYLE | U11 THREADED |
| GROOVE WIDTH | 0.031 INCHES NOMINAL |
| SHAFT LENGTH | 2.312 INCHES NOMINAL |
| SQUARE SHAFT WIDTH | 0.497 INCHES MINIMUM AND 0.498 INCHES MAXIMUM |
| SHAFT ACCOMMODATION STYLE | V1 ROUND |
| ACCOMMODATED SHAFT DIAMETER | 0.622 INCHES MINIMUM AND 0.623 INCHES MAXIMUM |
