NSN 2540-00-278-2267 7404486, 00-278-2267, 002782267
Product Details | DOOR HANDLE
2540-00-278-2267 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 7404486, 2540-00-278-2267, 00-278-2267, 2540002782267, 002782267
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-278-2267 | 18073 ( HANDLE, DOOR ) |
Drawings & Photos | NSN 2540-00-278-2267
Cross Reference | NSN 2540-00-278-2267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7404486 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-278-2267
Technical Data | NSN 2540-00-278-2267
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS J03001 OR IRON CAST UNS F22400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681 FED SPEC 1ST MATERIAL RESPONSE OR QQ-I-666,GRADE 1 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HEAD DIAMETER | 1.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.614 INCHES MINIMUM AND 0.616 INCHES MAXIMUM |
| OVERALL LENGTH | 7.250 INCHES NOMINAL |
| HANDLE HEIGHT | 1.312 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD LENGTH | 0.650 INCHES NOMINAL |

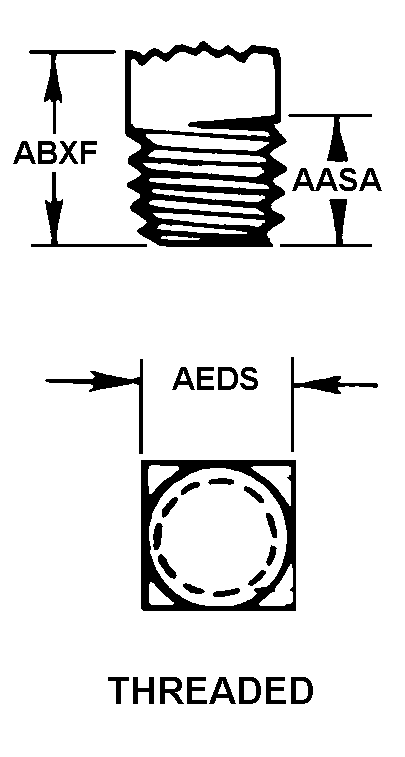

| INTEGRAL SHAFT STYLE | U6 THREADED |
| SHAFT LENGTH | 1.500 INCHES NOMINAL |
| FEATURES PROVIDED | LOCK ACCOMMODATION |
Restrictions/Controls & Freight Information | NSN 2540-00-278-2267
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018820 | AUTO HANDLES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
