NSN 2540-00-168-2187 MS530154, MS53015-4, A524323L
Product Details | REARVIEW MIRROR ASSEMBLY
2540-00-168-2187 A mirror, usually with a frame and bracket(s) and/or arm(s), for adjustable mounting in a position to reflect visibility in a specified direction.20216800049Miscellaneous Aircraft Accessories and Components25400035Vehicular Furniture and Accessories
Part Alternates: MS530154, MS53015-4, A524323L, A52432-3-L, ATPD2349, ATPD-2349, ATPD-2349 TYPE 4, ATPD2349TYPE4, 11619884-2, 2540-00-168-2187, 00-168-2187, 2540001682187 , 116198842, 001682187
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 10 JUL 1968 | 00-168-2187 | 06654 ( MIRROR ASSEMBLY, REARVIEW ) |

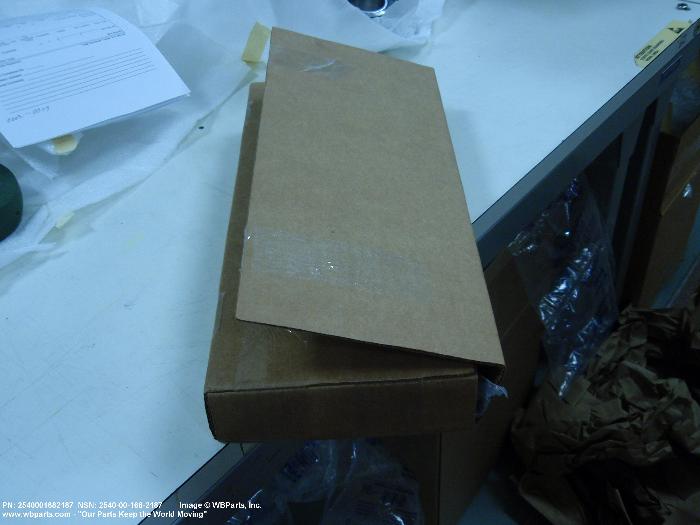

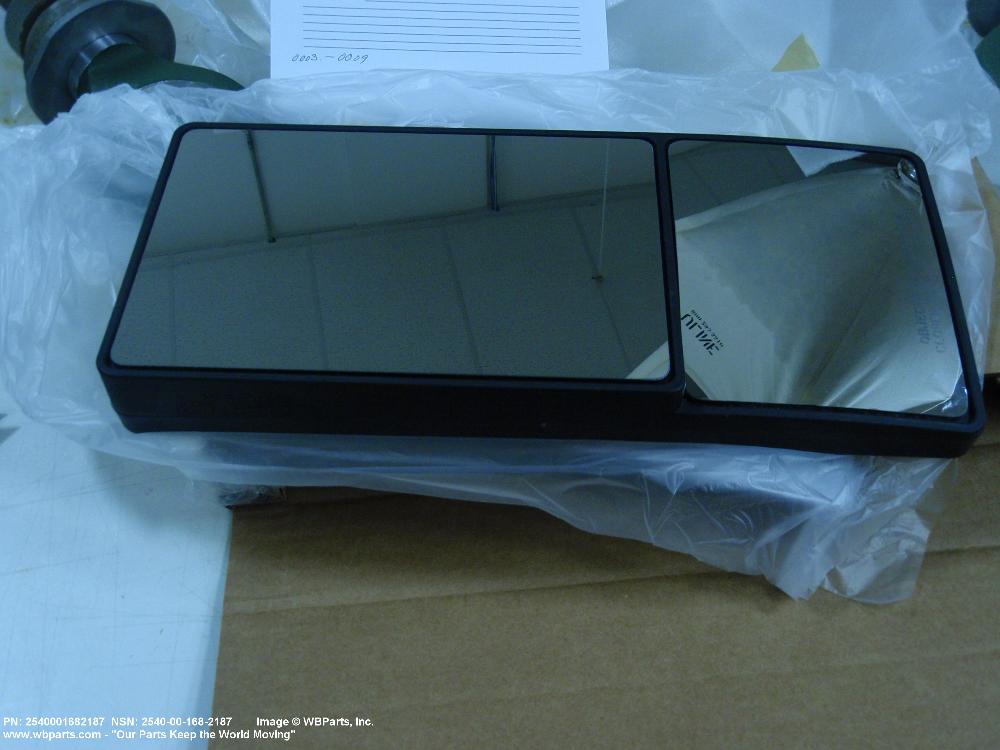

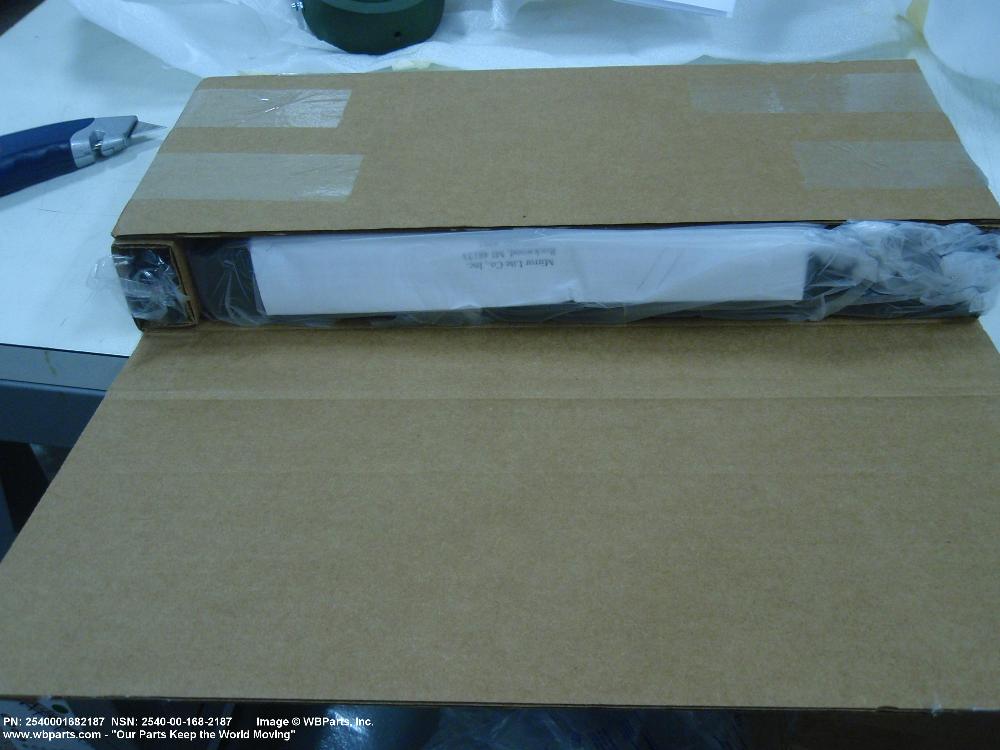

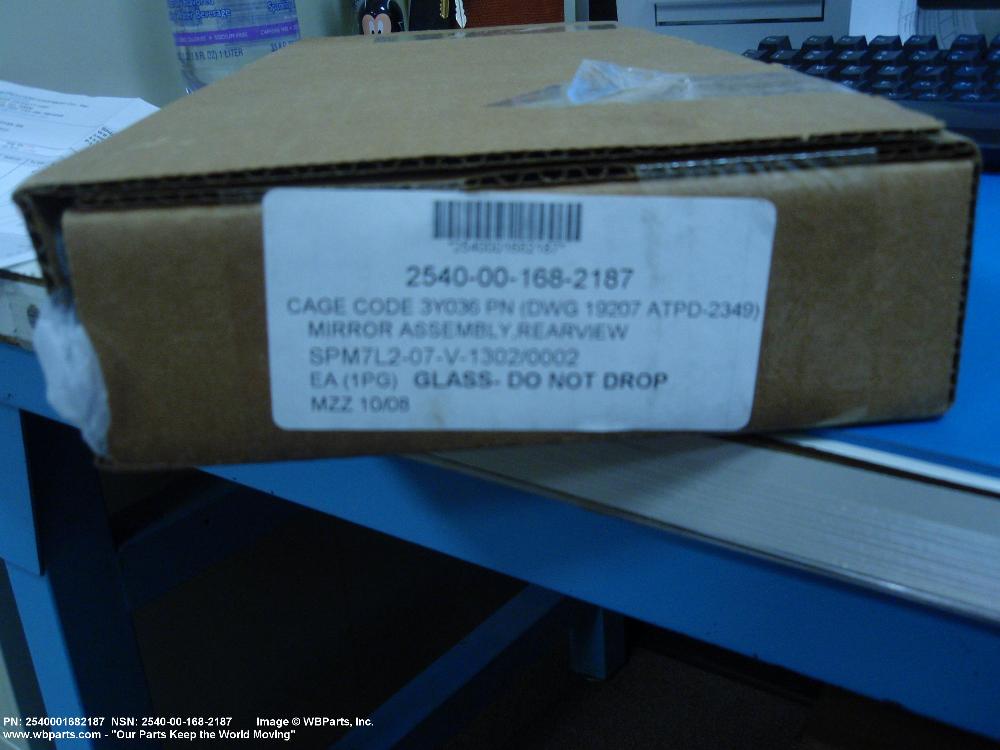

Drawings & Photos | NSN 2540-00-168-2187
Demand History | NSN 2540-00-168-2187
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-00-168-2187 | 2024-05-131 | 737 | US |
| 2540-00-168-2187 | 2024-05-130 | 737 | US |
| 2540-00-168-2187 | 2024-05-130 | 737 | DIBBS |
| 2540-00-168-2187 | 2023-05-130 | 3 | Taiwan |
| 2540-00-168-2187 | 2023-03-68 | 453 | DIBBS |
| 2540-00-168-2187 | 2022-07-205 | 933 | DIBBS |
| 2540-00-168-2187 | 2020-03-90 | 21 | MANUAL |
| A52432-3-L | 2020-03-90 | 21 | US |
| 2540-00-168-2187 | 2019-10-297 | 1 | Canada |
| 2540-00-168-2187 | 2018-03-76 | 20 | IT |
| 2540-00-168-2187 | 2017-07-191 | 1 | BE |
| 2540-00-168-2187 | 2015-10-289 | 1 | DIBBS-RFPs |
| A524323L | 2014-10-281 | 2 | United States |
| 2540-00-168-2187 | 2014-05-150 | 1177 | DIBBS |
| 2540-00-168-2187 | 2014-05-149 | 363 | DIBBS |
| 2540-00-168-2187 | 2011-04-109 | 381 | DIBBS |
| 2540-00-168-2187 | 2010-08-237 | 676 | DIBBS |
| 2540-00-168-2187 | 2010-03-85 | 840 | DIBBS |
| 2540-00-168-2187 | 2010-01-19 | 3271 | DIBBS |
| 2540-00-168-2187 | 2009-12-335 | 168 | DIBBS |
| 2540-00-168-2187 | 2008-09-273 | 1 | United States |
Cross Reference | NSN 2540-00-168-2187
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11619884-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 2540001682187 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| A52432-3-L | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| A52432-3-L | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| ATPD-2349 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| ATPD-2349 TYPE 4 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| MS53015-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-00-168-2187
Related Products | NSN 2540-00-168-2187
Technical Data | NSN 2540-00-168-2187
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ENAMEL |
| COLOR | ANY ACCEPTABLE |
| MOUNTING CONFIGURATION | TOP AND BOTTOM STUD MOUNT |
| MOUNTING LOCATION | OUTSIDE |
| MIRROR MATERIAL | GLASS |
| MIRROR SHAPE | RECTANGULAR |
| FRAME LENGTH | 16.813 INCHES MINIMUM AND 16.937 INCHES MAXIMUM |
| FRAME WIDTH | 6.000 INCHES NOMINAL |
| SPECIAL FEATURES | DESIGNED FOR LEFT HAND VEHICLE INSTALLATION |
| III END ITEM IDENTIFICATION | ADD-ON ARMOR, FMTV |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A52432-3-L |
Restrictions/Controls & Freight Information | NSN 2540-00-168-2187
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019070 | AUTO MIRRORS REAR VIEW |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2540-00-168-2187
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
