NSN 2530-01-560-0109 WM147C, 01-560-0109, 015600109
Product Details | AIR PRESSURE RELAY VALVE
2530-01-560-0109 A valve specifically designed for installation in an air brake system. It is used on trailers, long wheel base vehicles, as well as multiple rear axle vehicles. It serves to speed and synchronize the application and release of air operated service or parking brakes. It may include emergency features for trailer application.
Part Alternates: WM147C, 2530-01-560-0109, 01-560-0109, 2530015600109, 015600109
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 11 JAN 2008 | 01-560-0109 | 36296 ( VALVE, RELAY, AIR PRESSURE ) |
Drawings & Photos | NSN 2530-01-560-0109
Demand History | NSN 2530-01-560-0109
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-01-560-0109 | 2010-11-307 | 1 | US |
Cross Reference | NSN 2530-01-560-0109
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WM147C | 11331 | WILLIAMS CONTROLS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-01-560-0109
Technical Data | NSN 2530-01-560-0109
| Characteristic | Specifications |
|---|---|

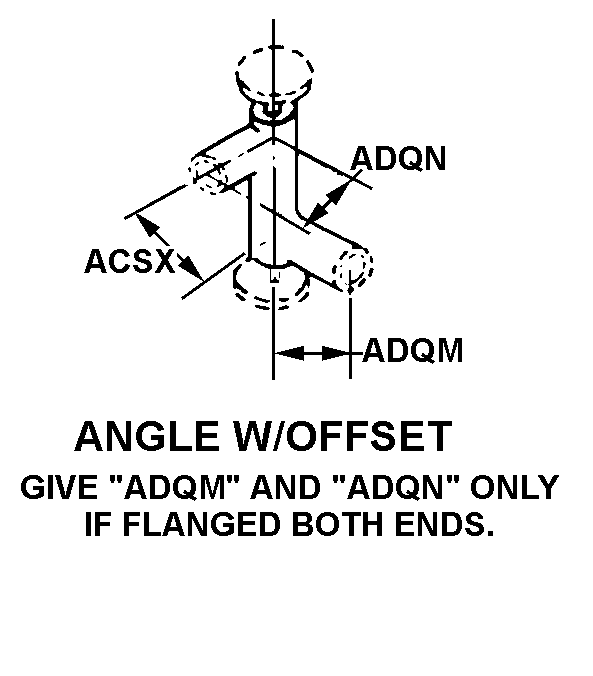

| BODY STYLE | A36 ANGLE W/OFFSET |
| STEM MATERIAL | ALUMINUM |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| TEMP RATING | 200.0 DEG CELSIUS |
| SPECIAL FEATURES | NORMALLY CLOSED 3-WAY NON-COMPENSATING RELAY EQUIPPED WITH WM111B BREATHER |
Restrictions/Controls & Freight Information | NSN 2530-01-560-0109
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
