Product Details | STEERING DRAG LINK

2530-01-499-0900 An item designed to form a connection and to transmit linear motion, either directly or indirectly, between the steering gear arm and the steering knuckle arms of a vehicle. See also TIE ROD, STEERING.20220300014Deck Machinery25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components

Part Alternates: 76C27, 76C-27, 2530-01-499-0900, 01-499-0900, 2530014990900, 014990900

Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components

Supply Group (FSG) NSN Assign. NIIN
25 12 JUL 2002 01-499-0900

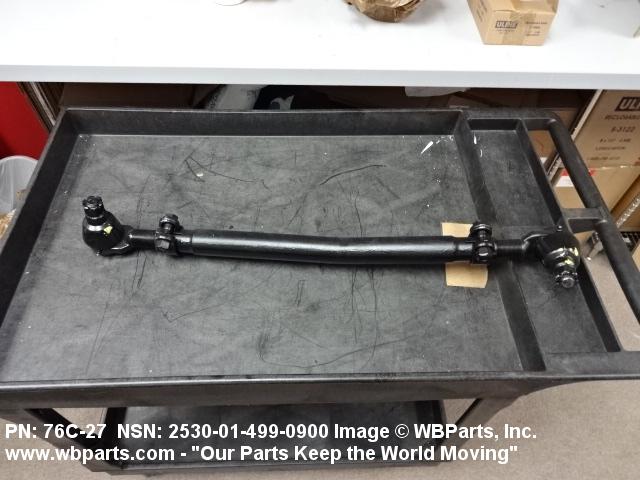

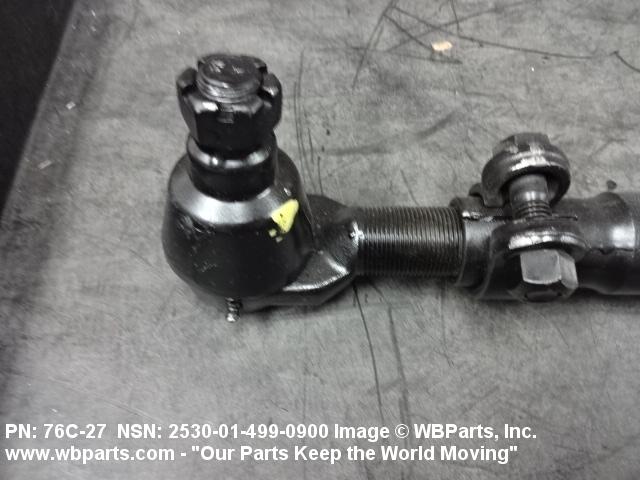

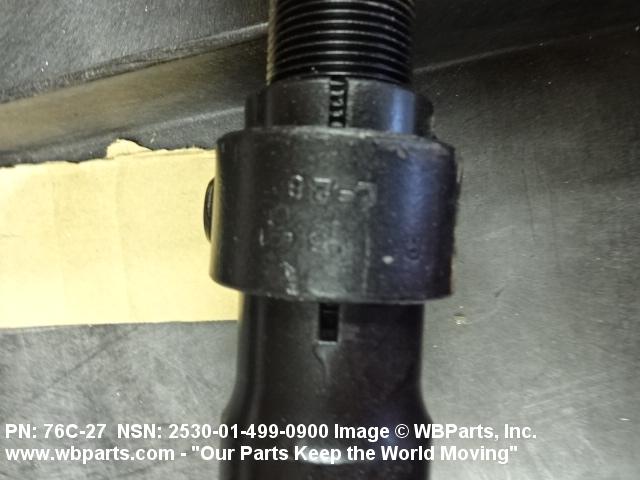

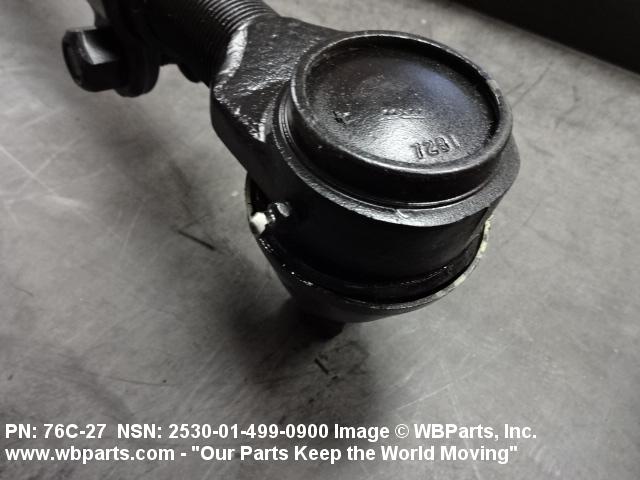

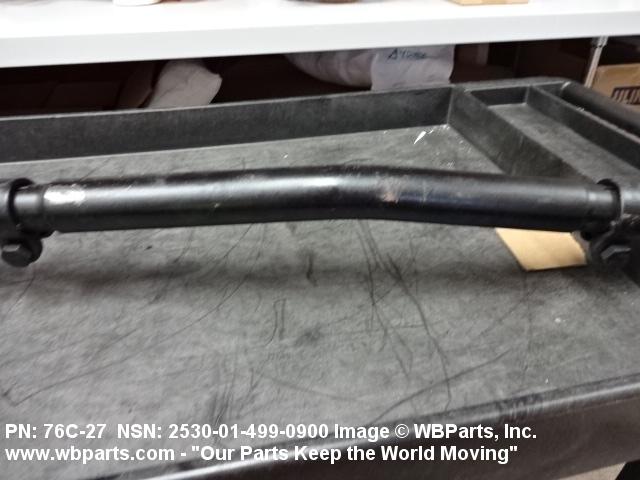

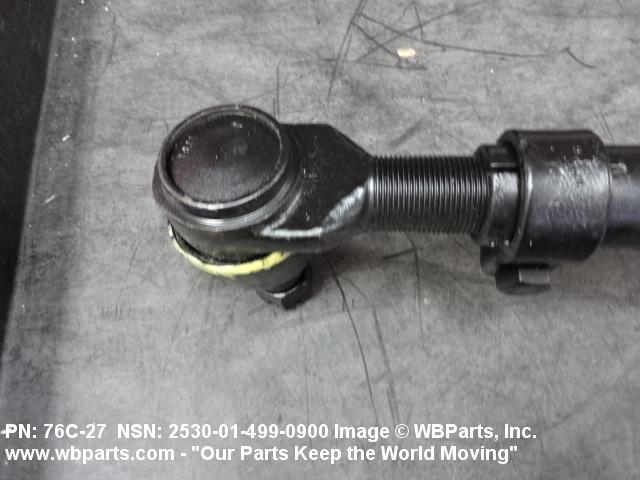

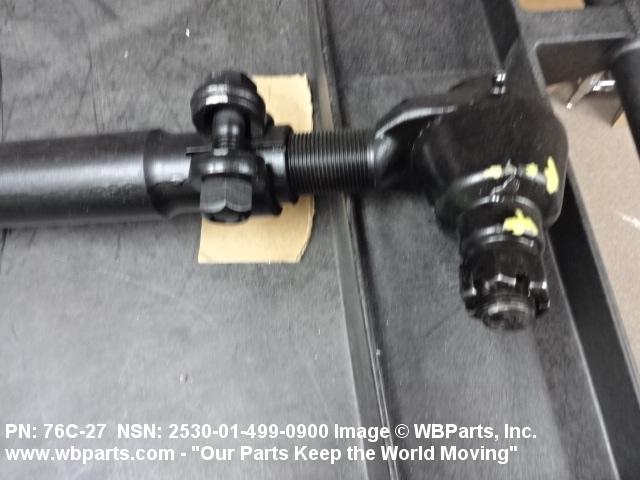

Drawings & Photos | NSN 2530-01-499-0900


Demand History | NSN 2530-01-499-0900

Part Number Request Date QTY Origin
76C-27 2024-09-261 1 DIBBS
76C-27 2024-06-171 1 DIBBS
76C-27 2023-02-33 1 DIBBS
76C-27 2022-11-305 1 DIBBS
2530-01-499-0900 2017-03-88 1 United States
2530-01-499-0900 2017-03-88 1 us

Cross Reference | NSN 2530-01-499-0900

Part Number Cage Code Manufacturer
76C-27 03533 CRANE CARRIER COMPANY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2530-01-499-0900

Restrictions/Controls & Freight Information | NSN 2530-01-499-0900

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 019670 AUTO STEERING GEAR ASSY W/O WHEELS
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 885 unknown
Originating Activity Code AZ U.S. Army Tank-Automotive and Armaments
Command
Warren, MI 48397-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2530-01-499-0900

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment4 PROVISIONING ITEMS (Exclusive of Insurance Items). This code will identify new items introduced through the provisioning process for system stock which would normally be categorized as either nonreparable or reparable but for which sufficient experience has been obtained to manage on the basis of normal demand forecasts.
Specific Group/Generic CodeN Tactical Vehicles
Weapons Systems/End Item or Homogeneous GroupNEM878 Family of Vehicles (Includes M878 and M878A1)
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
