Product Details | AIR PRESSURE RELAY VALVE
2530-01-478-5902 A valve specifically designed for installation in an air brake system. It is used on trailers, long wheel base vehicles, as well as multiple rear axle vehicles. It serves to speed and synchronize the application and release of air operated service or parking brakes. It may include emergency features for trailer application.
Part Alternates: N50004E, N50004-E, 12417375, 12417375001, 12417375-001, 2530-01-478-5902, 01-478-5902, 2530014785902, 014785902
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 19 SEP 2000 | 01-478-5902 | 36296 ( VALVE, RELAY, AIR PRESSURE ) |

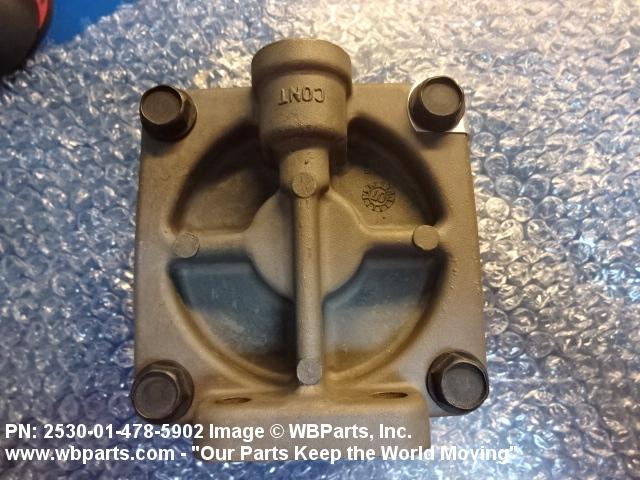

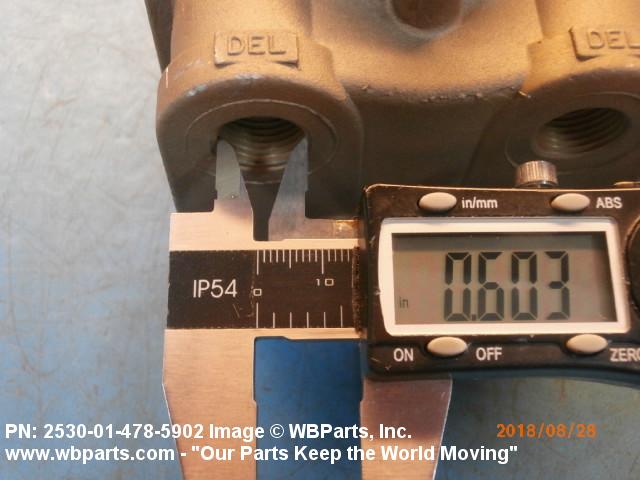

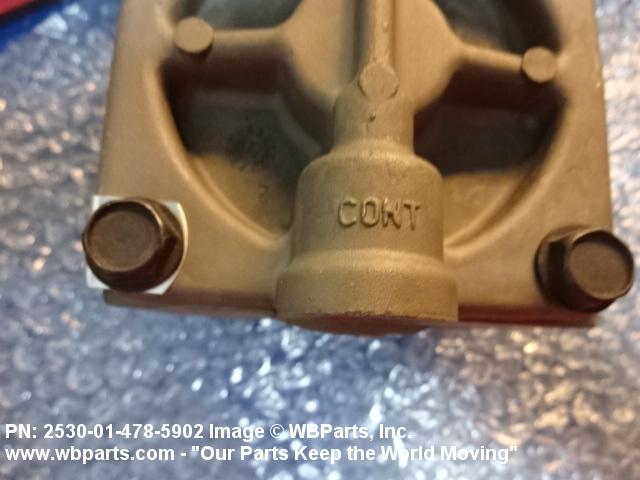

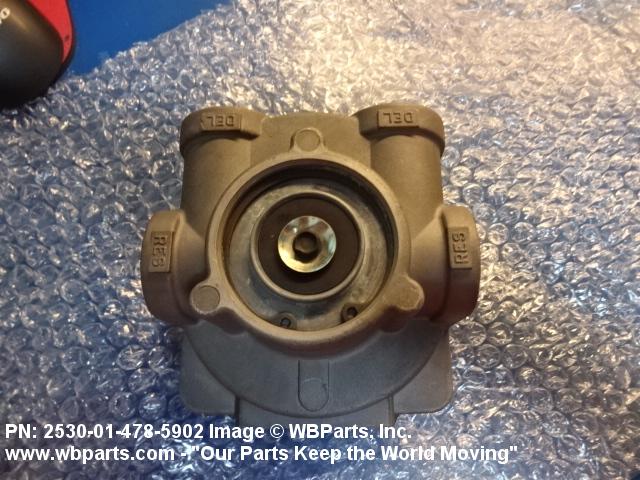

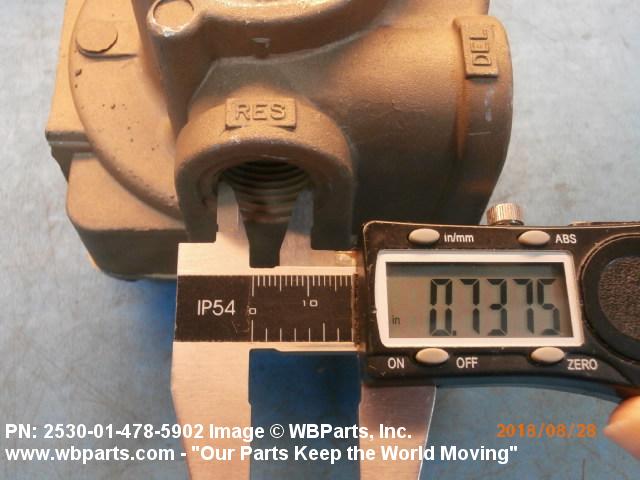

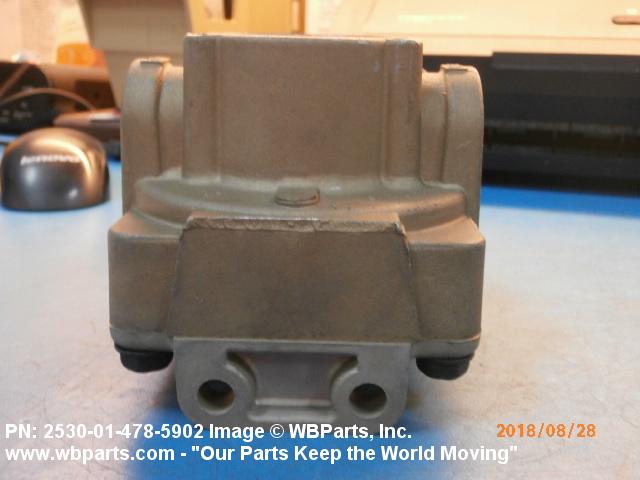

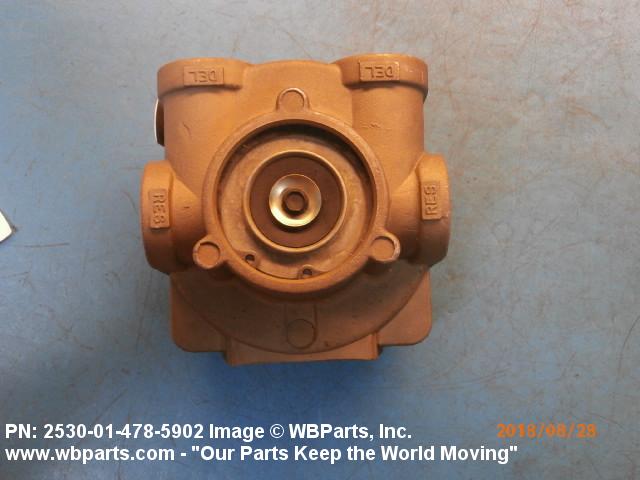

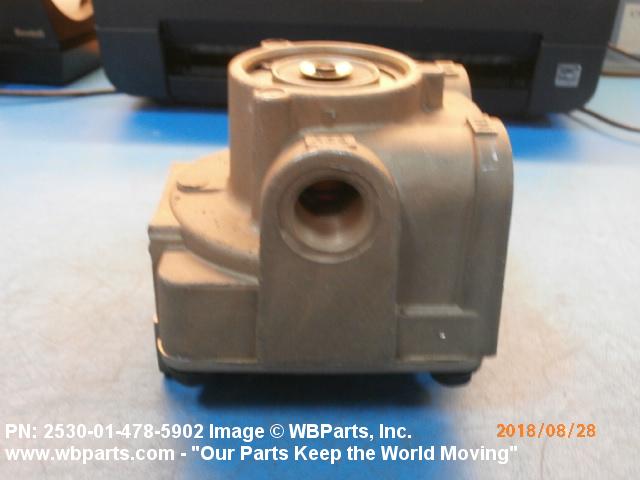

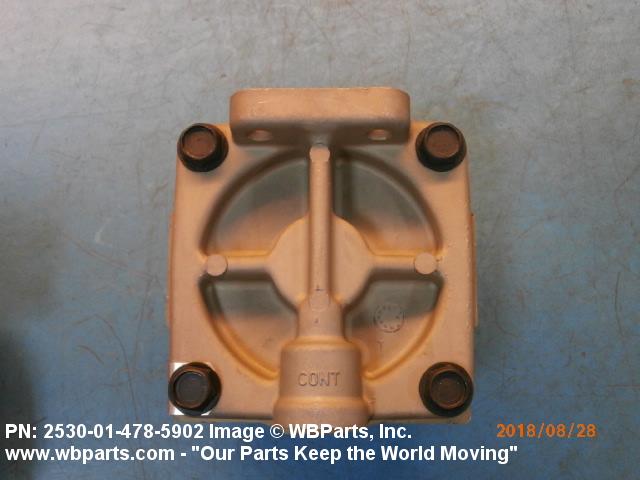

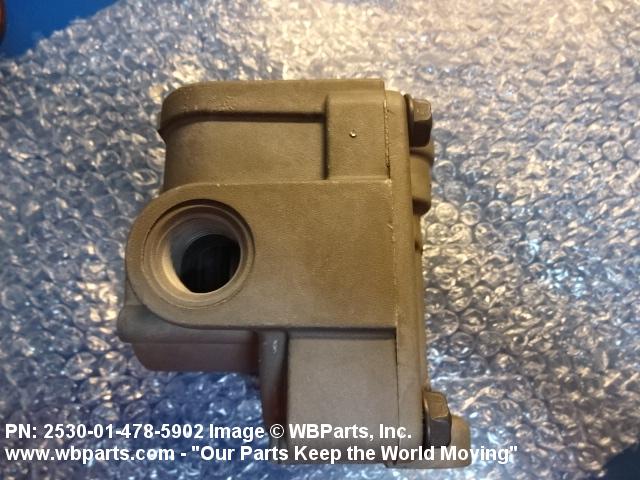

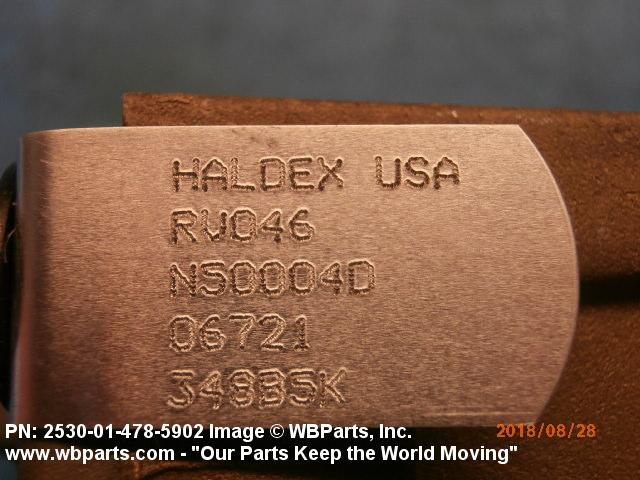

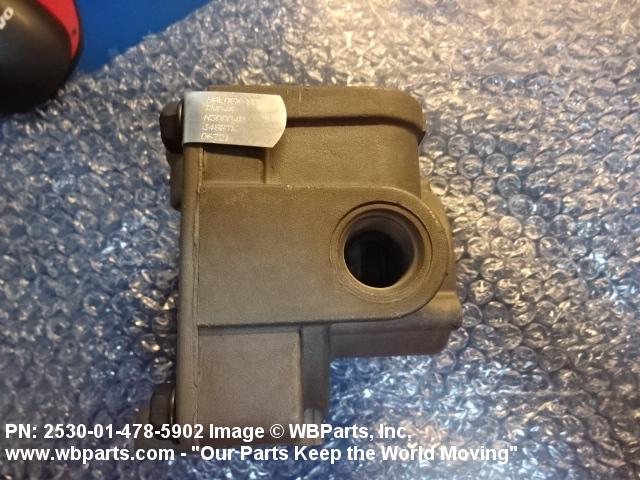

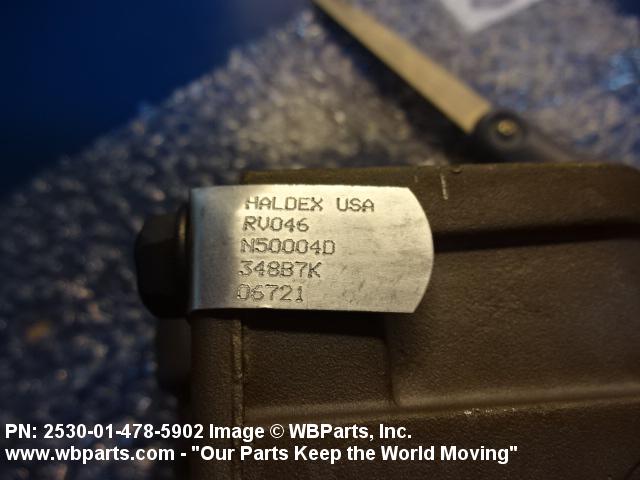

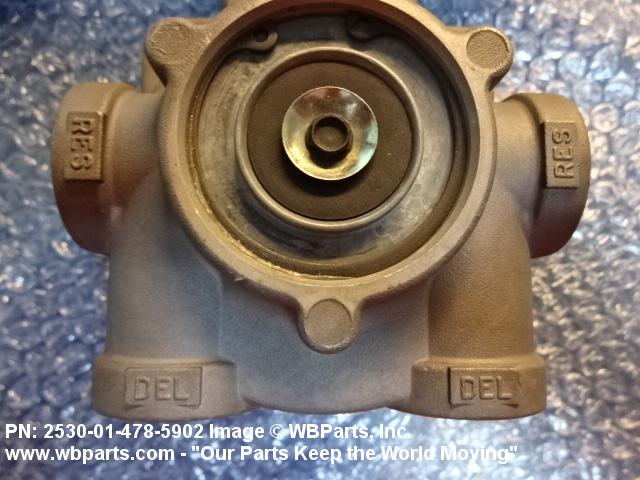

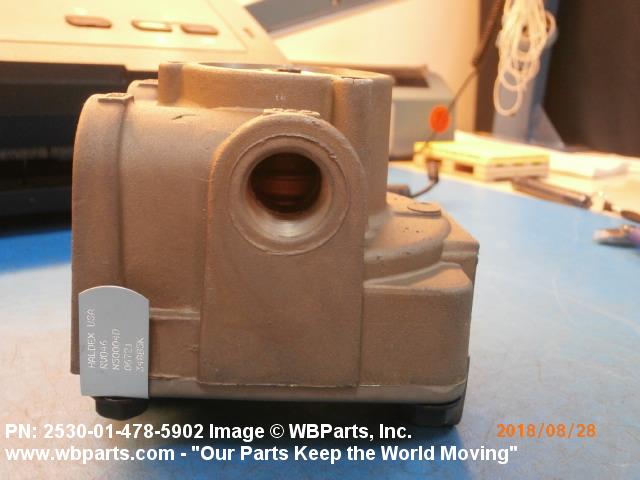

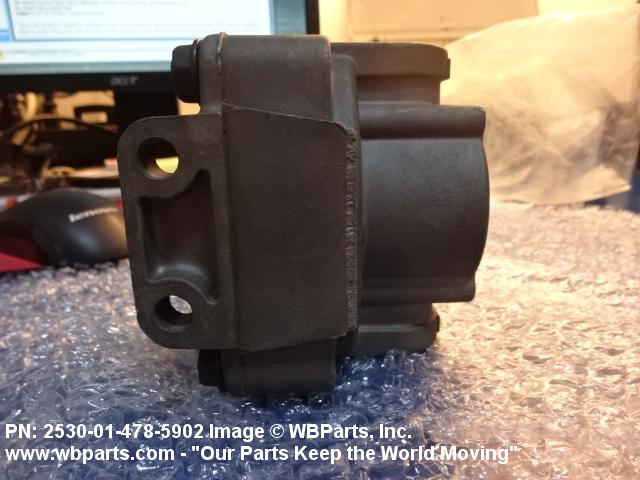

Drawings & Photos | NSN 2530-01-478-5902
Demand History | NSN 2530-01-478-5902
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12417375-001 | 2021-10-290 | 19 | DIBBS |
| N50004-E | 2021-10-290 | 19 | DIBBS |
| 12417375-001 | 2020-10-282 | 122 | DIBBS |
| N50004-E | 2020-10-282 | 122 | DIBBS |
| 12417375-001 | 2020-09-264 | 31 | DIBBS |
| N50004-E | 2020-09-264 | 31 | DIBBS |
| 2530-01-478-5902 | 2020-07-207 | 1 | US |
| 12417375-001 | 2020-05-149 | 186 | DIBBS |
| N50004-E | 2020-05-149 | 186 | DIBBS |
| 12417375-001 | 2020-01-23 | 122 | DIBBS |
| N50004-E | 2020-01-23 | 122 | DIBBS |
| 2530-01-478-5902 | 2019-01-18 | 1 | United States |
| 2530-01-478-5902 | 2018-08-227 | 1 | United States |
| 2530-01-478-5902 | 2018-06-155 | 118 | DIBBS |
| 2530-01-478-5902 | 2018-05-144 | 118 | DIBBS |
| 2530-01-478-5902 | 2018-01-26 | 86 | DIBBS |
| 2530-01-478-5902 | 2018-01-15 | 86 | DIBBS |
| 2530-01-478-5902 | 2015-09-260 | 116 | DIBBS |
| 2530-01-478-5902 | 2014-07-204 | 95 | DIBBS |
| 2530-01-478-5902 | 2013-05-141 | 0 | DIBBS |
| 2530-01-478-5902 | 2012-11-333 | 61 | DIBBS |
| 2530-01-478-5902 | 2012-03-89 | 61 | DIBBS |
| 2530-01-478-5902 | 2009-10-303 | 50 | DIBBS |
| 2530-01-478-5902 | 2009-01-20 | 52 | DIBBS |
| 2530-01-478-5902 | 2008-05-134 | 194 | DIBBS |
| 2530-01-478-5902 | 2007-09-269 | 139 | DIBBS |
| 2530-01-478-5902 | 2007-03-89 | 48 | DIBBS |
