NSN 2530-01-470-5919 S472195 0170, S4721950170, R950130
Product Details | AIR PRESSURE RELAY VALVE
2530-01-470-5919 A valve specifically designed for installation in an air brake system. It is used on trailers, long wheel base vehicles, as well as multiple rear axle vehicles. It serves to speed and synchronize the application and release of air operated service or parking brakes. It may include emergency features for trailer application.
Part Alternates: S472195 0170, S4721950170, R950130, R950170 , R95130, 472 195 017 0, 4721950170, 12422042, 2530-01-470-5919, 01-470-5919, 2530014705919, 014705919
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 28 DEC 1999 | 01-470-5919 | 36296 ( VALVE, RELAY, AIR PRESSURE ) |
Drawings & Photos | NSN 2530-01-470-5919
Demand History | NSN 2530-01-470-5919
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 472 195 017 0 | 2024-10-302 | 284 | DIBBS |
| 472 195 017 0 | 2024-10-291 | 284 | DIBBS |
| 472 195 017 0 | 2024-07-211 | 516 | DIBBS |
| 472 195 017 0 | 2024-06-179 | 165 | DIBBS |
| 472 195 017 0 | 2024-06-176 | 351 | DIBBS |
| R950130 | 2024-03-74 | 165 | DIBBS |
| R950130 | 2022-03-83 | 4 | United States |
| 2530-01-470-5919 | 2022-03-83 | 4 | United States |
| 2530-01-470-5919 | 2022-03-83 | 4 | United States |
| 2530-01-470-5919 | 2021-11-319 | 2 | United States |
| 2530-01-470-5919 | 2020-09-272 | 1 | DIBBS-RFPs |
| 2530-01-470-5919 | 2015-08-221 | 429 | DIBBS |
| 2530-01-470-5919 | 2015-07-203 | 1 | DIBBS-RFPs |
| 2530-01-470-5919 | 2015-04-113 | 900 | DIBBS |
| 2530-01-470-5919 | 2015-04-103 | 2103 | DIBBS |
| 2530-01-470-5919 | 2015-03-88 | 1047 | DIBBS |
| 2530-01-470-5919 | 2015-01-19 | 588 | DIBBS |
| 2530-01-470-5919 | 2014-07-205 | 184 | DIBBS |
| 2530-01-470-5919 | 2014-05-142 | 145 | DIBBS |
| 2530-01-470-5919 | 2013-06-175 | 133 | DIBBS |
| 2530-01-470-5919 | 2013-05-121 | 709 | DIBBS |
| 2530-01-470-5919 | 2013-03-77 | 331 | DIBBS |
| 2530-01-470-5919 | 2013-03-65 | 162 | DIBBS |
| 2530-01-470-5919 | 2012-12-349 | 110 | DIBBS |
| 2530-01-470-5919 | 2012-09-264 | 119 | DIBBS |
| 2530-01-470-5919 | 2012-08-215 | 131 | DIBBS |
| 2530-01-470-5919 | 2011-10-291 | 160 | DIBBS |
| 2530-01-470-5919 | 2011-08-222 | 367 | DIBBS |
Cross Reference | NSN 2530-01-470-5919
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12422042 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 472 195 017 0 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| R950130 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| R950170 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| R95130 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| S472195 0170 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-01-470-5919
Related Products | NSN 2530-01-470-5919
Technical Data | NSN 2530-01-470-5919
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY, QQ-A-200/3, ALLOY 2024 |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | G11 PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD SERIES DESIGNATOR | NPTF |
| FIRST END NOMINAL THREAD SIZE | 0.500 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SECOND END STYLE DESIGNATOR | G11 PLAIN |
| SECOND END NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD SERIES DESIGNATOR | NPTF |
| SECOND END NOMINAL THREAD SIZE | 0.500 INCHES |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | NOT IDENTICAL WITH FIRST OR SECOND END |
| THIRD END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |

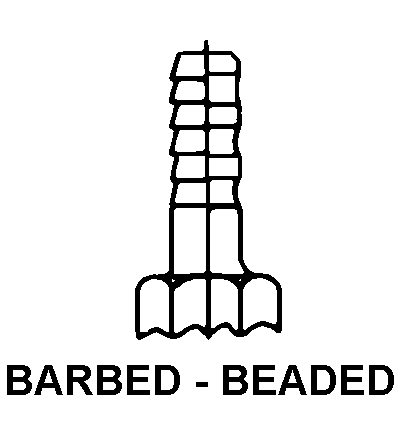

| THIRD END STYLE DESIGNATOR | K7 BARBED-BEADED |
| THIRD END OUTSIDE DIAMETER HOSE ACCOMMODATED | 15.0 MILLIMETERS NOMINAL |
| TEMP RATING | -50.0 DEG FAHRENHEIT 120.0 DEG FAHRENHEIT |
| SPECIAL FEATURES | OVERALL LENGTH 159.0 MM.; OVERALL HEIGHT 102.0 MM.; OVERALL WIDTH 71.5 MM.; 1ST AND 2ND END THREAD QUANTITY 14 |
| III END ITEM IDENTIFICATION | TACTICAL VEHICLES; 2320-01-447-6345 |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 12422042 |
Restrictions/Controls & Freight Information | NSN 2530-01-470-5919
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
