NSN 2530-01-420-1048 1905AS161, 1905AS1611, 1905AS161-1
Product Details | PNEUMATIC TIRE WHEEL RIM
2530-01-420-1048 A circular metal item designed to mount on a WHEEL, PNEUMATIC TIRE to support and retain the tire. It may be of one piece or it may include a RING, LOCK, AUTOMOTIVE WHEEL; RING, SIDE, AUTOMOTIVE WHEEL; or RING, SIDE AND LOCK, AUTOMOTIVE WHEEL. For items with provisions for mounting on a separate hub capable of turning on a central axis, see WHEEL (as modified).20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: 1905AS161, 1905AS1611, 1905AS161-1, 7861AN, 2530-01-420-1048, 01-420-1048, 2530014201048, 014201048
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 06 OCT 1995 | 01-420-1048 | 17940 ( RIM, WHEEL, PNEUMATIC TIRE ) |
Drawings & Photos | NSN 2530-01-420-1048
Demand History | NSN 2530-01-420-1048
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7861AN | 2022-03-90 | 22 | DIBBS |
| 7861AN | 2021-11-307 | 36 | DIBBS |
| 7861AN | 2021-10-280 | 18 | DIBBS |
| 7861AN | 2021-06-168 | 13 | DIBBS |
| 7861AN | 2020-06-177 | 13 | DIBBS |
| 2530-01-420-1048 | 2015-09-260 | 39 | DIBBS |
| 2530-01-420-1048 | 2013-11-308 | 47 | DIBBS |
| 2530-01-420-1048 | 2013-08-240 | 21 | DIBBS |
| 2530-01-420-1048 | 2013-06-169 | 17 | DIBBS |
| 2530-01-420-1048 | 2013-03-65 | 21 | DIBBS |
| 2530-01-420-1048 | 2013-01-07 | 30 | DIBBS |
| 2530-01-420-1048 | 2012-12-362 | 5 | DIBBS |
| 2530-01-420-1048 | 2012-11-318 | 4 | DIBBS |
| 2530-01-420-1048 | 2012-09-262 | 3 | DIBBS |
| 2530-01-420-1048 | 2012-08-243 | 5 | DIBBS |
| 2530-01-420-1048 | 2012-06-159 | 10 | DIBBS |
| 2530-01-420-1048 | 2012-05-150 | 7 | DIBBS |
| 2530-01-420-1048 | 2012-04-114 | 4 | DIBBS |
| 2530-01-420-1048 | 2011-06-164 | 15 | DIBBS |
| 2530-01-420-1048 | 2011-03-88 | 3 | DIBBS |
| 2530-01-420-1048 | 2007-03-70 | 3 | DIBBS |
Cross Reference | NSN 2530-01-420-1048
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1905AS161 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 1905AS161-1 | 1X179 | SPECTRUM SCIENCES & SOFTWARE, INC. |
| 1905AS161-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 1905AS161-1 | 3L5M5 | J&P KHAMKEN INDUSTRIES, INC. |
| 1905AS161-1 | 61420 | VER-VAL ENTERPRISES INC |
| 7861AN | 64197 | ADVANCE WHEEL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-01-420-1048
Technical Data | NSN 2530-01-420-1048
| Characteristic | Specifications |
|---|---|

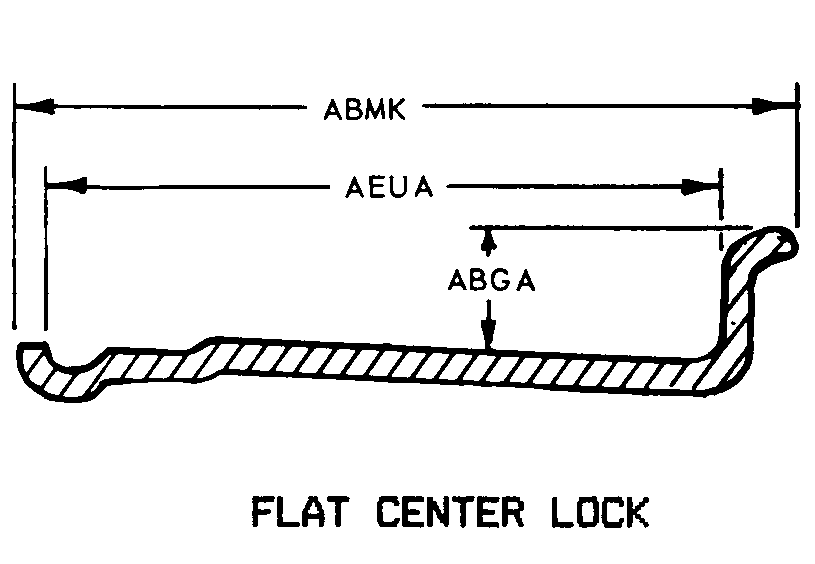

| STYLE DESIGNATOR | 42 FLAT CENTER LOCK |
| OVERALL WIDTH | 5.820 INCHES NOMINAL |
| EFFECTIVE WIDTH | 4.330 INCHES NOMINAL |
| SPLIT RIM FEATURE | NOT INCLUDED |
| INTEGRAL MOUNTING BOLT HOLE LUG | INCLUDED |
| TIRE RETAINING RING TYPE | SIDE-LOCK |
| MOUNTING HOLE QUANTITY | 5 |
| BOLT CIRCLE DIAMETER | 4.485 INCHES MINIMUM AND 4.515 INCHES MAXIMUM |
| VALVE HOLE SHAPE | ROUND |
| HOLE LOCATION | CENTER OF RIM |
| III END ITEM IDENTIFICATION | 1740-01-379-0754 |
| MANUFACTURERS CODE | 30003 |
| MFR SOURCE CONTROLLING REFERENCE | 1905AS161 |
Restrictions/Controls & Freight Information | NSN 2530-01-420-1048
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020020 | AUTO WHEEL PARTS ETC |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-01-420-1048
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
