Product Details | AIR PRESSURE RELAY VALVE
2530-01-363-7362 A valve specifically designed for installation in an air brake system. It is used on trailers, long wheel base vehicles, as well as multiple rear axle vehicles. It serves to speed and synchronize the application and release of air operated service or parking brakes. It may include emergency features for trailer application.
Part Alternates: 032018 , 032106, 2530-01-363-7362, 01-363-7362, 2530013637362, 013637362
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
25 | 04 SEP 1992 | 01-363-7362 | 36296 ( VALVE, RELAY, AIR PRESSURE ) |
Demand History | NSN 2530-01-363-7362
Part Number | Request Date | QTY | Origin |
---|---|---|---|
2530-01-363-7362 | 2009-10-303 | 1 | DIBBS |
2530-01-363-7362 | 2009-10-299 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 2530-01-363-7362
Related Products | NSN 2530-01-363-7362
Technical Data | NSN 2530-01-363-7362
Characteristic | Specifications |
---|---|

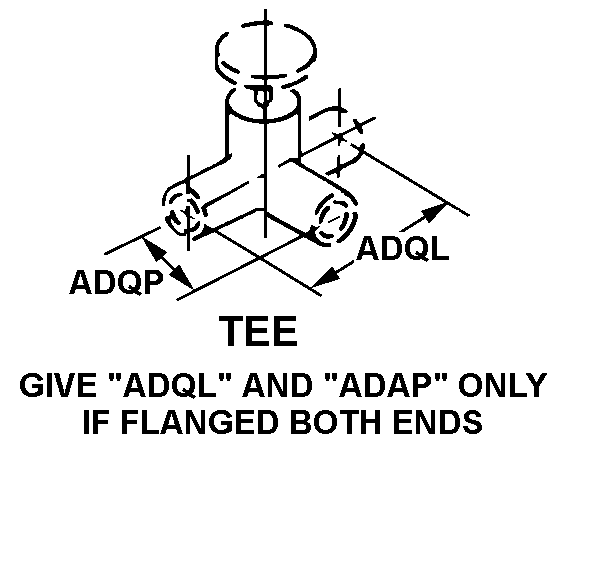

BODY STYLE | A11 TEE |
END CONNECTION QUANTITY | 3 |
FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
FIRST END STYLE DESIGNATOR | G11 PLAIN |
FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES |
FIRST END THREAD DIRECTION | RIGHT-HAND |
FIRST END THREAD SERIES DESIGNATOR | NPT |
FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
SECOND END CONNECTION TYPE | THREADED INTERNAL PIPE |
SECOND END STYLE DESIGNATOR | G11 PLAIN |
SECOND END NOMINAL PIPE SIZE ACCOMMODATED | 0.375 INCHES |
SECOND END THREAD DIRECTION | RIGHT-HAND |
SECOND END THREAD SERIES DESIGNATOR | NPT |
SECOND END NOMINAL THREAD SIZE | 0.625 INCHES |
THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH SECOND END |
TEMP ADJUSTABILITY | NOT ADJUSTABLE |
MEDIA FOR WHICH DESIGNED | AIR |
SPECIAL FEATURES | 1 INLET PORT,2 OUTLET PORTS,1 EXHAUST OUTLET,150.0 PSI MAX OPERATING PRESSURE; 2 0.344 MOUNTING HOLES 1.500 C TO C APART; INLET PORT HAS HEX WRENCHING FACILITY |
