NSN 2530-01-274-4457 ER173191, ER-17319-1, 12363402
Product Details | VEHICULAR POWER STEERING PUMP ASSEMBLY
2530-01-274-4457 An item designed to provide the source of hydraulic fluid from the reservoir and transmit it under pressure through the pressure line to the steering b ox. It may or may not include an integral fluid reservoir.
Part Alternates: ER173191, ER-17319-1, 12363402, 20510093, 2530-01-274-4457, 01-274-4457, 2530012744457, 012744457
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 09 MAR 1988 | 01-274-4457 | 36408 ( PUMP ASSEMBLY, POWER STEERING, VEHICULAR ) |

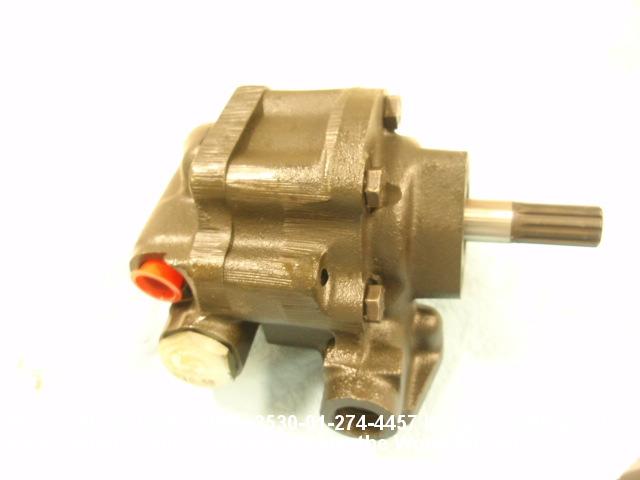

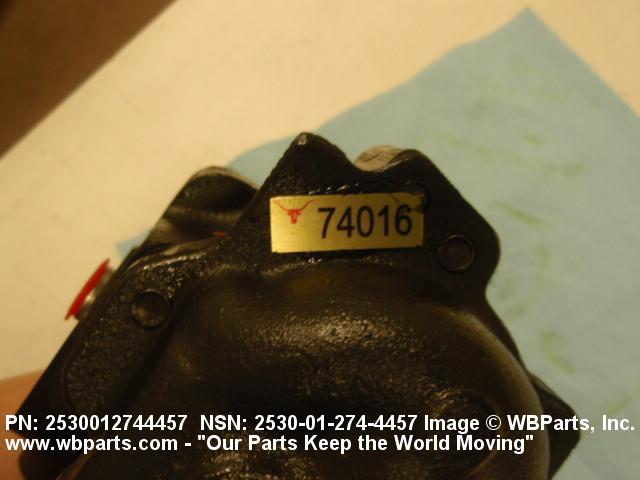

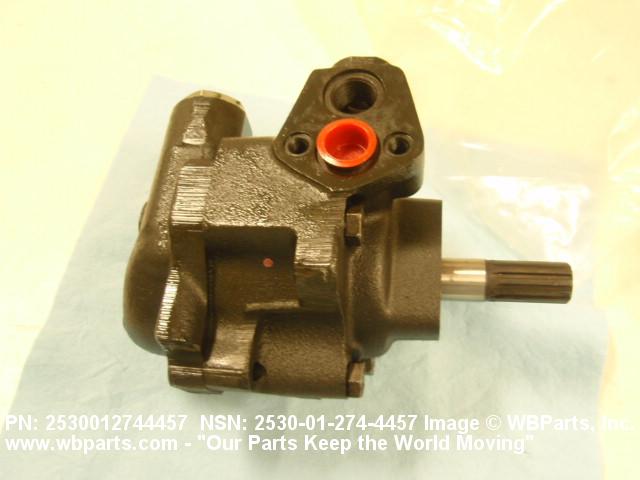

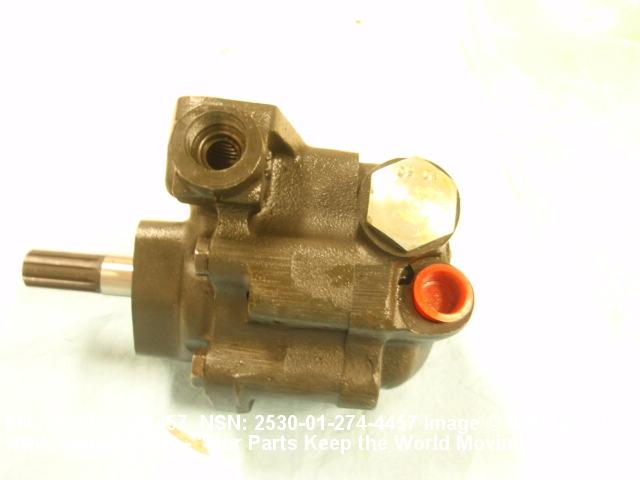

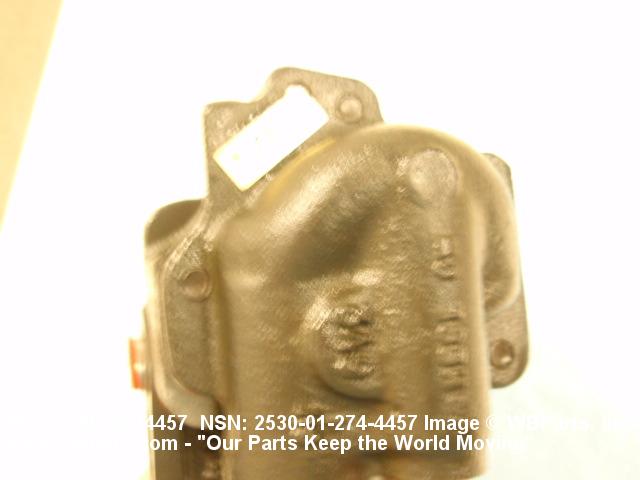

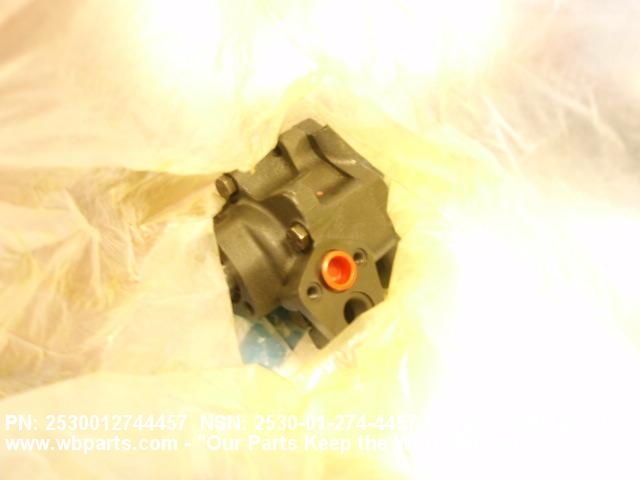

Drawings & Photos | NSN 2530-01-274-4457
Demand History | NSN 2530-01-274-4457
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-01-274-4457 | 2022-04-118 | 2 | US |
| 2530-01-274-4457 | 2021-10-288 | 5 | US |
| 2530-01-274-4457 | 2020-11-321 | 14 | United States |
| 2530-01-274-4457 | 2020-11-308 | 30 | YE |
| 2530-01-274-4457 | 2020-11-306 | 30 | GE |
| 2530-01-274-4457 | 2020-01-06 | 30 | US |
| 2530-01-274-4457 | 2019-10-304 | 65 | SA |
| 2530-01-274-4457 | 2019-09-273 | 30 | US |
| 2530-01-274-4457 | 2019-09-257 | 30 | SA |
| 2530-01-274-4457 | 2019-07-190 | 10 | YE |
| 2530-01-274-4457 | 2019-07-189 | 10 | YE |
| 2530-01-274-4457 | 2019-07-188 | 5 | YE |
| 2530-01-274-4457 | 2018-08-240 | 30 | US |
| 2530-01-274-4457 | 2018-06-180 | 30 | US |
| 2530-01-274-4457 | 2018-06-162 | 30 | US |
| 20510093 | 2018-05-138 | 30 | TR |
| 2530-01-274-4457 | 2018-02-37 | 30 | US |
| 2530-01-274-4457 | 2017-07-202 | 20 | US |
| 2530-01-274-4457 | 2014-02-48 | 2 | US |
| 2530-01-274-4457 | 2014-02-47 | 1 | Singapore |
| 2530-01-274-4457 | 2011-08-238 | 3 | Thailand |
| 2530-01-274-4457 | 2010-09-266 | 22 | United States |
| 2530-01-274-4457 | 2010-09-264 | 22 | US |
| ER173191 | 2010-09-264 | 1 | US |
| ER173191 | 2010-09-264 | 22 | US |
| 2530-01-274-4457 | 2009-12-343 | 1 | United States |
| 2530-01-274-4457 | 2009-12-336 | 1 | US |
| 2530-01-274-4457 | 2008-12-336 | 4 | United States |
| 2530-01-274-4457 | 2008-10-303 | 2 | United States |
Cross Reference | NSN 2530-01-274-4457
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12363402 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 20510093 | 47457 | HARSCO CORPORATION DBA B M Y WYNE WHELED VEHICLES DIV |
| ER-17319-1 | 0UKB6 | WINDWARD ENTERPRISES, LLC DBA WINDWARD ENTERPRISES |
| ER-17319-1 | 19954 | EATON CORP FLUID POWER OPNS MARSHALL DIV |
| ER-17319-1 | K5667 | DANA AUTOMOTIVE LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-01-274-4457
Related Products | NSN 2530-01-274-4457
Technical Data | NSN 2530-01-274-4457
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | C/O 1 PUMP,CAGE 78500 P/N ER-17215-17;1 RESERVOIR,CAGE 78500 P/N ER-28103;CONTINOUS 2000 RPM,OPER TEMP 149 OR 300 DEG F;RETURN LINE FLUID VELOCITY 10 FT/SEC;PRESSURE LINE FLUID VELOCITY 15FT/SEC;PUMP SHAFT SPLINE DATA:FLAT ROOT SIDE FIT,11 TEETH,PITCH 16/32,PITCH DIA 17.463(.6875) |
| III END ITEM IDENTIFICATION | 2320-01-230-0307 |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 12363402 |
Restrictions/Controls & Freight Information | NSN 2530-01-274-4457
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125820 | MOTORS/PUMPS HYDRAULIC ROTARY/PISTN |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-01-274-4457
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NT | M939 Family of Vehicles (Includes M939A1 and M939A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 2 | Support Vehicles and Equipment17, 23 except 2350, 25, 26, 28, 29, 4210, 4910, 6545 |
| Echelon Management Code | 6 | ICP/DSSCs Weapon system-oriented consumable items assigned to another Service/Agency for integrated materiel management which are managed by the ICP on a complex basis and which have not been decontrolled by the Integrated Materiel Manager. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9A | Navy-owned stocks of parts peculiar to combat and tactical vehicles of Army design Naval Inventory Control Point, Mechanicsburg |
| Issue Repair, or Requisition | R9 | Integrated Manager reparable item. Includes Defense Logistics Agency-managed items which are reportable in non-RFI condition to appropriate Defense Supply Center per NAVSUP instructions for return of excess material to DLA. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
