NSN 2530-01-158-3220 L20VT8039D11, L20VT8039E11, L24VT4108A11
Product Details | STEERING TIE ROD
2530-01-158-3220 An item designed to form a connection or link, either direct or indirectly between the steering knuckle arms. It is used to maintain alignment of the wheels and to facilitate steering of the vehicle. See also DRAG LINK, STEERING.
Part Alternates: L20VT8039D11, L20VT8039E11, L24VT4108A11, L24VTZ4108A11, L-24-VTZ-4108-A-11, 10500513, 10500513PT, 10500513-PT, 10627393, 2530-01-158-3220, 01-158-3220, 2530011583220, 011583220
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 20 JUL 1983 | 01-158-3220 | 19164 ( TIE ROD, STEERING ) |

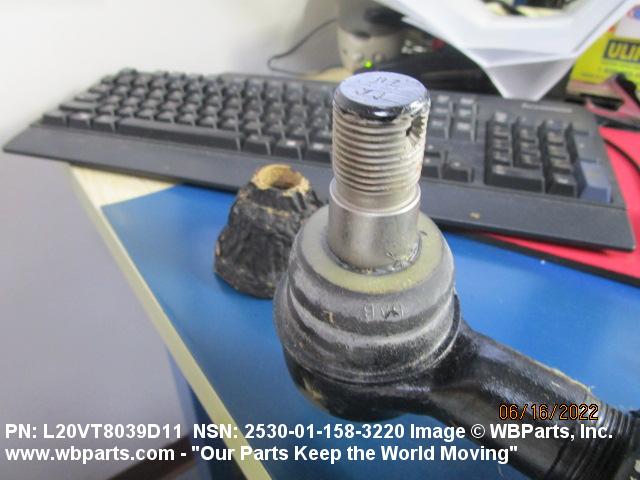

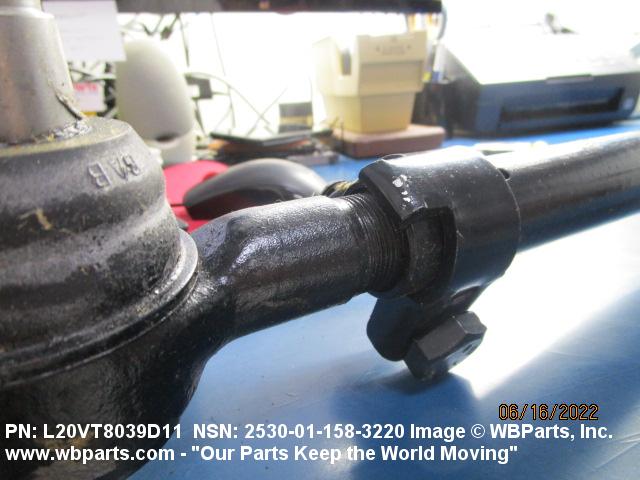

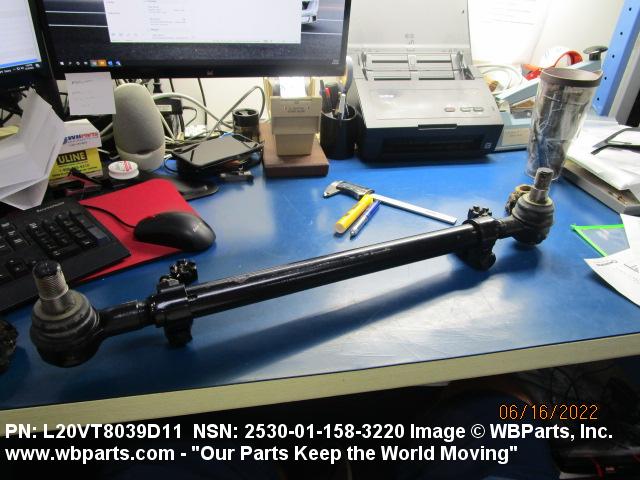

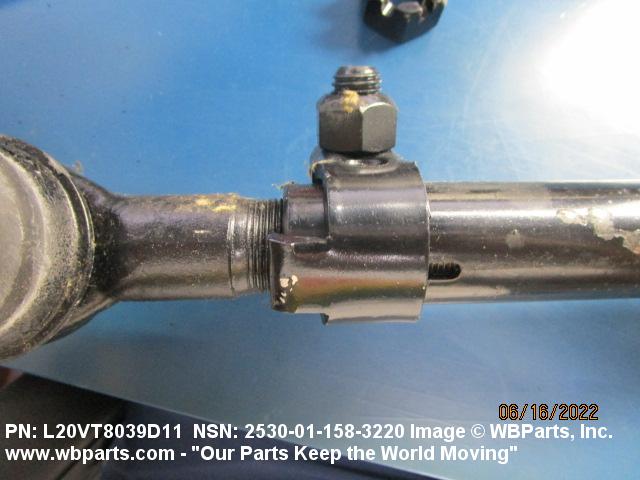

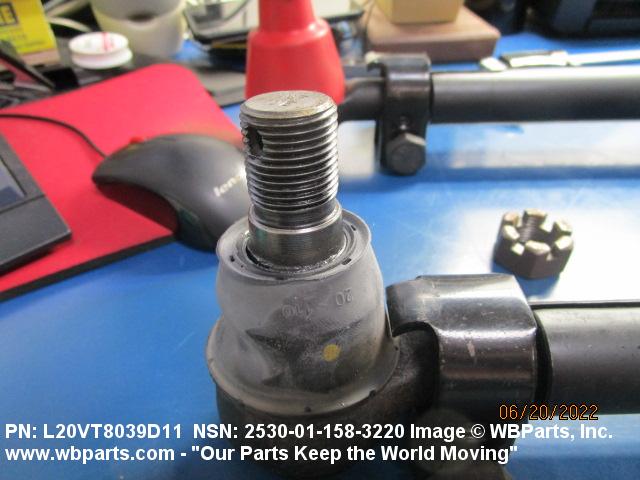

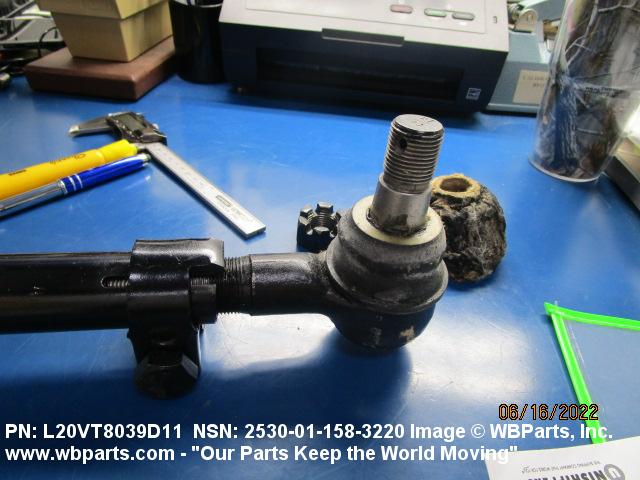

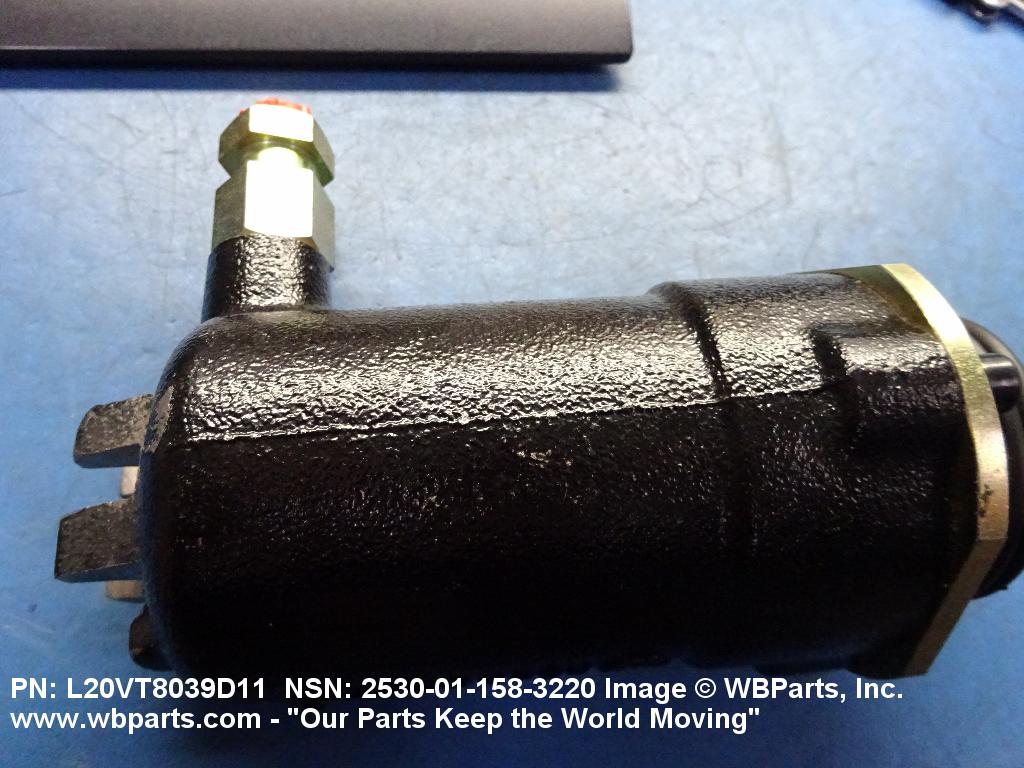

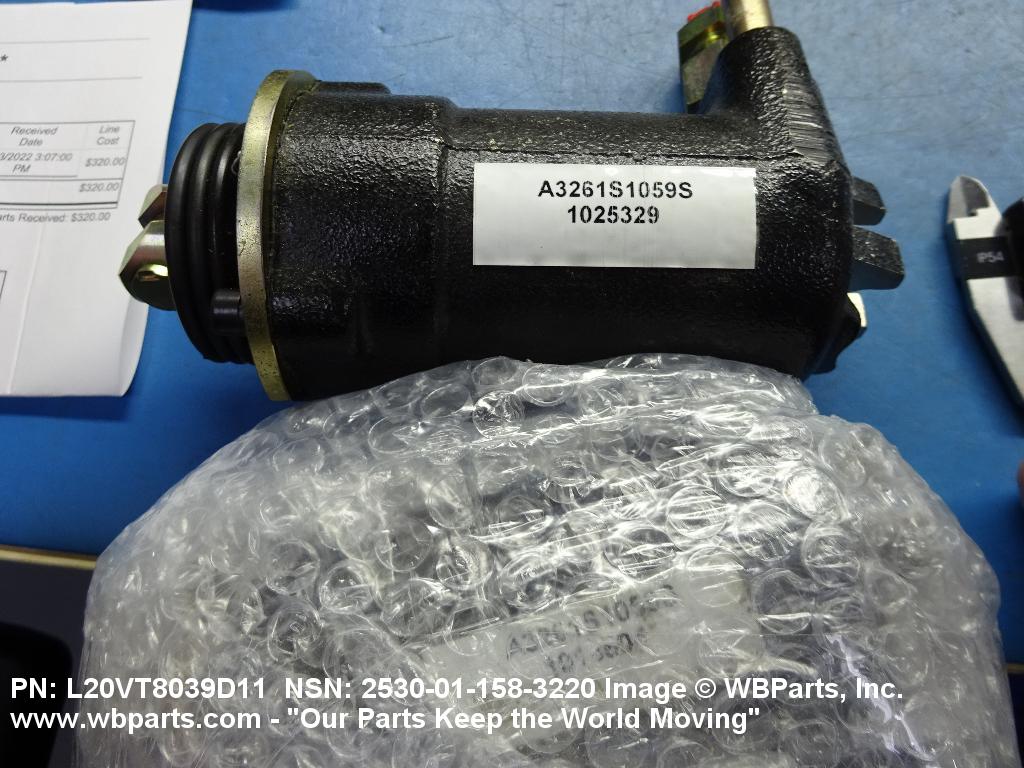

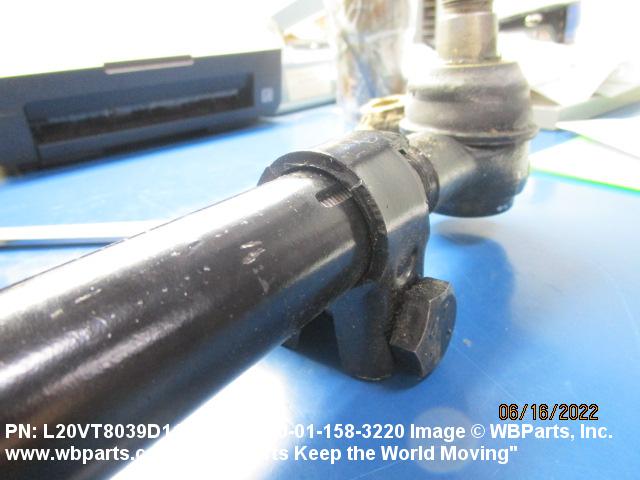

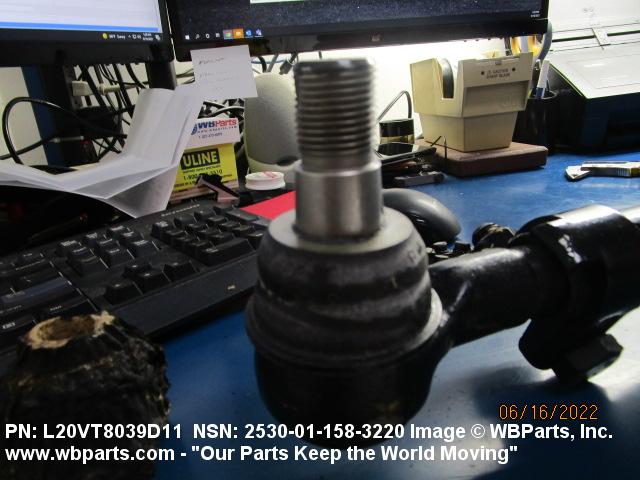

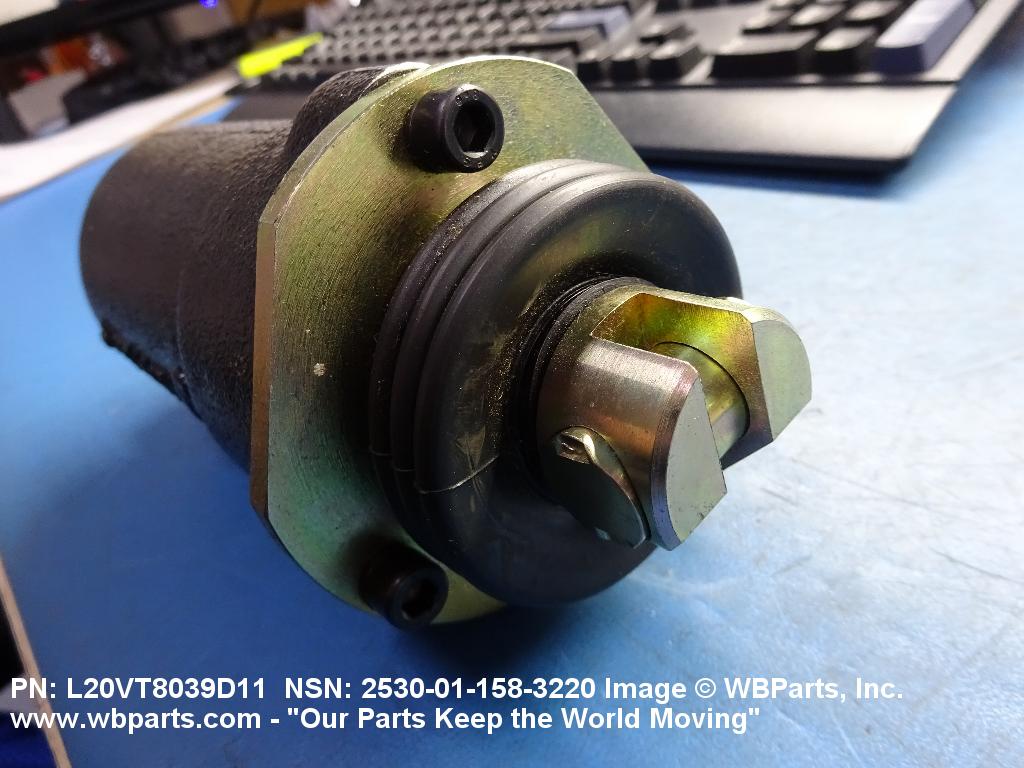

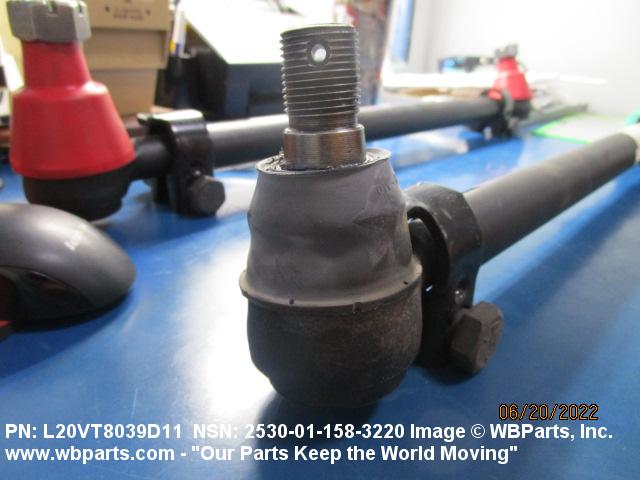

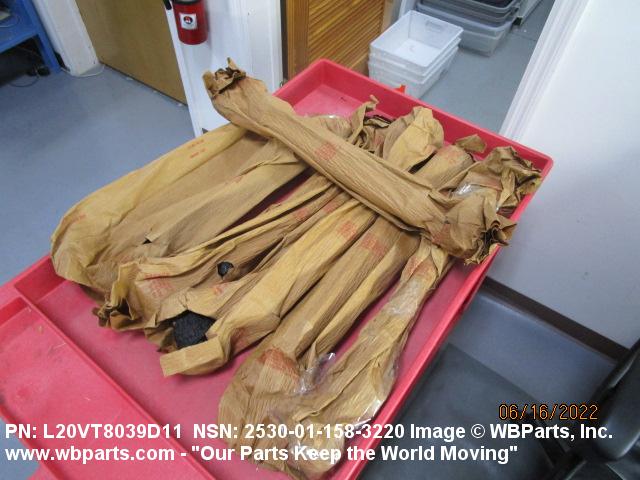

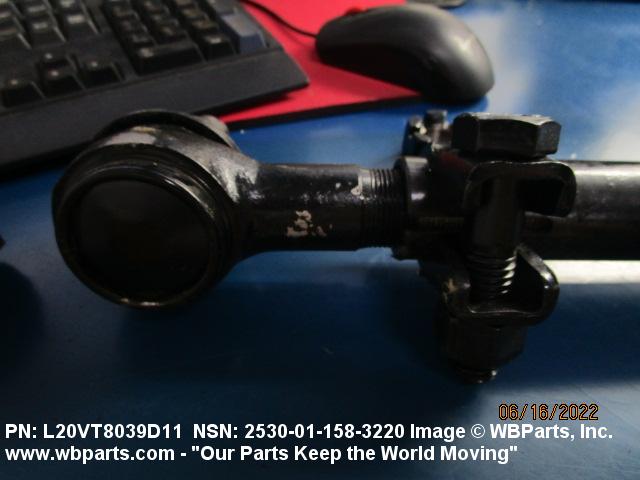

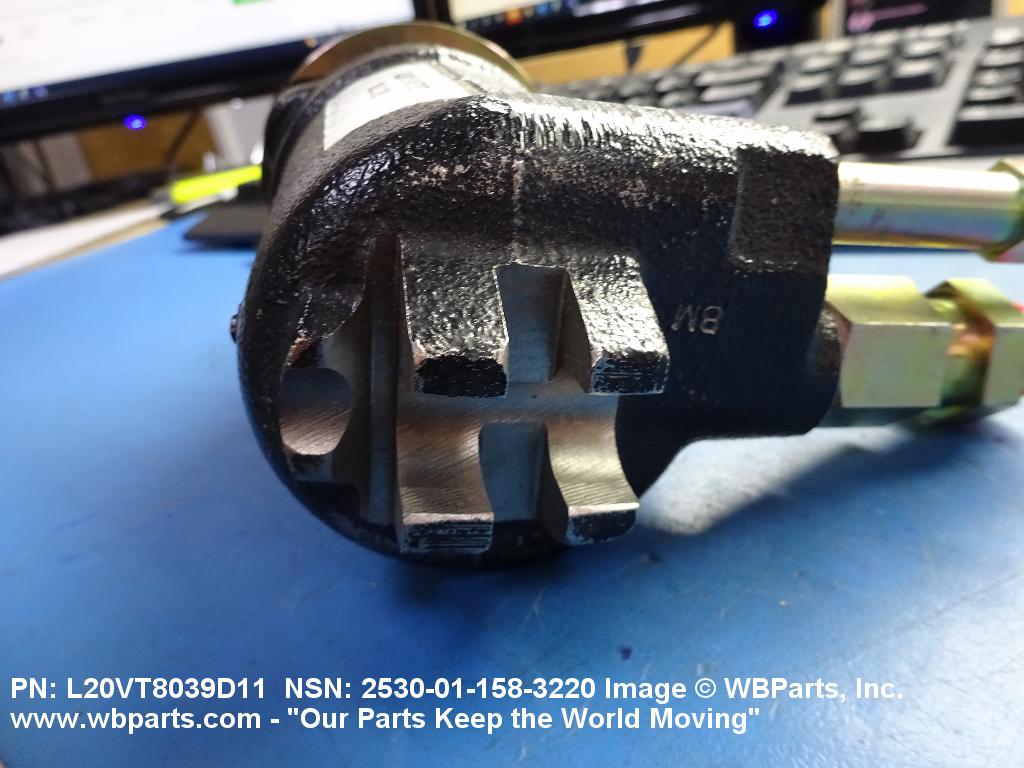

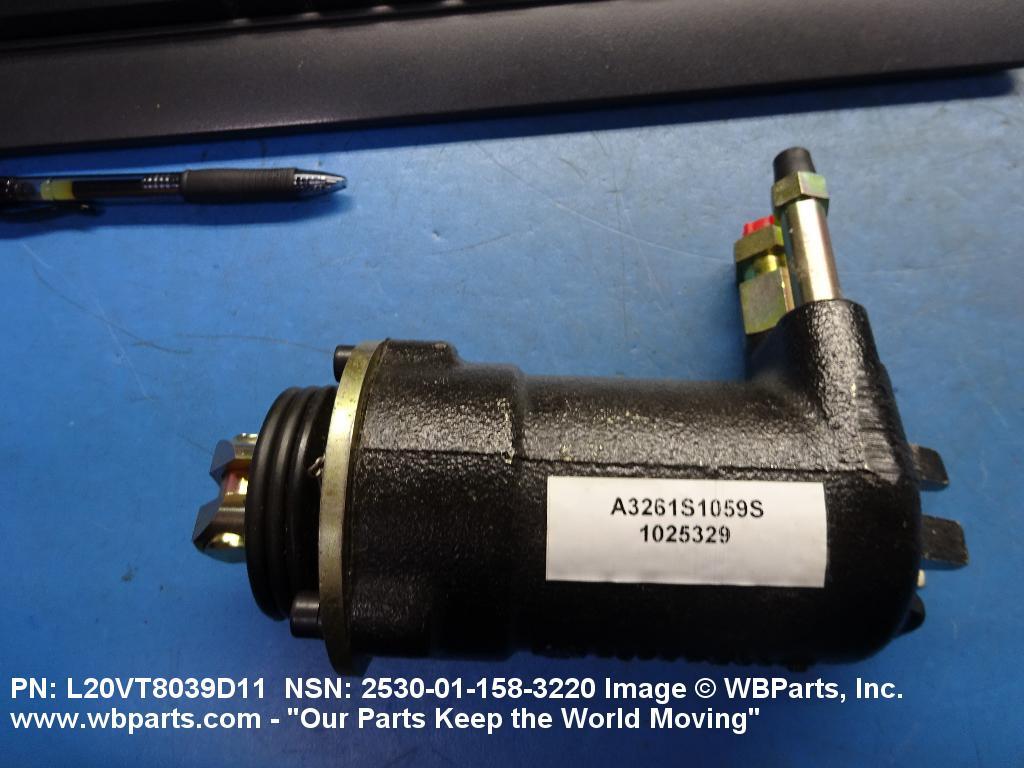

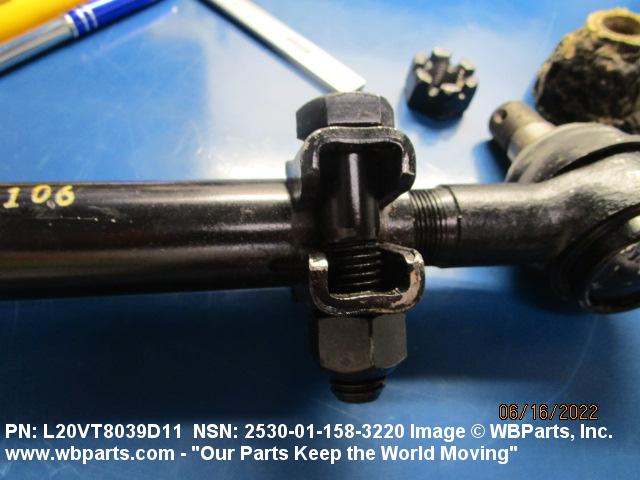

Drawings & Photos | NSN 2530-01-158-3220
Demand History | NSN 2530-01-158-3220
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10627393 | 2024-06-163 | 65 | DIBBS |
| L20VT8039E11 | 2024-06-163 | 65 | DIBBS |
| 10627393 | 2024-04-106 | 264 | DIBBS |
| L20VT8039E11 | 2024-04-106 | 264 | DIBBS |
| 10627393 | 2024-04-103 | 212 | DIBBS |
| L20VT8039E11 | 2024-04-103 | 212 | DIBBS |
| 10627393 | 2024-04-95 | 264 | DIBBS |
| L20VT8039E11 | 2024-04-95 | 264 | DIBBS |
| 10627393 | 2024-04-92 | 212 | DIBBS |
| L20VT8039E11 | 2024-04-92 | 212 | DIBBS |
| 10627393 | 2023-12-345 | 32 | DIBBS |
| L20VT8039E11 | 2023-12-345 | 32 | DIBBS |
| 10627393 | 2023-11-334 | 32 | DIBBS |
| L20VT8039E11 | 2023-11-334 | 32 | DIBBS |
| 10627393 | 2023-11-328 | 352 | DIBBS |
| L20VT8039E11 | 2023-11-328 | 352 | DIBBS |
| 10627393 | 2023-11-316 | 352 | DIBBS |
| L20VT8039E11 | 2023-11-316 | 352 | DIBBS |
| 10627393 | 2023-09-254 | 30 | DIBBS |
| L20VT8039E11 | 2023-09-254 | 30 | DIBBS |
| 10627393 | 2023-08-243 | 30 | DIBBS |
| L20VT8039E11 | 2023-08-243 | 30 | DIBBS |
| 10627393 | 2022-11-318 | 469 | DIBBS |
| L20VT8039E11 | 2022-11-318 | 469 | DIBBS |
| 2530-01-158-3220 | 2022-11-313 | 20 | United States |
| 2530-01-158-3220 | 2022-11-307 | 469 | US |
| 10627393 | 2022-11-307 | 469 | DIBBS |
| L20VT8039E11 | 2022-11-307 | 469 | DIBBS |
| 10627393 | 2022-10-304 | 336 | DIBBS |
| L20VT8039E11 | 2022-10-304 | 336 | DIBBS |
| 10627393 | 2022-10-289 | 336 | DIBBS |
| L20VT8039E11 | 2022-10-289 | 336 | DIBBS |
| 2530-01-158-3220 | 2022-09-272 | 20 | United States |
| 10627393 | 2022-08-234 | 229 | DIBBS |
| L20VT8039E11 | 2022-08-234 | 229 | DIBBS |
| 10627393 | 2022-08-219 | 229 | DIBBS |
| L20VT8039E11 | 2022-08-219 | 229 | DIBBS |
| 10627393 | 2022-08-213 | 489 | DIBBS |
| L20VT8039E11 | 2022-08-213 | 489 | DIBBS |
| 10627393 | 2022-07-201 | 489 | DIBBS |
| L20VT8039E11 | 2022-07-201 | 489 | DIBBS |
| 2530-01-158-3220 | 2022-07-188 | 20 | United States |
| 10627393 | 2022-06-178 | 334 | DIBBS |
| L20VT8039E11 | 2022-06-178 | 334 | DIBBS |
| 2530-01-158-3220 | 2022-06-167 | 24 | United States |
| 10627393 | 2022-06-167 | 334 | DIBBS |
| L20VT8039E11 | 2022-06-167 | 334 | DIBBS |
| 2530-01-158-3220 | 2022-05-136 | 20 | United States |
| 10627393 | 2022-02-54 | 40 | DIBBS |
| L20VT8039E11 | 2022-02-54 | 40 | DIBBS |
| 10627393 | 2022-02-53 | 40 | DIBBS |
| L20VT8039E11 | 2022-02-53 | 40 | DIBBS |
| 10627393 | 2022-02-45 | 278 | DIBBS |
| L20VT8039E11 | 2022-02-45 | 278 | DIBBS |
| 10627393 | 2022-01-30 | 278 | DIBBS |
| L20VT8039E11 | 2022-01-30 | 278 | DIBBS |
| 2530-01-158-3220 | 2022-01-26 | 4 | Peru |
| 10627393 | 2022-01-13 | 278 | DIBBS |
| L20VT8039E11 | 2022-01-13 | 278 | DIBBS |
| 10627393 | 2021-12-350 | 24 | DIBBS |
| L20VT8039E11 | 2021-12-350 | 24 | DIBBS |
| 10627393 | 2021-12-348 | 98 | DIBBS |
| L20VT8039E11 | 2021-12-348 | 98 | DIBBS |
| 10627393 | 2021-10-290 | 98 | DIBBS |
| L20VT8039E11 | 2021-10-290 | 98 | DIBBS |
| 10627393 | 2021-07-190 | 331 | DIBBS |
| L20VT8039E11 | 2021-07-190 | 331 | DIBBS |
| 10627393 | 2021-06-175 | 331 | DIBBS |
| L20VT8039E11 | 2021-06-175 | 331 | DIBBS |
| 10627393 | 2020-06-159 | 231 | DIBBS |
| L20VT8039E11 | 2020-06-159 | 231 | DIBBS |
| 10627393 | 2020-04-121 | 92 | DIBBS |
| L20VT8039E11 | 2020-04-121 | 92 | DIBBS |
| 10627393 | 2019-03-73 | 4 | DIBBS |
| L20VT8039E11 | 2019-03-73 | 4 | DIBBS |
| 10627393 | 2019-03-66 | 47 | DIBBS |
| L20VT8039E11 | 2019-03-66 | 47 | DIBBS |
| 10627393 | 2019-02-52 | 81 | DIBBS |
| L20VT8039E11 | 2019-02-52 | 81 | DIBBS |
| 2530-01-158-3220 | 2018-12-343 | 142 | DIBBS |
| 2530-01-158-3220 | 2018-11-312 | 217 | DIBBS |
| 2530-01-158-3220 | 2018-11-305 | 114 | DIBBS |
| 2530-01-158-3220 | 2018-09-263 | 154 | DIBBS |
| 2530-01-158-3220 | 2018-05-151 | 86 | DIBBS |
| 2530-01-158-3220 | 2017-09-247 | 122 | DIBBS |
| 2530-01-158-3220 | 2017-06-163 | 140 | DIBBS |
| 2530-01-158-3220 | 2017-05-137 | 126 | DIBBS |
| 2530-01-158-3220 | 2016-09-273 | 228 | DIBBS |
| 2530-01-158-3220 | 2015-12-340 | 272 | DIBBS |
| 2530-01-158-3220 | 2015-09-253 | 343 | DIBBS |
| 2530-01-158-3220 | 2015-08-228 | 67 | DIBBS |
| 2530-01-158-3220 | 2015-04-112 | 86 | DIBBS |
| 2530-01-158-3220 | 2015-01-29 | 167 | DIBBS |
| 2530-01-158-3220 | 2014-05-146 | 150 | DIBBS |
| 2530-01-158-3220 | 2013-08-242 | 116 | DIBBS |
| 2530-01-158-3220 | 2013-07-190 | 239 | DIBBS |
| 2530-01-158-3220 | 2013-06-157 | 95 | DIBBS |
| 2530-01-158-3220 | 2013-05-142 | 0 | DIBBS |
| 2530-01-158-3220 | 2013-05-140 | 61 | DIBBS |
| 2530-01-158-3220 | 2013-03-67 | 108 | DIBBS |
| 2530-01-158-3220 | 2012-09-248 | 90 | DIBBS |
| 2530-01-158-3220 | 2012-03-81 | 184 | DIBBS |
| 2530-01-158-3220 | 2012-01-04 | 128 | DIBBS |
| 2530-01-158-3220 | 2011-11-305 | 86 | DIBBS |
| 2530-01-158-3220 | 2011-10-297 | 83 | DIBBS |
Cross Reference | NSN 2530-01-158-3220
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10500513 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 10500513-PT | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 10627393 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| L-24-VTZ-4108-A-11 | 98349 | TRW INC TRW STEERING AND SUSPENSION DIV |
| L20VT8039D11 | 98349 | TRW INC TRW STEERING AND SUSPENSION DIV |
| L20VT8039E11 | 98349 | TRW INC TRW STEERING AND SUSPENSION DIV |
| L24VT4108A11 | 98349 | TRW INC TRW STEERING AND SUSPENSION DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-01-158-3220
Related Products | NSN 2530-01-158-3220
Technical Data | NSN 2530-01-158-3220
| Characteristic | Specifications |
|---|---|
| SHAPE | STRAIGHT |
| CONSTRUCTION | TUBULAR |
| BODY DIAMETER | 1.500 INCHES NOMINAL |
| END CONNECTION TYPE | BALL STUD |
| DISTANCE FROM BALL STUD CENTERLINE TO THREADED END | 3.250 INCHES NOMINAL |
| STUD THREAD SIZE | 7/8-14 |
| STUD END THREAD SERIES DESIGNATOR | UNF |
| STUD END THREAD DIRECTION | RIGHT-HAND |
| ADJUSTABILITY | ADJUSTABLE |
| CENTER TO CENTER DISTANCE BETWEEN CONNECTING CENTERS | 24.490 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | GMC OF CANADA DIESEL DIV,LIGHT ARMORED VEHICLE,MDL 25 MC |
Restrictions/Controls & Freight Information | NSN 2530-01-158-3220
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019160 | AUTO PARTS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-01-158-3220
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | O | Reparable item. When uneconomically reparable, condemn and dispose of at organization level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
