Product Details | BALL SOCKET SEAT
2530-01-155-7546 A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE.20512400038Optical Sighting and Ranging Equipment12900036Miscellaneous Fire Control Equipment25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components53400020Hardware, Commercial
Part Alternates: 11621578, 2530-01-155-7546, 01-155-7546, 2530011557546, 011557546
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 15 JUN 1983 | 01-155-7546 | 19451 ( SEAT, BALL SOCKET ) |

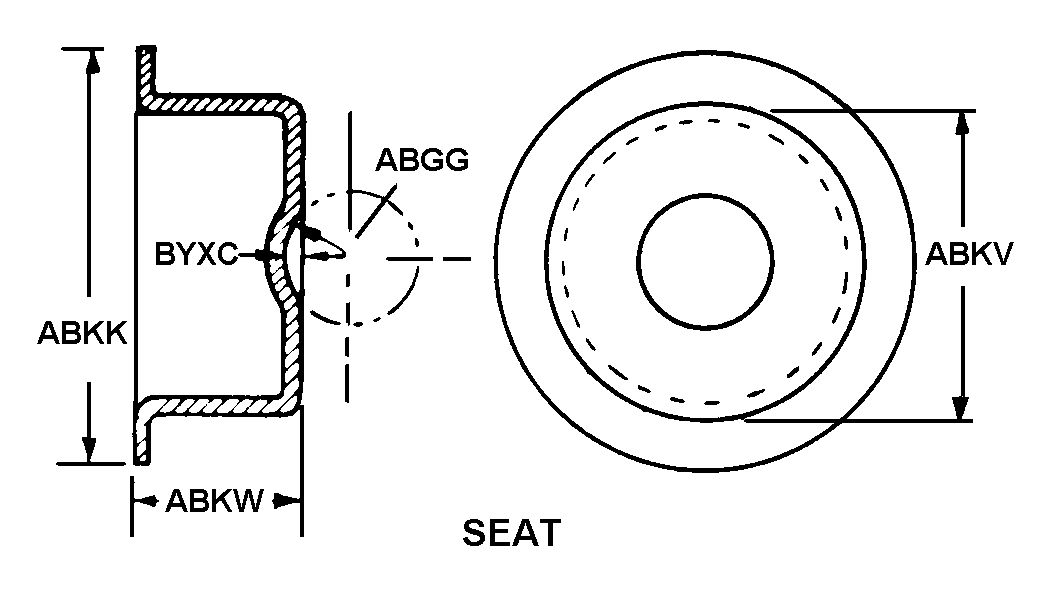

Drawings & Photos | NSN 2530-01-155-7546
Cross Reference | NSN 2530-01-155-7546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11621578 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
