NSN 2530-01-118-2060 4875297, 48752976, 4875297-6
Product Details | PNEUMATIC TIRE WHEEL RIM
2530-01-118-2060 A circular metal item designed to mount on a WHEEL, PNEUMATIC TIRE to support and retain the tire. It may be of one piece or it may include a RING, LOCK, AUTOMOTIVE WHEEL; RING, SIDE, AUTOMOTIVE WHEEL; or RING, SIDE AND LOCK, AUTOMOTIVE WHEEL. For items with provisions for mounting on a separate hub capable of turning on a central axis, see WHEEL (as modified).20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: 4875297, 48752976, 4875297-6, 74875297, 2530-01-118-2060, 01-118-2060, 2530011182060, 011182060
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 29 AUG 1981 | 01-118-2060 | 17940 ( RIM, WHEEL, PNEUMATIC TIRE ) |
Drawings & Photos | NSN 2530-01-118-2060
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-01-118-2060
Technical Data | NSN 2530-01-118-2060
| Characteristic | Specifications |
|---|---|

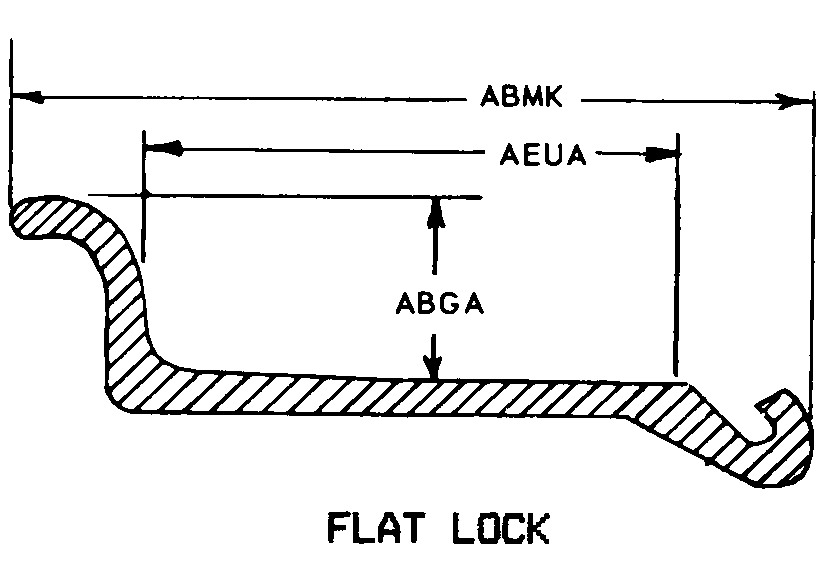

| STYLE DESIGNATOR | 30 FLAT LOCK |
| SPLIT RIM FEATURE | NOT INCLUDED |
| INTEGRAL MOUNTING BOLT HOLE LUG | NOT INCLUDED |
| VALVE HOLE SHAPE | SLOTTED |
Restrictions/Controls & Freight Information | NSN 2530-01-118-2060
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020020 | AUTO WHEEL PARTS ETC |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-01-118-2060
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
