NSN 2530-01-083-7538 MA36320001, MA363-20001, R49210
Product Details | PNEUMATIC TIRE WHEEL
2530-01-083-7538 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.202253000002610000000
Part Alternates: MA36320001, MA363-20001, R49210, R64920, 30001782, 592517C1, 5934518, 5939583, 8024510M, 8024-5-10M, 2530-01-083-7538, 01-083-7538, 2530010837538, 010837538
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 29 SEP 1979 | 01-083-7538 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
Drawings & Photos | NSN 2530-01-083-7538
Demand History | NSN 2530-01-083-7538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-01-083-7538 | 2018-10-277 | 8 | DIBBS |
| 2530-01-083-7538 | 2015-05-135 | 9 | DIBBS |
| 2530-01-083-7538 | 2015-05-123 | 9 | DIBBS |
| 2530-01-083-7538 | 2015-01-14 | 8 | DIBBS |
| 2530-01-083-7538 | 2014-12-362 | 8 | DIBBS |
| 2530-01-083-7538 | 2014-12-348 | 8 | DIBBS |
Cross Reference | NSN 2530-01-083-7538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30001782 | 017X3 | OTR WHEEL ENGINEERING, INC. DIV OTR WHEEL ENGINEERING |
| 592517C1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 5934518 | 34623 | AM GENERAL, LLC |
| 5939583 | 34623 | AM GENERAL, LLC |
| 8024-5-10M | 0V7X2 | JKM MARJEAN ENTERPRISES |
| MA363-20001 | 34623 | AM GENERAL, LLC |
| R49210 | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| R64920 | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-01-083-7538
Related Products | NSN 2530-01-083-7538
Technical Data | NSN 2530-01-083-7538
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 24.000 INCHES |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONVEX |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 6.875 INCHES NOMINAL |
| LIGHTENING HOLE | INCLUDED |
| LIGHTENING HOLE QUANTITY | 5 |
| LIGHTENING HOLE HUB CAP MOUNTING FEATURE | NOT INCLUDED |
| DESIGN TYPE | DEMOUNTABLE RIM |
| RIM | NOT INCLUDED |
| WHEEL/SPIDER OUTSIDE DIAMETER | ANY ACCEPTABLE |
| WHEEL WIDTH AT OUTSIDE DIAMETER | 8.000 INCHES NOMINAL |
| RIM FASTENING THREADED FACILITY | NOT INCLUDED |
| RING TYPE FOR WHICH DESIGNED | SIDE-LOCK |
| RING | NOT INCLUDED |

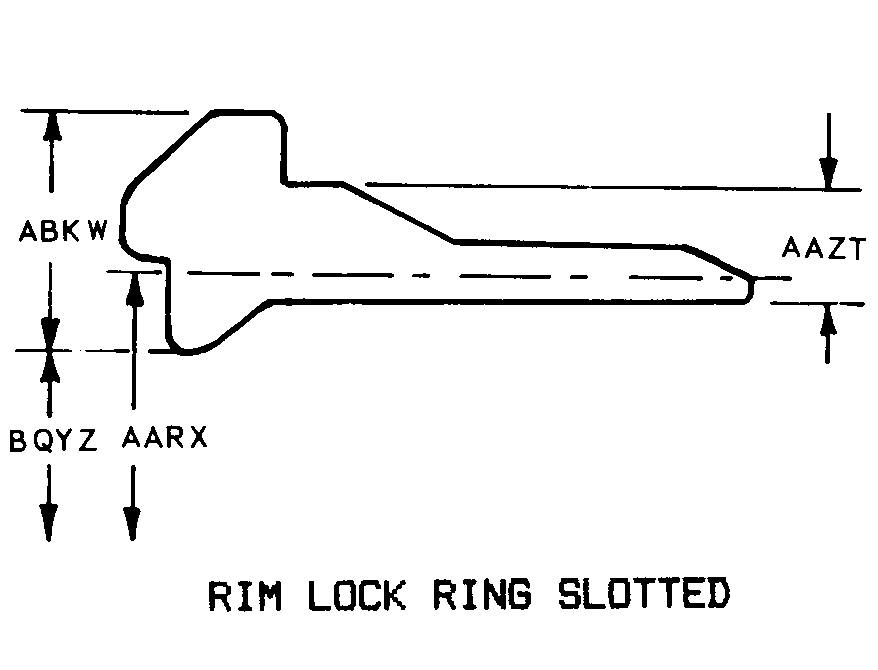

| RING STYLE | C7 RIM LOCK RING SLOTTED |
| INSIDE DIAMETER | ANY ACCEPTABLE |
| SLOT DEPTH | ANY ACCEPTABLE |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| INSIDE CIRCUMFERENCE | ANY ACCEPTABLE |
| BOLT/STUD MOUNTING FACILITY | NOT INCLUDED |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2530-01-083-7538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197592 | WHEELS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
