NSN 2530-01-051-9453 478202, 47820-2, 6609GX
Product Details | PNEUMATIC TIRE WHEEL
2530-01-051-9453 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.202253000002610000000
Part Alternates: 478202, 47820-2, 6609GX, 2530-01-051-9453, 01-051-9453, 2530010519453, 010519453
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 07 DEC 1977 | 01-051-9453 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
Drawings & Photos | NSN 2530-01-051-9453
Demand History | NSN 2530-01-051-9453
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-01-051-9453 | 2024-01-28 | 50 | SA |
| 2530-01-051-9453 | 2018-05-131 | 25 | DIBBS |
| 2530-01-051-9453 | 2018-05-131 | 25 | DIBBS |
| 2530-01-051-9453 | 2018-04-120 | 25 | DIBBS |
| 2530-01-051-9453 | 2018-04-120 | 25 | DIBBS |
| 2530-01-051-9453 | 2015-10-303 | 30 | DIBBS |
| 2530-01-051-9453 | 2015-10-291 | 30 | DIBBS |
| 2530-01-051-9453 | 2015-03-60 | 40 | DIBBS |
| 2530-01-051-9453 | 2015-01-13 | 30 | DIBBS |
| 2530-01-051-9453 | 2014-09-272 | 10 | DIBBS |
| 478202 | 2014-03-84 | 30 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-01-051-9453
Related Products | NSN 2530-01-051-9453
Technical Data | NSN 2530-01-051-9453
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 24.000 INCHES |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONVEX |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 8.875 INCHES NOMINAL |
| LIGHTENING HOLE | NOT INCLUDED |
| DESIGN TYPE | INTEGRAL RIM |
| GROOVE DEPTH | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 12.500 INCHES NOMINAL |
| EFFECTIVE WIDTH | 8.000 INCHES NOMINAL |
| RING TYPE FOR WHICH DESIGNED | SIDE |
| RING | NOT INCLUDED |

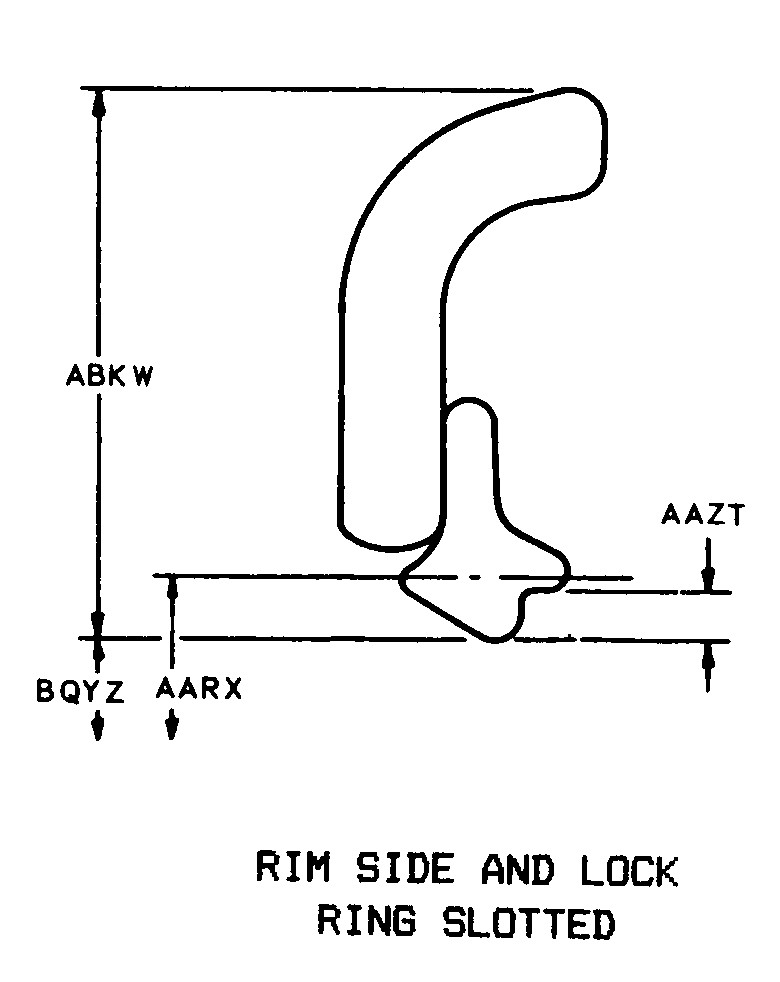

| RING STYLE | E4 RIM SIDE AND LOCK RING SLOTTED |
| INSIDE DIAMETER | 13.875 INCHES NOMINAL |
| SLOT DEPTH | 0.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.250 INCHES NOMINAL |
| INSIDE CIRCUMFERENCE | 75.147 INCHES MINIMUM AND 75.227 INCHES MAXIMUM |
| BOLT/STUD MOUNTING FACILITY | INCLUDED |
| MOUNTING FACILITY TYPE AND QUANTITY | 10 BOLT HOLE |
| MOUNTING FACILITY BOLT CIRCLE DIAMETER | 13.812 INCHES NOMINAL |
| VALVE HOLE SHAPE | SLOTTED |
| MOUNTING TYPE FOR WHICH DESIGNED | DUAL TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| PILOT HOLE DIAMETER | 10.672 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 10 |
| MOUNTING HOLE DIAMETER | 1.312 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 13.812 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2530-01-051-9453
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197592 | WHEELS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-01-051-9453
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
