Product Details | HYDRAULIC BRAKE MASTER CYLINDER PUSH ROD

2530-01-033-2305 An item in the form of a rod with one end designed to mate with the socket of a PISTON, HYDRAULIC BRAKE, MASTER CYLINDER, the other end designed to connect with various forms of rod connectors.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components

Part Alternates: 505133, 5051-33, 2530-01-033-2305, 01-033-2305, 2530010332305, 010332305

Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components

Supply Group (FSG) NSN Assign. NIIN
25 31 DEC 1976 01-033-2305

Drawings & Photos | NSN 2530-01-033-2305


Cross Reference | NSN 2530-01-033-2305

Part Number Cage Code Manufacturer
5051-33 07443 LANDOLL CORPORATION DBA LANDOLL CORPORATION DREXEL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2530-01-033-2305

Technical Data | NSN 2530-01-033-2305

Characteristic Specifications
MATERIAL STEEL

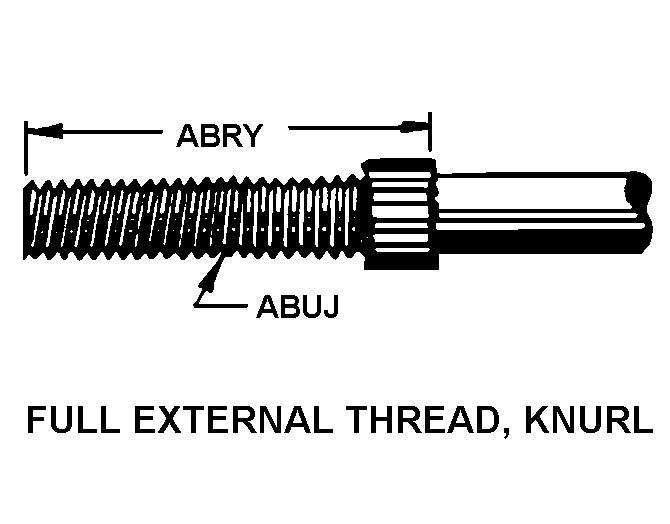

LINK ROD CONNECTING END STYLE B8 FULL EXTERNAL THREAD, KNURL
LENGTH 1.625 INCHES NOMINAL
THREAD SIZE 3/8-24
PISTON SOCKET END STYLE C2 SPERICAL
ROD DIAMETER 0.375 INCHES NOMINAL
OVERALL LENGTH 5.375 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 2530-01-033-2305

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 586 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2530-01-033-2305

Category Code Description
Cognizance Codes9CNavy-owned stocks of defense construction material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
