NSN 2530-00-938-0709 B6020LWD, 102832R1, 102832R2
Product Details | PNEUMATIC TIRE WHEEL RIM
2530-00-938-0709 A circular metal item designed to mount on a WHEEL, PNEUMATIC TIRE to support and retain the tire. It may be of one piece or it may include a RING, LOCK, AUTOMOTIVE WHEEL; RING, SIDE, AUTOMOTIVE WHEEL; or RING, SIDE AND LOCK, AUTOMOTIVE WHEEL. For items with provisions for mounting on a separate hub capable of turning on a central axis, see WHEEL (as modified).20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: B6020LWD, 102832R1, 102832R2, 2530-00-938-0709, 00-938-0709, 2530009380709, 009380709
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-938-0709 | 17940 ( RIM, WHEEL, PNEUMATIC TIRE ) |

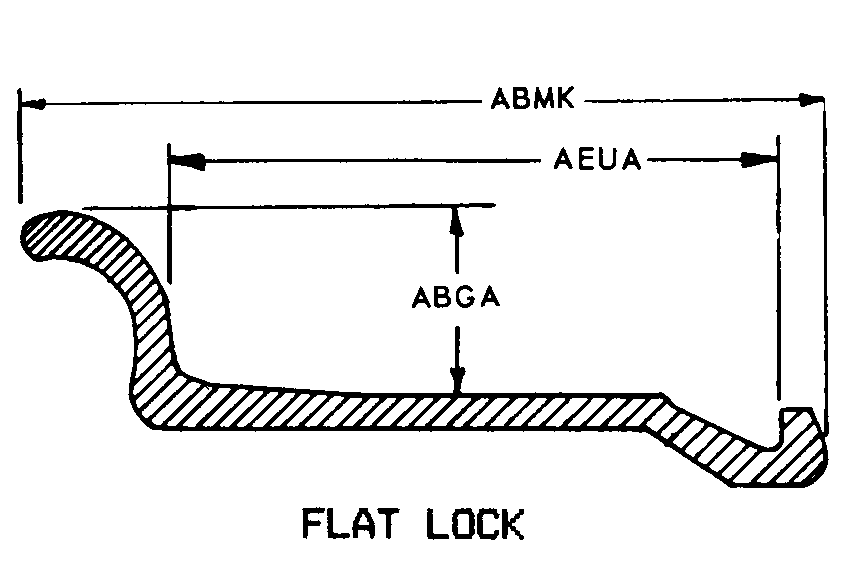

Drawings & Photos | NSN 2530-00-938-0709
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-938-0709
Technical Data | NSN 2530-00-938-0709
| Characteristic | Specifications |
|---|---|
| TIRE DIAMETER FOR WHICH DESIGNED | 20.000 INCHES |
| STYLE DESIGNATOR | 26 FLAT LOCK |
| GROOVE DEPTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 6.750 INCHES NOMINAL |
| EFFECTIVE WIDTH | 6.000 INCHES NOMINAL |
| SPLIT RIM FEATURE | NOT INCLUDED |
| INTEGRAL MOUNTING BOLT HOLE LUG | NOT INCLUDED |
| VALVE HOLE SHAPE | SLOTTED |
| HOLE LOCATION | OD OF RIM |
Restrictions/Controls & Freight Information | NSN 2530-00-938-0709
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
