NSN 2530-00-908-1538 106678, 00-908-1538, 009081538
Product Details | DIRT AND LIQUID DEFLECTOR
2530-00-908-1538 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.21516150056Helicopter Rotor Blades, Drive Mechanisms and Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment16800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25400035Vehicular Furniture and Accessories28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components29950042Miscellaneous Engine Accessories, Aircraft43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps49300041Lubrication and Fuel Dispensing Equipment53400020Hardware, Commercial
Part Alternates: 106678, 2530-00-908-1538, 00-908-1538, 2530009081538, 009081538
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01-JAN-60 | 00-908-1538 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
Drawings & Photos | NSN 2530-00-908-1538
Demand History | NSN 2530-00-908-1538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-908-1538 | 2013-04-95 | 2 | DIBBS |
| 2530-00-908-1538 | 2013-04-91 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-908-1538
Technical Data | NSN 2530-00-908-1538
| Characteristic | Specifications |
|---|---|

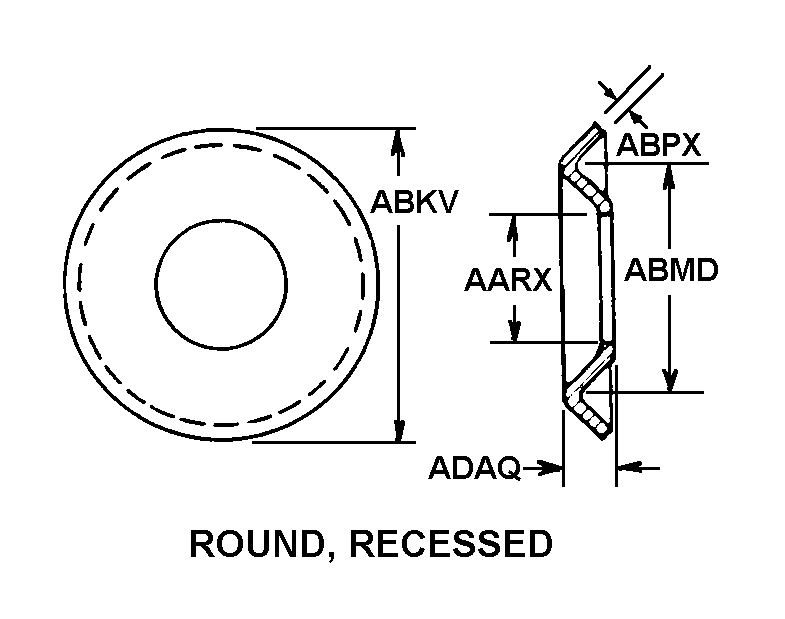

| STYLE DESIGNATOR | 22 ROUND, RECESSED |
| INSIDE DIAMETER | 7.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 11.235 INCHES MINIMUM AND 11.245 INCHES MAXIMUM |
| RECESS DIAMETER | 10.750 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.024 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
| BODY LENGTH | 0.625 INCHES NOMINAL |
| MATERIAL | STEEL, FED STD 66, AISI/SAE 1010 |
| III FSC APPLICATION DATA | VEHICULAR AXLE |
| MANUFACTURERS CODE | 77237 |
| DESIGN CONTROL REFERENCE | 106678 |
Restrictions/Controls & Freight Information | NSN 2530-00-908-1538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
