NSN 2530-00-848-0667 885729, 00-848-0667, 008480667
Product Details | AUTOMOTIVE WHEEL LOCK RING
2530-00-848-0667 A one-piece metal device designed to fit a matching groove in the outer edge of a wheel or wheel rim for holding the side ring in position. It may be split.
Part Alternates: 885729, 2530-00-848-0667, 00-848-0667, 2530008480667, 008480667
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 30 DEC 1966 | 00-848-0667 | 10968 ( RING, LOCK, AUTOMOTIVE WHEEL ) |
Drawings & Photos | NSN 2530-00-848-0667
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-848-0667
Technical Data | NSN 2530-00-848-0667
| Characteristic | Specifications |
|---|---|

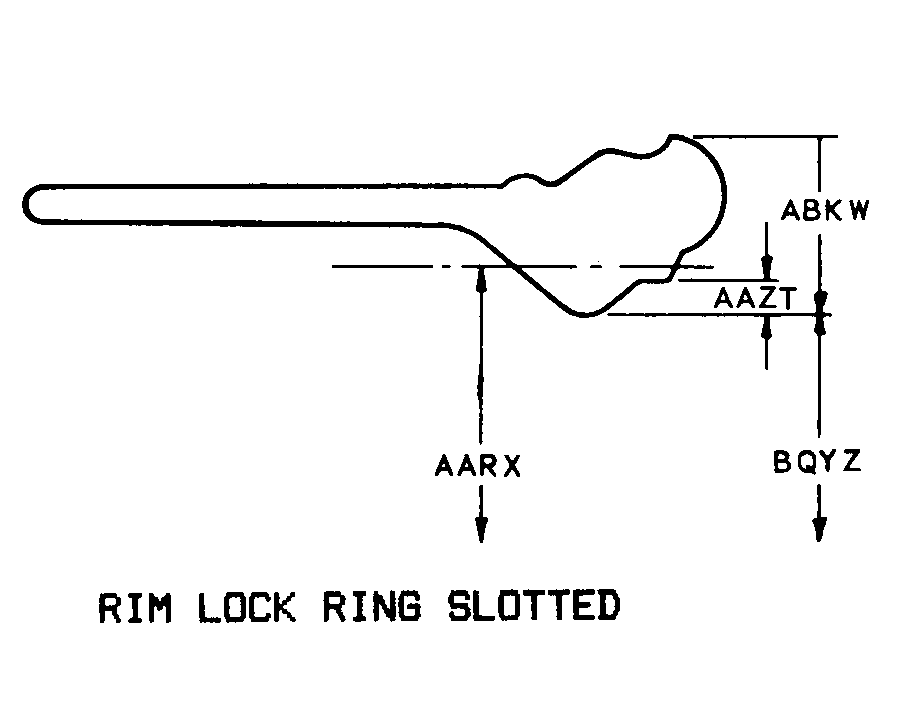

| CROSS-SECTIONAL SHAPE STYLE | C1 RIM LOCK RING SLOTTED |
| INSIDE DIAMETER | 19.125 INCHES NOMINAL |
| SLOT DEPTH | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| INSIDE CIRCUMFERENCE | 60.000 INCHES NOMINAL |
| DESIGN TYPE | SPLIT SNAP-ON |
| SIZE DESIGNATOR | 20X7 |
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINTED |
| LEVERAGE SLOT | NOT INCLUDED |
| SPECIAL FEATURES | PAINTED GRAY |
Restrictions/Controls & Freight Information | NSN 2530-00-848-0667
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020020 | AUTO WHEEL PARTS ETC |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-848-0667
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
