NSN 2530-00-846-0355 00-846-0355, 008460355
Product Details | PNEUMATIC TIRE WHEEL RIM
2530-00-846-0355 A circular metal item designed to mount on a WHEEL, PNEUMATIC TIRE to support and retain the tire. It may be of one piece or it may include a RING, LOCK, AUTOMOTIVE WHEEL; RING, SIDE, AUTOMOTIVE WHEEL; or RING, SIDE AND LOCK, AUTOMOTIVE WHEEL. For items with provisions for mounting on a separate hub capable of turning on a central axis, see WHEEL (as modified).20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: 2530-00-846-0355, 00-846-0355, 2530008460355, 008460355
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
25 | 00-846-0355 | 17940 ( RIM, WHEEL, PNEUMATIC TIRE ) |
Demand History | NSN 2530-00-846-0355
Part Number | Request Date | QTY | Origin |
---|---|---|---|
2530-00-846-0355 | 2005-12-356 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-846-0355
Related Products | NSN 2530-00-846-0355
Technical Data | NSN 2530-00-846-0355
Characteristic | Specifications |
---|---|
TIRE DIAMETER FOR WHICH DESIGNED | 9.000 INCHES |

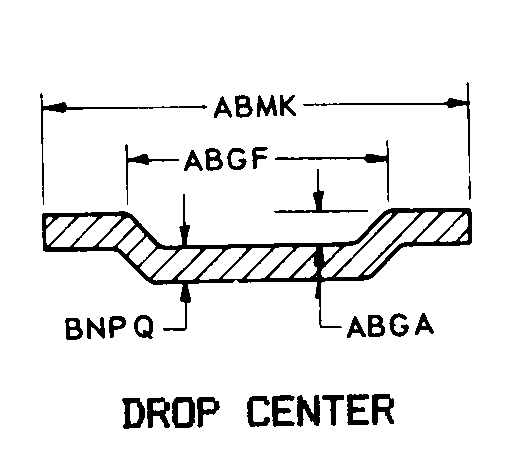

STYLE DESIGNATOR | 2 DROP CENTER |
GROOVE DEPTH | 1.875 INCHES NOMINAL |
GROOVE WIDTH | 4.625 INCHES NOMINAL |
OVERALL WIDTH | 5.250 INCHES NOMINAL |
METAL THICKNESS | 0.188 INCHES NOMINAL |
SPLIT RIM FEATURE | INCLUDED |
INTEGRAL MOUNTING BOLT HOLE LUG | NOT INCLUDED |
VALVE HOLE SHAPE | ROUND |
HOLE LOCATION | OFFSET |
SPECIAL FEATURES | SLIT RIM JOINED BY 6 STUDS,7.125 IN.DIAMETER OF CIRCLE |
Restrictions/Controls & Freight Information | NSN 2530-00-846-0355
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Category | Code | Description |
---|---|---|
No Freight Information |
