Product Details | MASTER HYDRAULIC BRAKE CYLINDER
2530-00-825-0781 A cylinder, usually incorporating an integral reservoir, designed to house the necessary component parts of a CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: H1322, H1-322, 2530-00-825-0781, 00-825-0781, 2530008250781, 008250781
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 18 AUG 1967 | 00-825-0781 | 10935 ( CYLINDER, HYDRAULIC BRAKE, MASTER ) |
Drawings & Photos | NSN 2530-00-825-0781
Cross Reference | NSN 2530-00-825-0781
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H1-322 | 82722 | WESTINGHOUSE AIR BRAKE TECHNOLOGIES CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-825-0781
Related Products | NSN 2530-00-825-0781
Technical Data | NSN 2530-00-825-0781
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 6.685 INCHES NOMINAL |
| OVERALL DIAMETER | 7.250 INCHES NOMINAL |
| BODY MATERIAL | IRON, CAST |
| BORE DIAMETER | 4.500 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING PROVISION | THREADED MOUNTING HOLES |

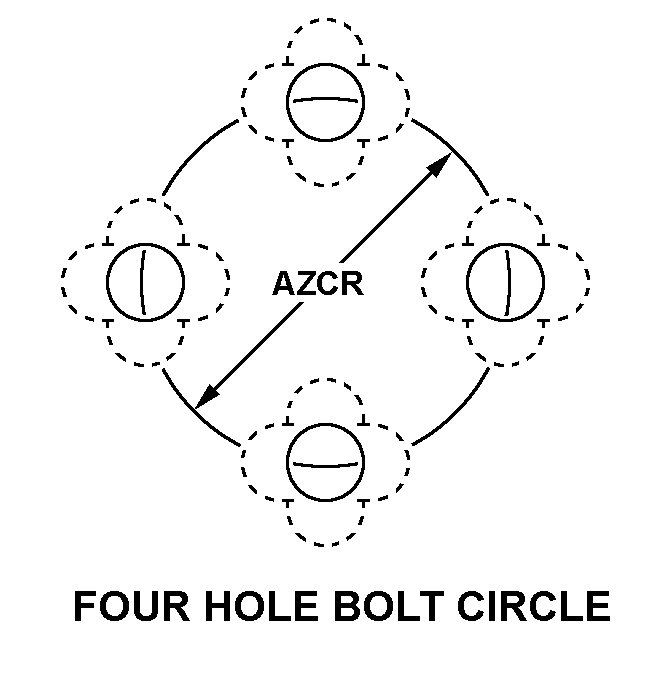

| MOUNTING PROVISION ARRANGEMENT STYLE | 28 FOUR HOLE BOLT CIRCLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 4.375 INCHES NOMINAL |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY THREAD DIAMETER | 0.562 INCHES NOMINAL |
| MOUNTING FACILITY THREAD QUANTITY PER INCH | 13 |
| MOUNTING FACILITY THREAD CLASS | 2B |
| MOUNTING FACILITY THREAD DIRECTION | RIGHT-HAND |
| MOUNTING FACILITY THREAD LENGTH | 0.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2530-00-825-0781
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
