Product Details | DUST AND MOISTURE SEAL BOOT

2530-00-810-4579 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches

Part Alternates: EL580400, 2530-00-810-4579, 00-810-4579, 2530008104579, 008104579

Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components

Supply Group (FSG) NSN Assign. NIIN
25 01 JAN 1962 00-810-4579

Drawings & Photos | NSN 2530-00-810-4579


Cross Reference | NSN 2530-00-810-4579

Part Number Cage Code Manufacturer
EL580400 15460 DEXTER AXLE COMPANY DIV DEXTER AXLE COMPANY
EL580400 75828 LIGGETT SPRING AND AXLE CO
EL580400 98620 MIDWEST RUBBER CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2530-00-810-4579

Technical Data | NSN 2530-00-810-4579

Characteristic Specifications

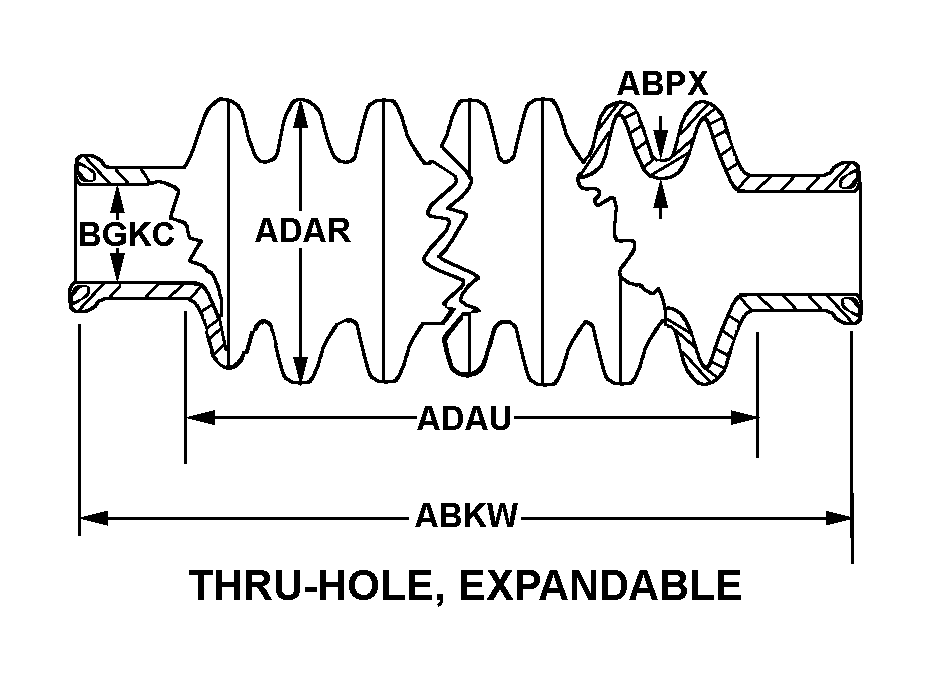

STYLE DESIGNATOR A22 THRU-HOLE, EXPANDABLE
OVERALL HEIGHT 3.375 INCHES NOMINAL
MATERIAL THICKNESS 0.062 INCHES NOMINAL
BODY OUTSIDE DIAMETER 3.188 INCHES NOMINAL
BODY HEIGHT 2.750 INCHES NOMINAL
BASE INSIDE DIAMETER ANY ACCEPTABLE
OPENING INSIDE DIAMETER 2.375 INCHES NOMINAL
MATERIAL RUBBER SILICONE BODY
MANUFACTURERS CODE 15460
DESIGN CONTROL REFERENCE EL580400

Restrictions/Controls & Freight Information | NSN 2530-00-810-4579

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194090 WASHERS/SEALS
Less than car load rating
Less than truck load rating S 60.0
Water commodity Code 846 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2530-00-810-4579

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeLPItems initially authorized for local purchase.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesLLOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
