NSN 2530-00-770-1108 SR18R, 06737, 21863E4
Product Details | AUTOMOTIVE WHEEL SIDE AND LOCK RING
2530-00-770-1108 A two-piece metal device consisting of a side ring and matching lock ring, usually loosely rivited together, which is designed to fit the outer circumference of a wheel rim for positioning and retaining a pneumatic tire.
Part Alternates: SR18R, 06737, 21863E4, 22882, 26982J, 7701108, 7741061, 2530-00-770-1108, 00-770-1108, 2530007701108, 007701108
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1962 | 00-770-1108 | 10970 ( RING, SIDE AND LOCK, AUTOMOTIVE WHEEL ) |
Drawings & Photos | NSN 2530-00-770-1108
Cross Reference | NSN 2530-00-770-1108
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 06737 | 41885 | HAYES WHEELS INTL INC AKRON OPNS |
| 21863E4 | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 22882 | 56442 | DIAMOND REO TRUCK CO |
| 26982J | 56442 | DIAMOND REO TRUCK CO |
| 7701108 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7741061 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| SR18R | 22337 | BRIDGESTONE AMERICAS TIRE OPERATIONS, LLC |
| SR18R | 73195 | ACCURIDE CORPORATION DIV ACCURIDE CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-770-1108
Technical Data | NSN 2530-00-770-1108
| Characteristic | Specifications |
|---|---|

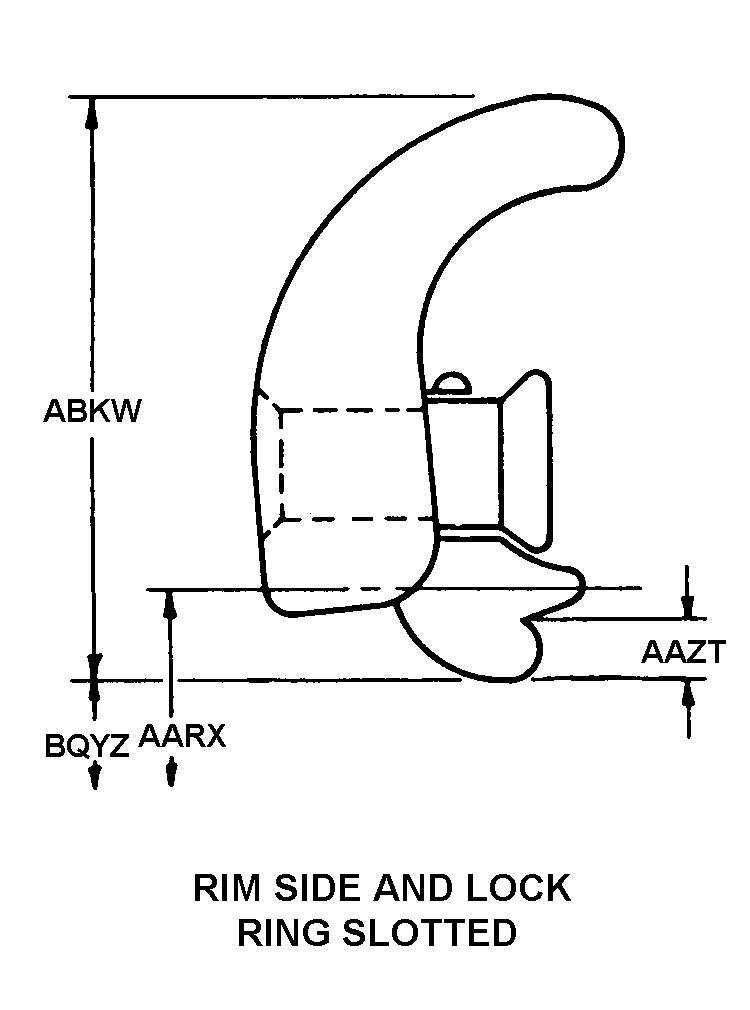

| CROSS-SECTIONAL SHAPE STYLE | E6 RIM SIDE AND LOCK RING SLOTTED |
| INSIDE DIAMETER | 20.000 INCHES NOMINAL |
| SLOT DEPTH | 0.281 INCHES NOMINAL |
| OVERALL HEIGHT | 1.812 INCHES NOMINAL |
| INSIDE CIRCUMFERENCE | 60.250 INCHES NOMINAL |
| DESIGN TYPE | TWO-PIECE RIVETED |
| SIZE DESIGNATOR | 20X5 |
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINTED |
| LEVERAGE SLOT | INCLUDED |
| SLOT WIDTH | 0.625 INCHES NOMINAL |
| SLOT DEPTH | 0.438 INCHES |
| MANUFACTURERS CODE | 22337 |
| DESIGN CONTROL REFERENCE | SR18R |
Restrictions/Controls & Freight Information | NSN 2530-00-770-1108
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020020 | AUTO WHEEL PARTS ETC |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
