NSN 2530-00-766-6200 51594L, 00-766-6200, 007666200
Product Details | SHOE TYPE BRAKE
2530-00-766-6200 A brake consisting essentially of the following: a. A torque spider which is a disklike metal part designed to fit over and be attached to the torque flange of the axle. b. One or more brake shoes with brake lining attached. c. A hydraulic cylinder(s) or mechanical linkage to provide the force by which the brake shoe is pressed against the brake drum.20316300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 51594L, 2530-00-766-6200, 00-766-6200, 2530007666200, 007666200
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1962 | 00-766-6200 | 09197 ( BRAKE, SHOE TYPE ) |

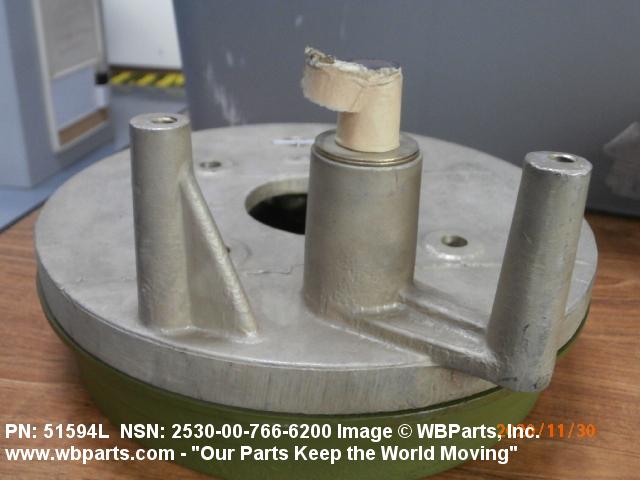

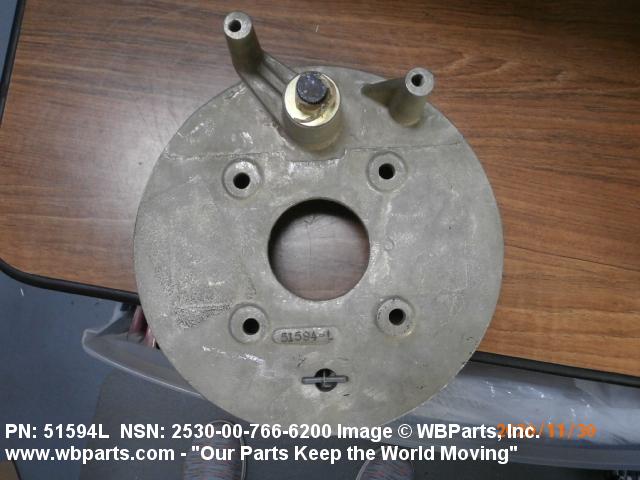

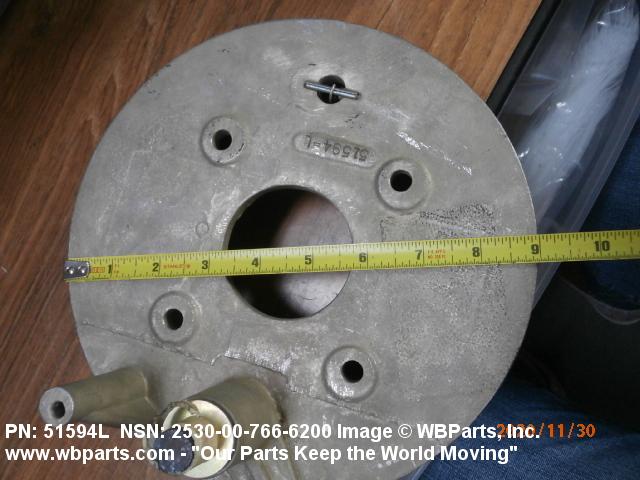

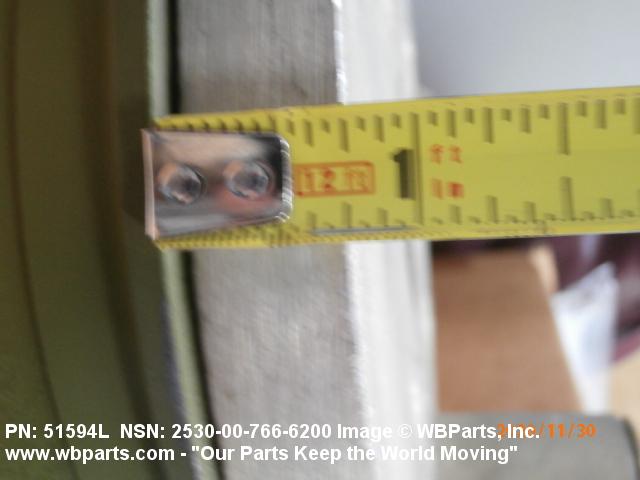

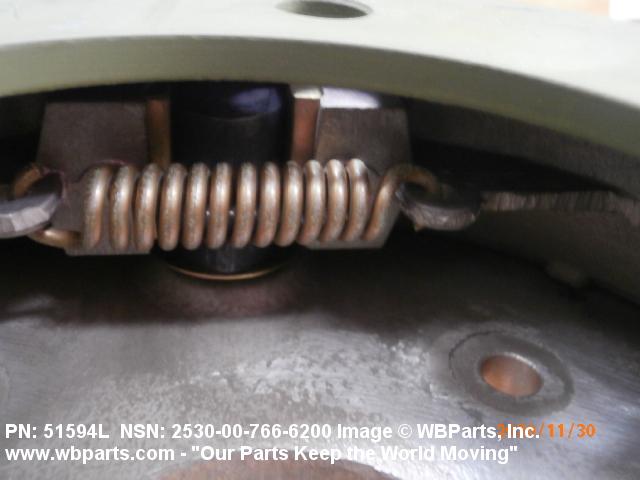

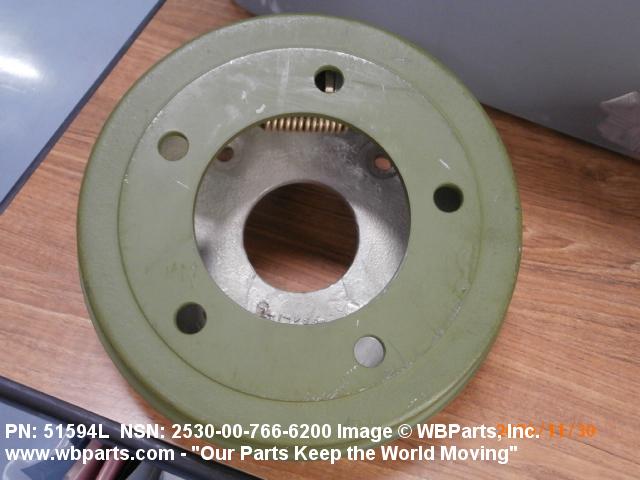

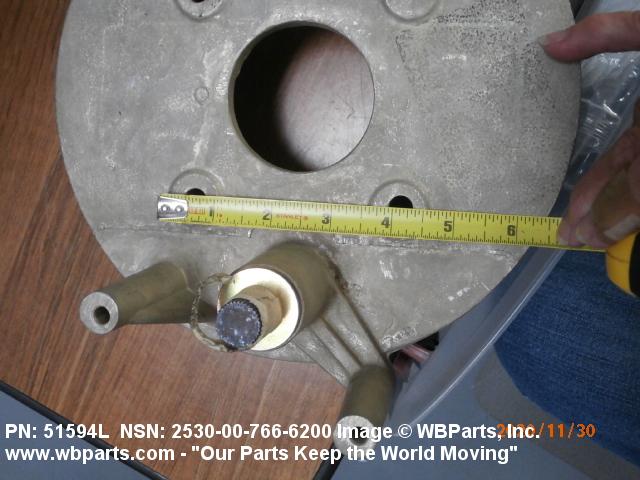

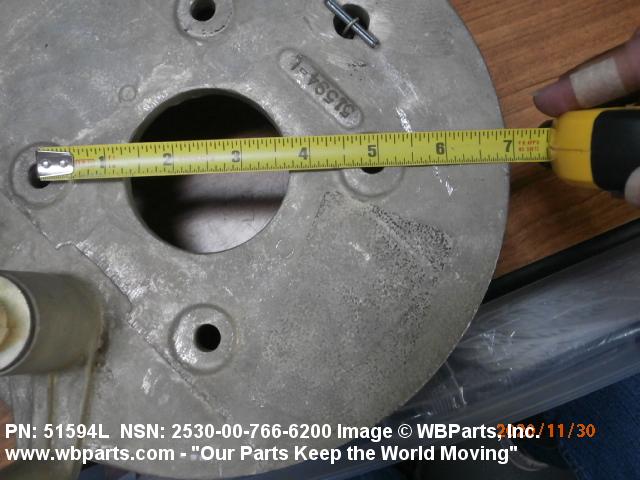

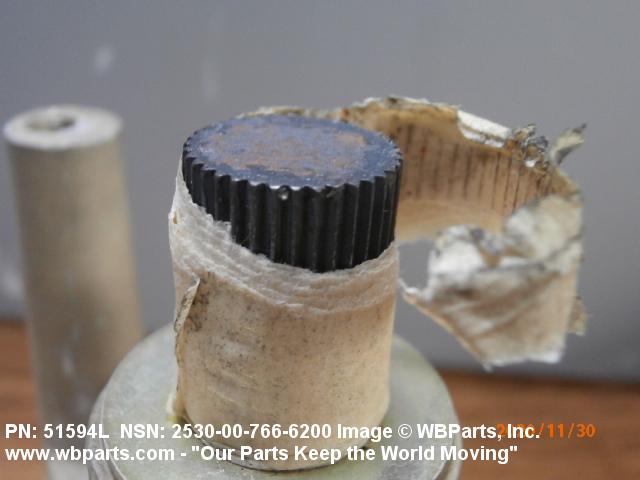

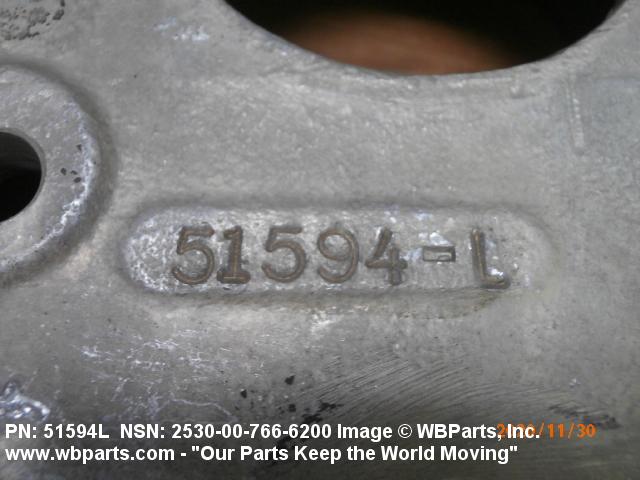

Drawings & Photos | NSN 2530-00-766-6200
Demand History | NSN 2530-00-766-6200
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 51594L | 2021-05-151 | 16 | DIBBS |
| 2530-00-766-6200 | 2020-11-310 | 1 | United States |
| 51594L | 2020-06-166 | 10 | DIBBS |
| 51594L | 2019-12-335 | 20 | DIBBS |
| 51594L | 2019-03-78 | 11 | DIBBS |
| 51594L | 2019-03-66 | 11 | DIBBS |
| 2530-00-766-6200 | 2018-11-317 | 7 | DIBBS |
| 2530-00-766-6200 | 2018-11-305 | 7 | DIBBS |
| 2530-00-766-6200 | 2018-08-225 | 8 | DIBBS |
| 2530-00-766-6200 | 2018-08-214 | 8 | DIBBS |
| 2530-00-766-6200 | 2015-10-291 | 7 | DIBBS |
| 2530-00-766-6200 | 2011-10-286 | 7 | DIBBS |
| 2530-00-766-6200 | 2011-05-136 | 2 | DIBBS |
| 2530-00-766-6200 | 2011-03-80 | 1 | DIBBS |
| 51594L | 2010-04-105 | 200 | US |
| 2530-00-766-6200 | 2008-08-219 | 3 | DIBBS |
| 2530-00-766-6200 | 2008-08-214 | 7 | DIBBS |
| 2530-00-766-6200 | 2007-10-278 | 10 | DIBBS |
Cross Reference | NSN 2530-00-766-6200
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 51594L | 83445 | PREECE ACQUISITION COMPANY INC DBA AEROL CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-766-6200
Related Products | NSN 2530-00-766-6200
Technical Data | NSN 2530-00-766-6200
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | MECHANICAL |
| SHOE DIAMETER | 7.875 INCHES NOMINAL |
| SHOE WIDTH | 1.495 INCHES NOMINAL |
| SHOE QUANTITY | 1 |
| INSTALLATION LOCATION | LEFT HAND SIDE |

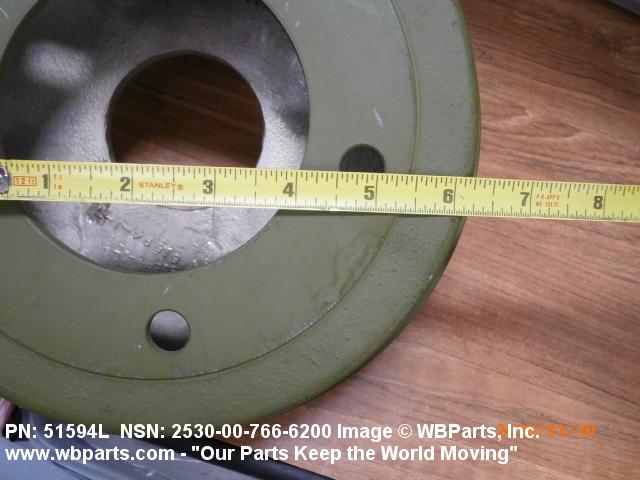

| OVERALL DIAMETER | 8.970 INCHES NOMINAL |

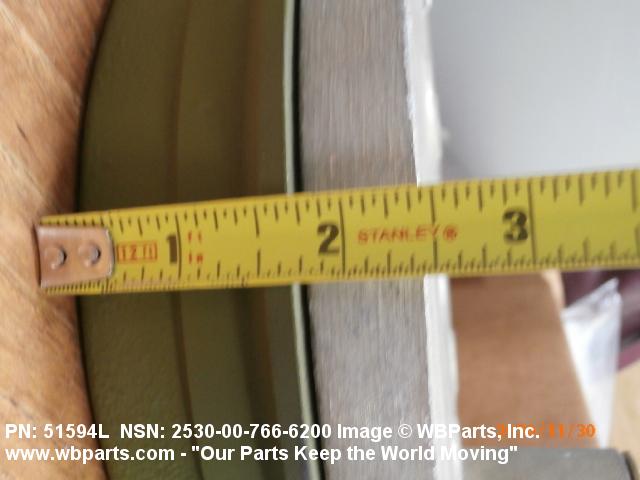

| OVERALL WIDTH | 4.782 INCHES NOMINAL |
| MOUNTING METHOD | ANCHOR PLATE FLANGE |
| MOUNTING HOLE QUANTITY | 4 |

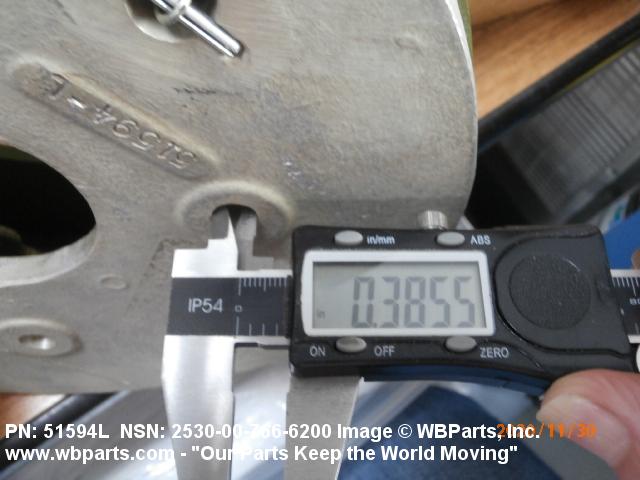

| MOUNTING HOLE DIAMETER | 0.386 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 4.934 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2530-00-766-6200
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-766-6200
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
