NSN 2530-00-736-6517 0157936, 01-57936 , 11370603
Product Details | GREASE CAP
2530-00-736-6517 A cap, usually of metal, designed to retain lubricant and excludes foreign matter from bearings. It is normally used as an end closure on items designed to rotate on a shaft,such as a wheel hub, or fit into a housing at the end of a rotating shaft, or the like. Do not use if a more specific name applies. For items mounted by bolt holes, see COVER, ACCESS.20316300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 0157936, 01-57936 , 11370603, 11-3706-03 , 17392 , 250HD124, 00044 , 36958, 502458, 57936 , 5945419, 7365517, 7366517, 743574A, 7435-74A, 862, 8-6-2, 2530-00-736-6517, 00-736-6517, 2530007366517, 007366517
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-736-6517 | 22874 ( CAP, GREASE ) |
Drawings & Photos | NSN 2530-00-736-6517
Demand History | NSN 2530-00-736-6517
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 00044 | 2011-04-102 | 30 | US |
Cross Reference | NSN 2530-00-736-6517
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 36958 | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 36958 | 71282 | BUDD CO THE |
| 7365517 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7366517 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7435-74A | 52793 | SAGINAW PRODUCTS CORPORATION DBA CIGNYS |
| 8-6-2 | 60528 | TRAILMOBILE INC SUB OF THE PULLMAN CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-736-6517
Technical Data | NSN 2530-00-736-6517
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

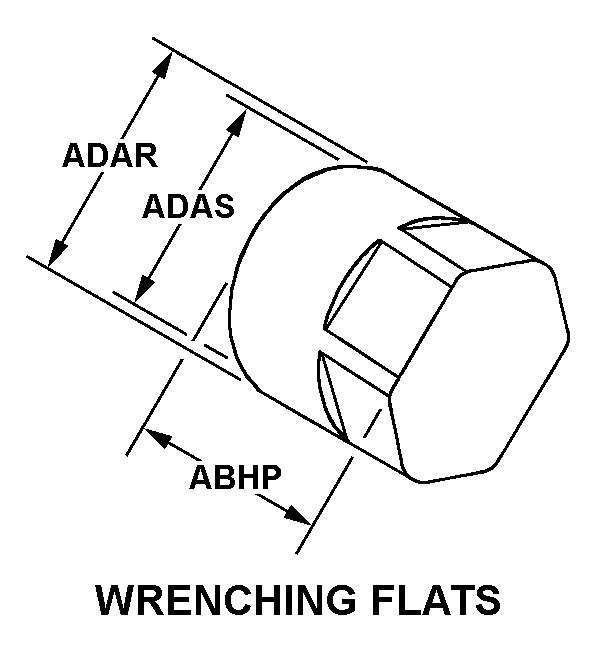

| STYLE DESIGNATOR | A6 WRENCHING FLATS |
| OVERALL LENGTH | 1.375 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.880 INCHES NOMINAL |
| SPECIAL FEATURES | C/BORE FEATURE-NOT INCL.;GROOVED FACE-NOT PROVIDED;ANTISTATIC SPRING-NOT INCL.;SURFACE TREAT.-CADMIUM PLATED;WDTH ACROSS FLATS 2.250 IN.;FLATS QTY 6;OUTSIDE THD:3.000 IN.-16 N OR UN RH |
| III END ITEM IDENTIFICATION | WHEEL,HUB,VEHICULAR |
Restrictions/Controls & Freight Information | NSN 2530-00-736-6517
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-736-6517
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
