NSN 2530-00-717-0152 A13722X674, A1-3722X674, SMP3859
Product Details | BRAKE SHOE
2530-00-717-0152 A metal item in the shape of an arc, with or without a replaceable friction lining on the surface of the shoe arc. When actuated by a cam, lever and/or hydraulic cylinder, it exerts pressure on a drum or wheel. Also, see BRAKE, SHOE TYPE.20316300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: A13722X674, A1-3722X674, SMP3859, SMP-38-59, 34321, 2530-00-717-0152, 00-717-0152, 2530007170152, 007170152
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 09 FEB 1968 | 00-717-0152 | 30489 ( BRAKE SHOE ) |

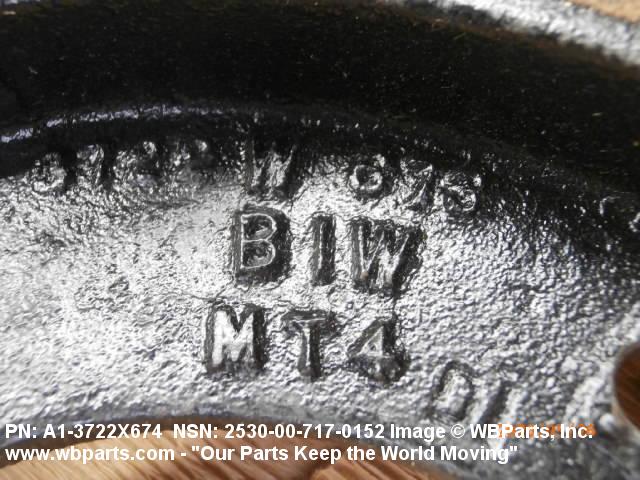

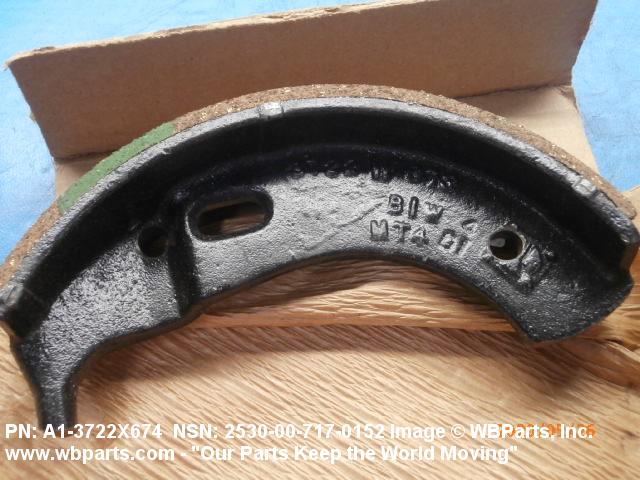

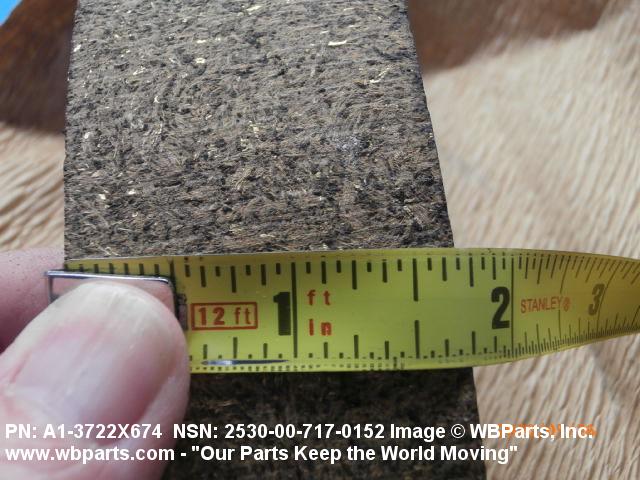

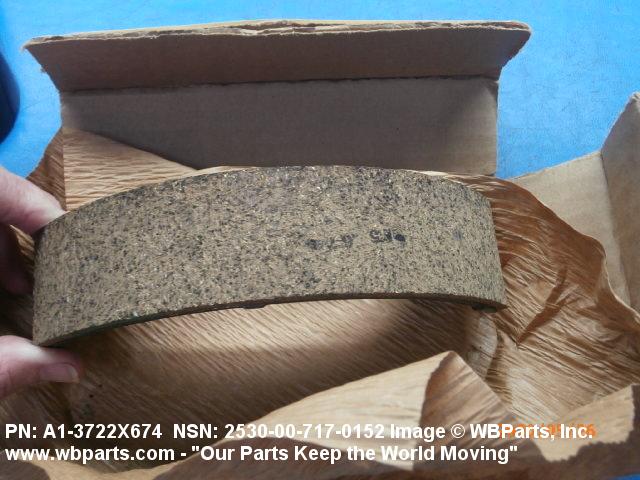

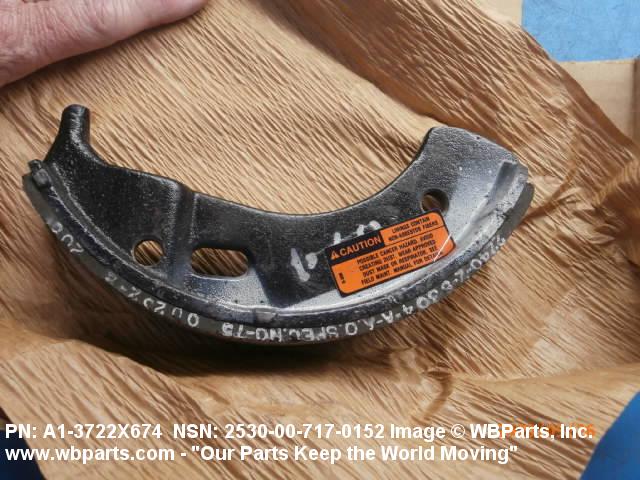

Drawings & Photos | NSN 2530-00-717-0152
Demand History | NSN 2530-00-717-0152
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-717-0152 | 2020-05-136 | 2 | United States |
| A13722X674 | 2020-05-136 | 2 | United States |
| A13722X674 | 2020-05-136 | 2 | US |
| 2530-00-717-0152 | 2014-02-44 | 4 | US |
| 34321 | 2014-02-44 | 4 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-717-0152
Technical Data | NSN 2530-00-717-0152
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS COMPOSITION |
| FABRICATION METHOD | MOLDED |
| APPLICATION TYPE | DRY |
| SURFACE CONDITION AND LOCATION | ONE SIDE GROUND |
| DRUM DIAMETER FOR WHICH DESIGNED | 8.000 INCHES NOMINAL |
| DRUM WIDTH FOR WHICH DESIGNED | 1.750 INCHES NOMINAL |
| ACTUATION METHOD AND LOCATION | CAM INTERNAL |
| SEGMENT QUANTITY | 1 |
| FEATURES PROVIDED | FRICTION LINING |
| MANUFACTURERS CODE | 3D6E9 |
| DESIGN CONTROL REFERENCE | A1-3722X674 |
Restrictions/Controls & Freight Information | NSN 2530-00-717-0152
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-717-0152
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
