NSN 2530-00-701-7247 11BX121, 7017247, 7699053
Product Details | BALL SOCKET SEAT
2530-00-701-7247 A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE.20512400038Optical Sighting and Ranging Equipment12900036Miscellaneous Fire Control Equipment25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components53400020Hardware, Commercial
Part Alternates: 11BX121, 7017247, 7699053, 2530-00-701-7247, 00-701-7247, 2530007017247, 007017247
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-701-7247 | 19451 ( SEAT, BALL SOCKET ) |

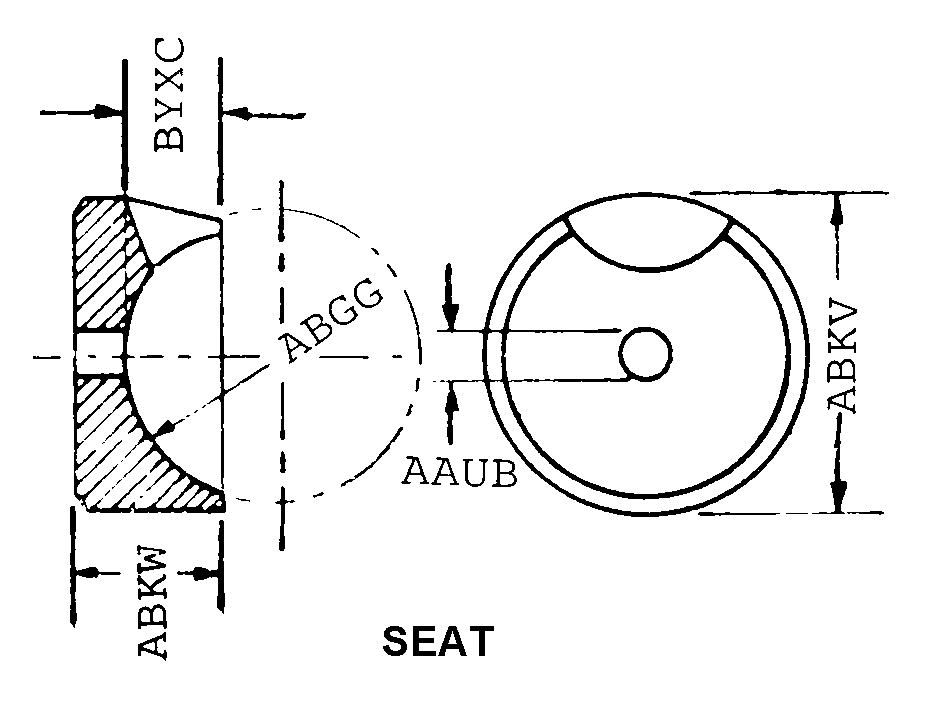

Drawings & Photos | NSN 2530-00-701-7247
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-701-7247
Technical Data | NSN 2530-00-701-7247
| Characteristic | Specifications |
|---|---|
| MATERIAL HARDNESS RATING | 60.0 ROCKWELL C MINIMUM AND 65.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | M5 SEAT |
| RADIUS | 1.250 INCHES NOMINAL |
| BALL SEAT DEPTH | 0.812 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.615 INCHES NOMINAL |
| OVERALL HEIGHT | 1.178 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
| SPECIAL FEATURES | HOLE DIA., ANY ACCEPTABLE; MATL LUBRICANTIMPREGNATION, NOT INCLUDED; STEEL, SAE 4120 |
Restrictions/Controls & Freight Information | NSN 2530-00-701-7247
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
