NSN 2530-00-603-1547 L16SV5000A12, L16SV640A41, 40326
Product Details | STEERING TIE ROD END

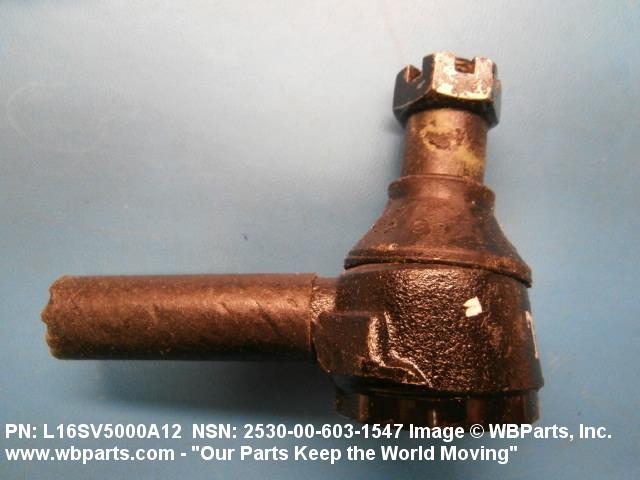

2530-00-603-1547 A metal device designed to provide a swiveling connection between a tie rod and arm of an automotive steering mechanism.
Part Alternates: L16SV5000A12, L16SV640A41, 40326, 403-26, 2530-00-603-1547, 00-603-1547, 2530006031547, 006031547
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1961 | 00-603-1547 | 15952 ( TIE ROD END, STEERING ) |

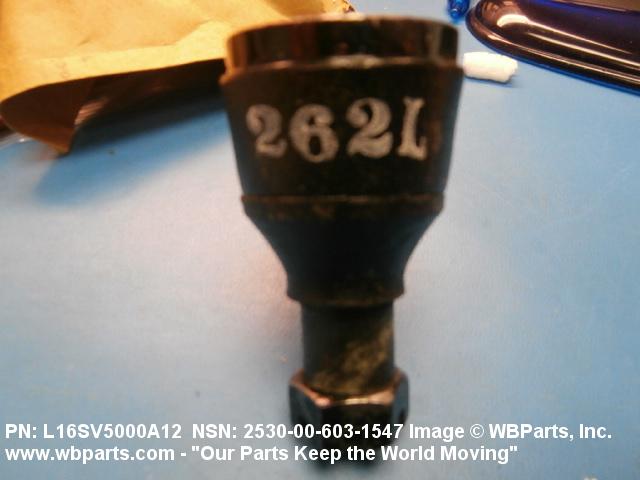

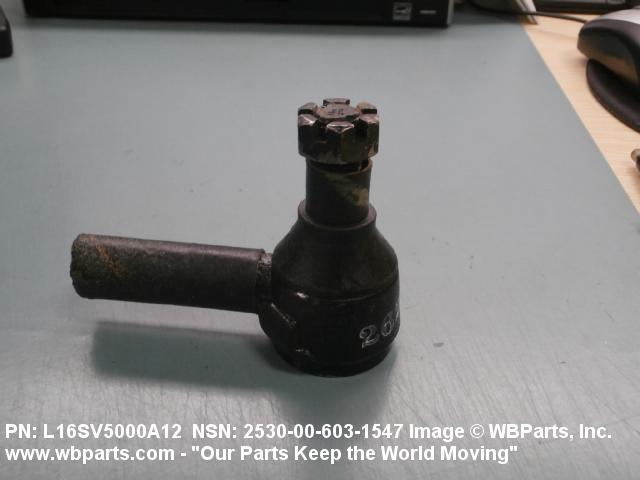

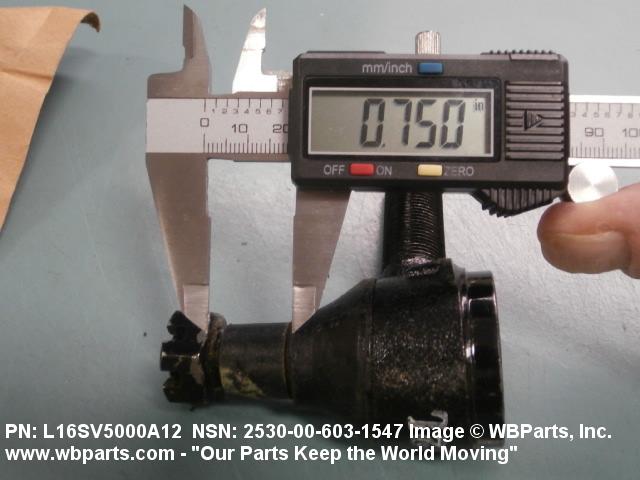

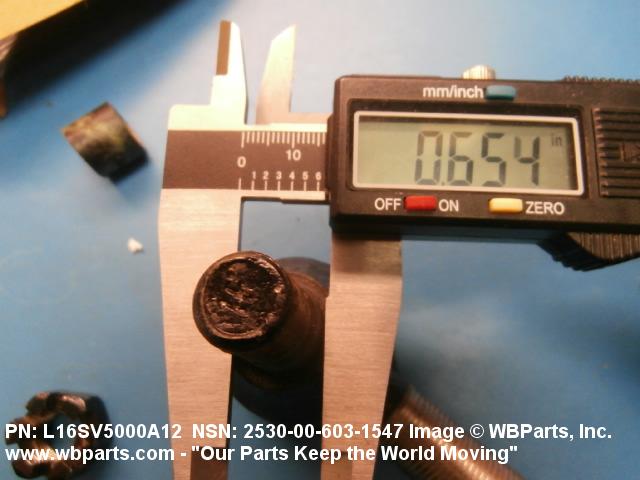

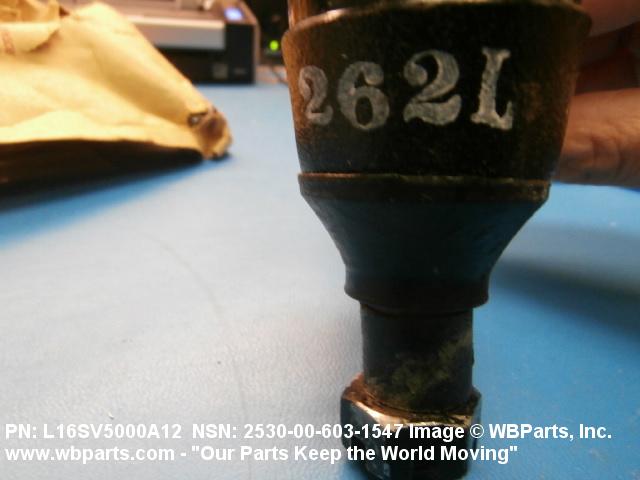

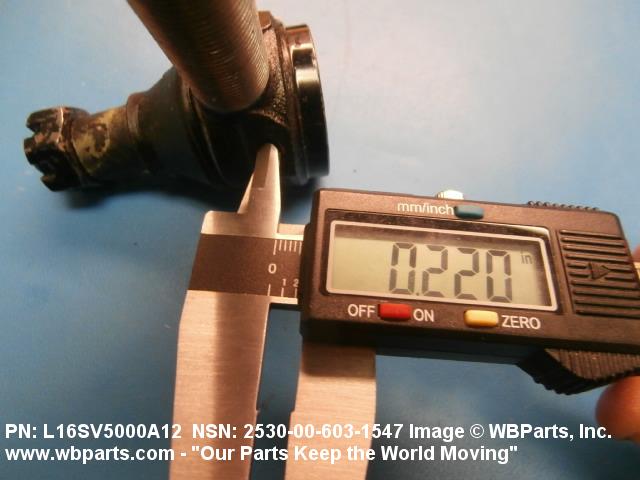

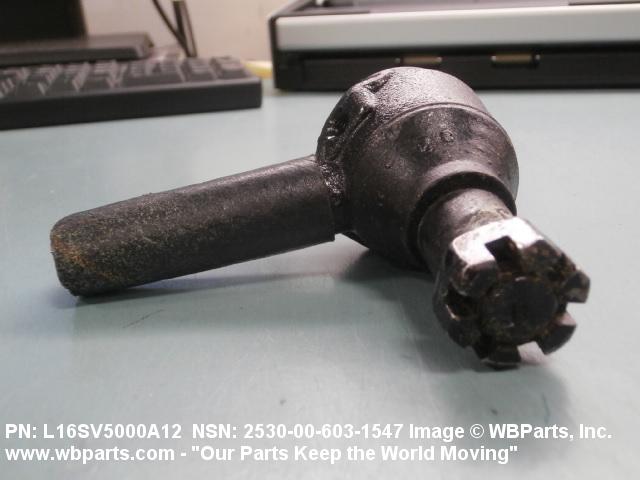

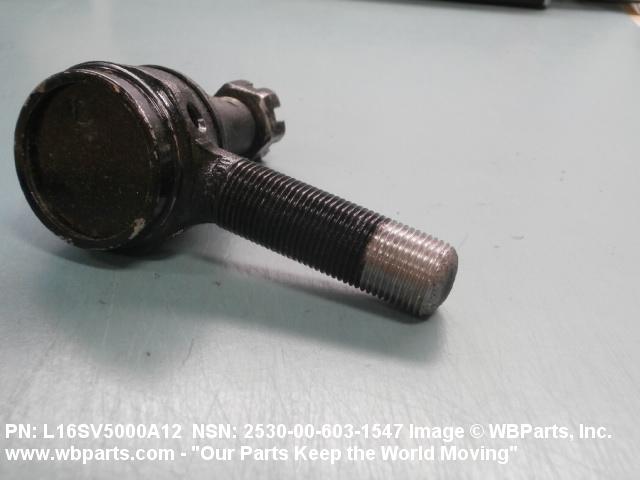

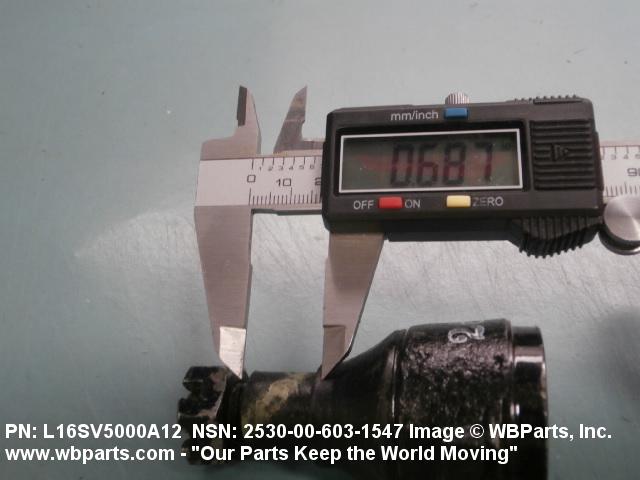

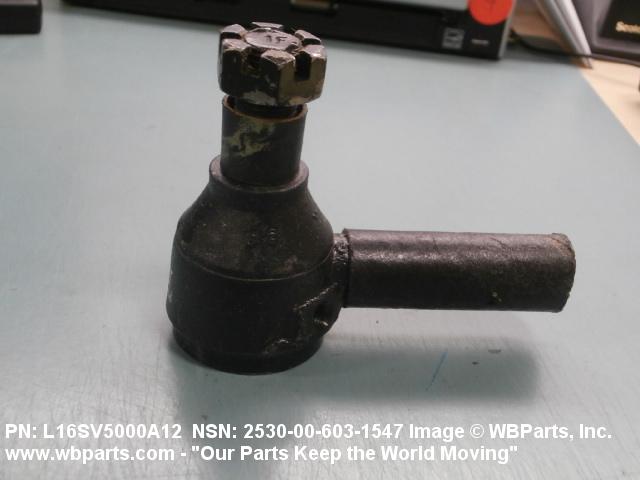

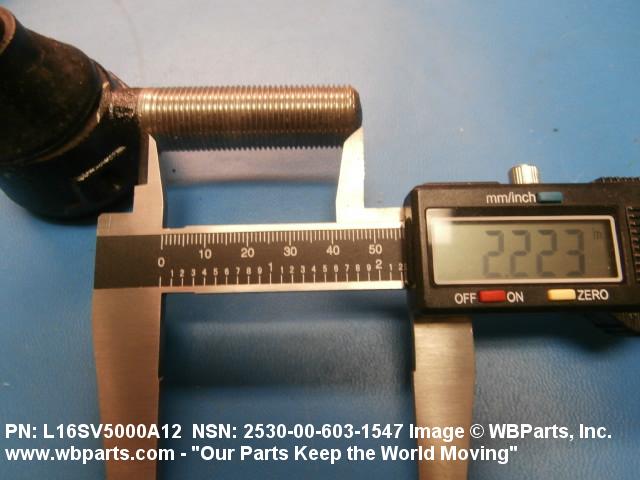

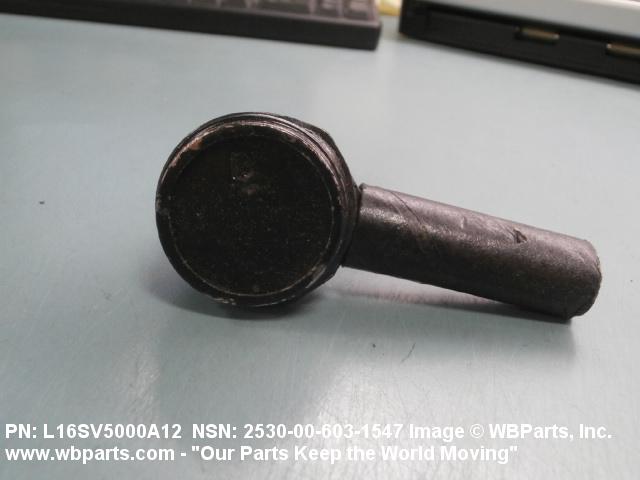

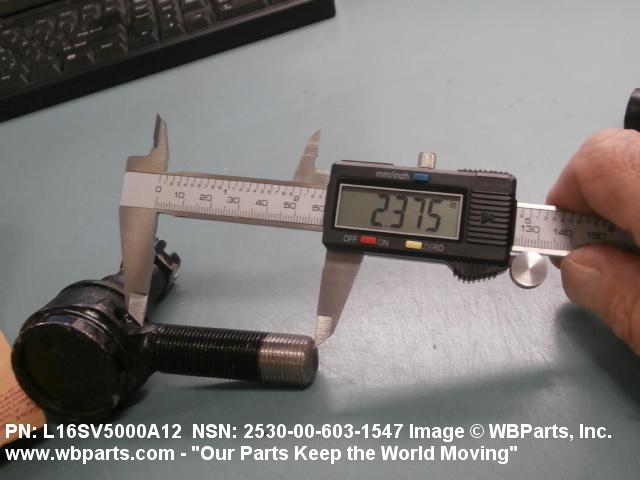

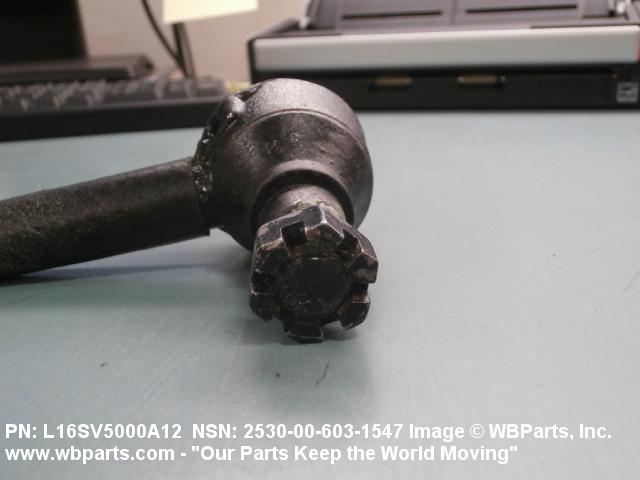

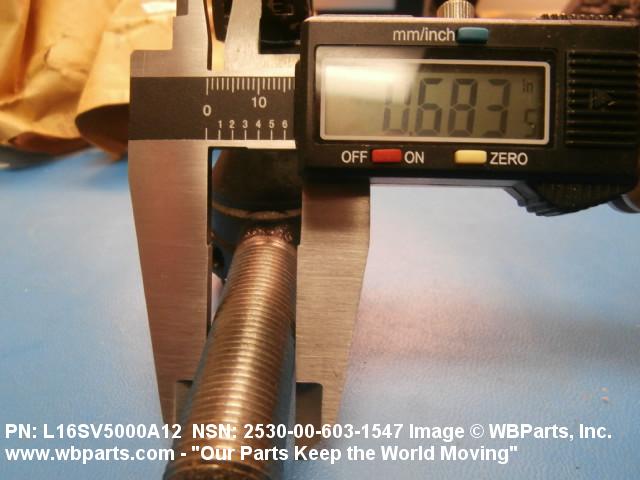

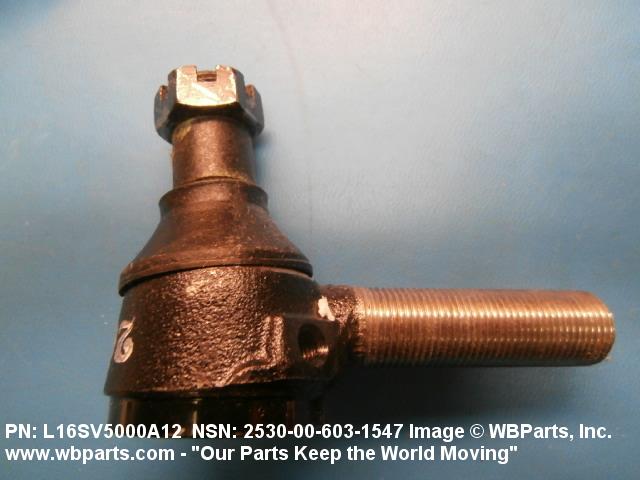

Drawings & Photos | NSN 2530-00-603-1547
Demand History | NSN 2530-00-603-1547
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-603-1547 | 2018-06-173 | 4 | US |
| 2530-00-603-1547 | 2015-01-15 | 10 | United States |
| 2530-00-603-1547 | 2015-01-15 | 10 | United States |
| 2530-00-603-1547 | 2014-01-16 | 4 | United States |
| 2530-00-603-1547 | 2010-08-240 | 6 | DIBBS |
| L16SV5000A12 | 2009-12-348 | 18 | Canada |
