NSN 2530-00-432-1778 137595, 1-37595, 137957
Product Details | BRAKE DISC
2530-00-432-1778 A flat circular metallic item, a component of a disk type brake used primarily for frictional purposes.20516200032Aircraft Landing Gear Components16300032Aircraft Wheel and Brake Systems16500058Aircraft Hydraulic, Vacuum, and De-icing System Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 137595, 1-37595, 137957, 1-37957, 2584157, 2530-00-432-1778, 00-432-1778, 2530004321778, 004321778
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 03 MAY 1971 | 00-432-1778 | 60405 ( DISC, BRAKE ) |

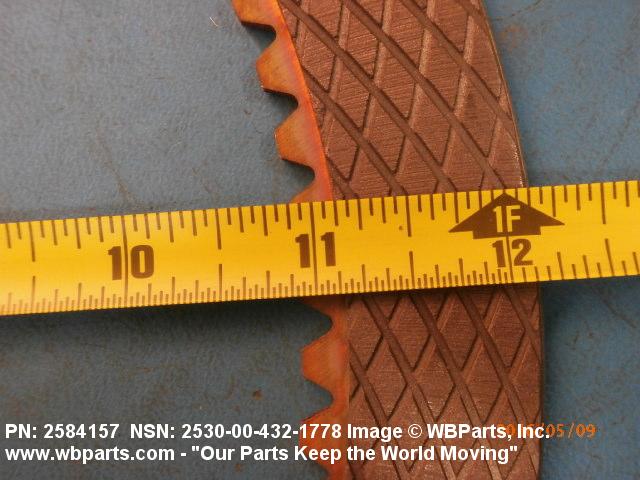

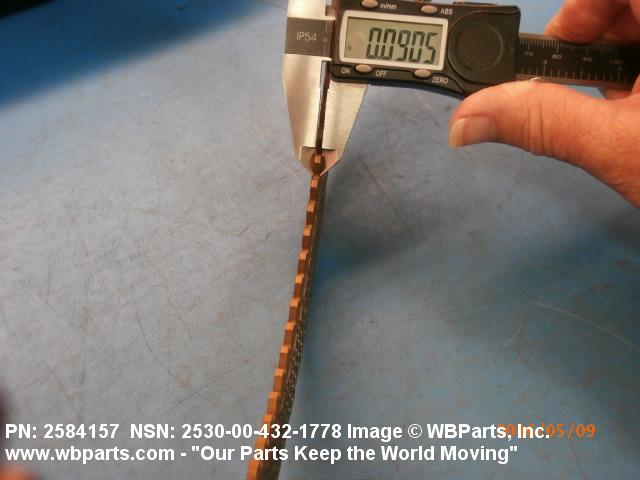

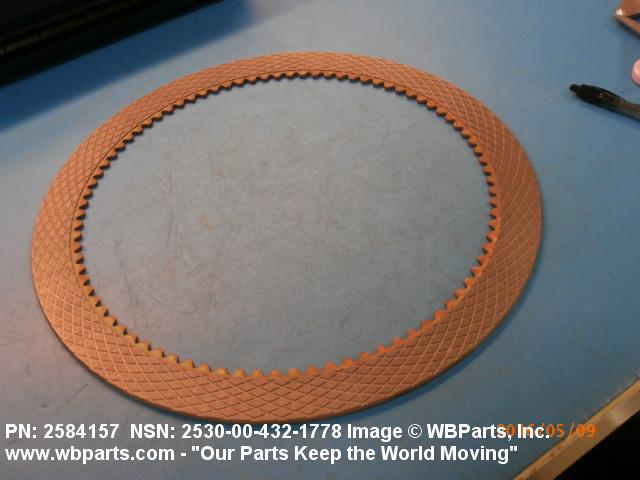

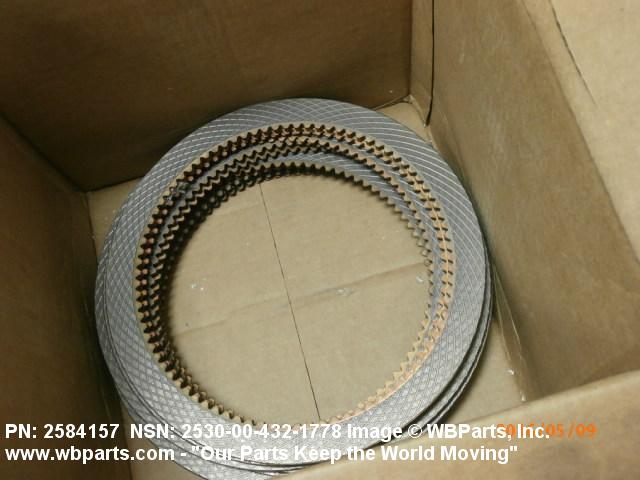

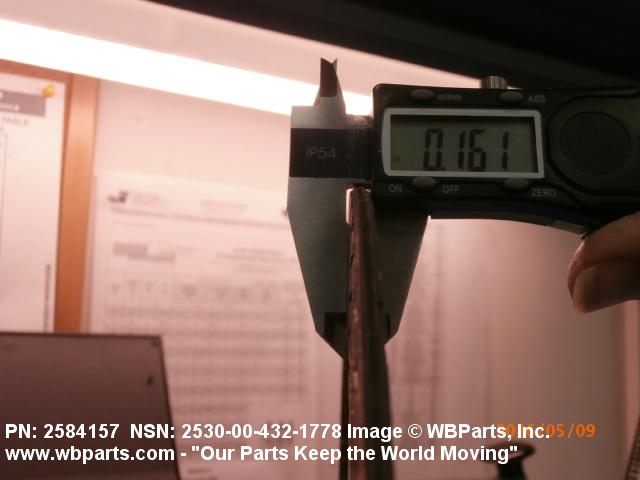

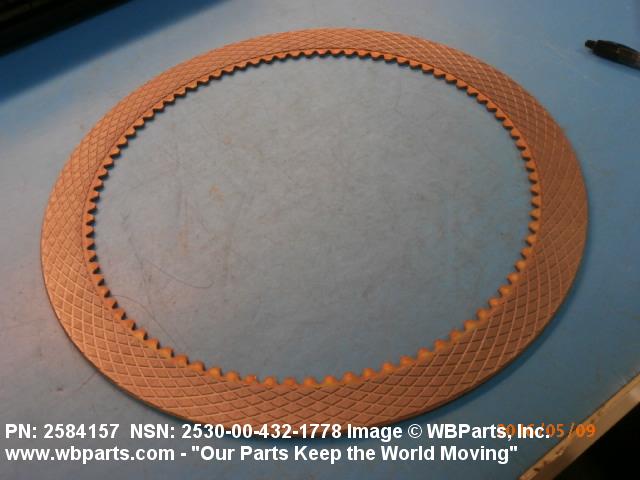

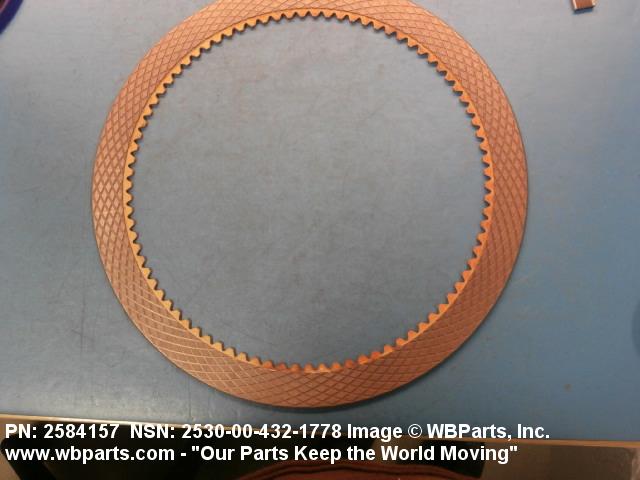

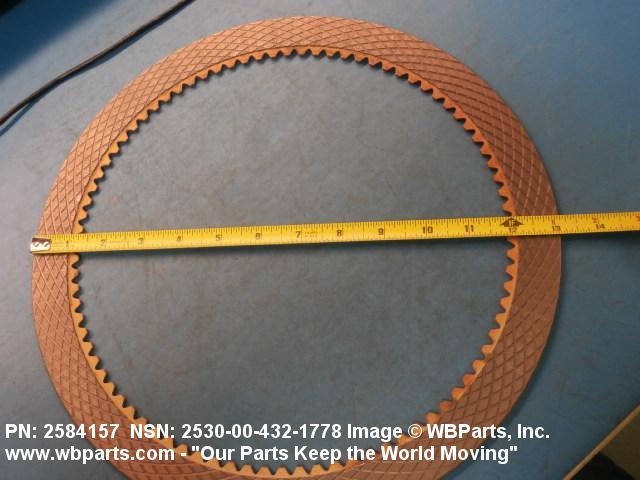

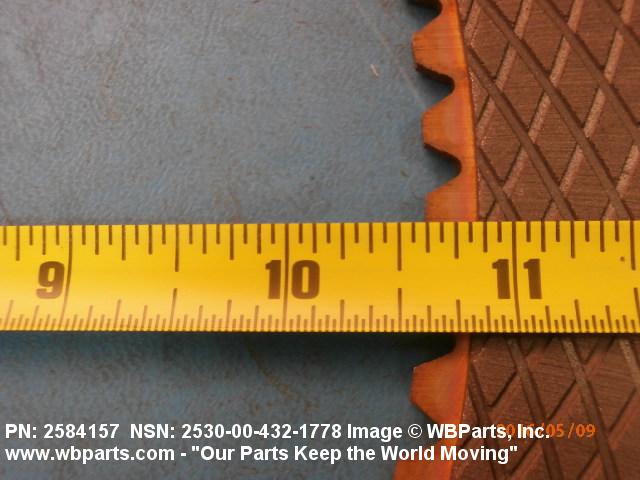

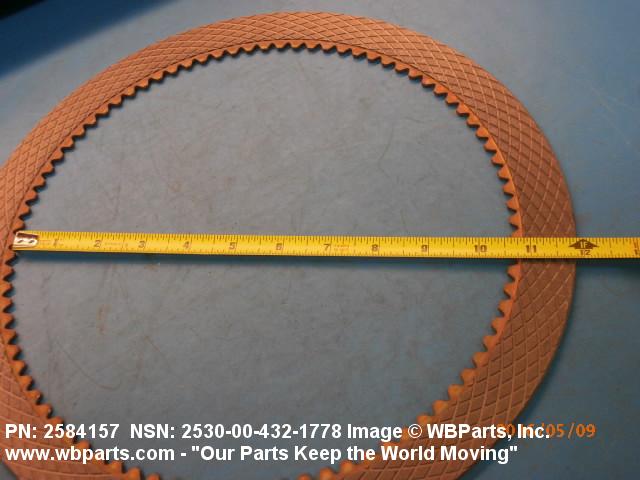

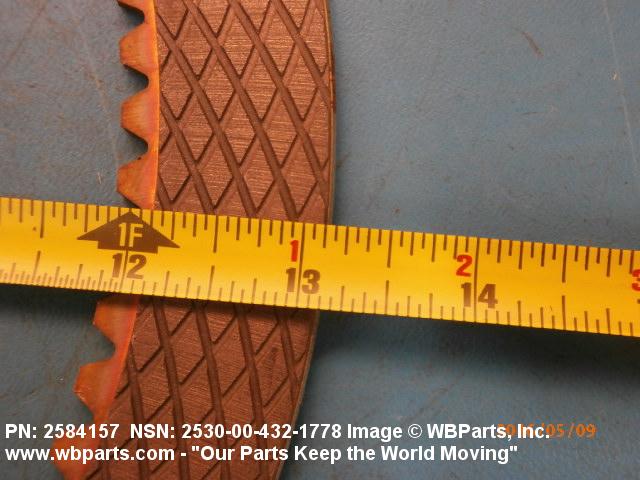

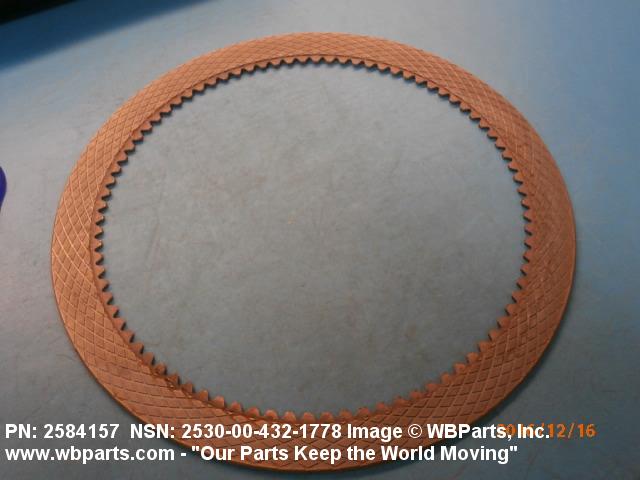

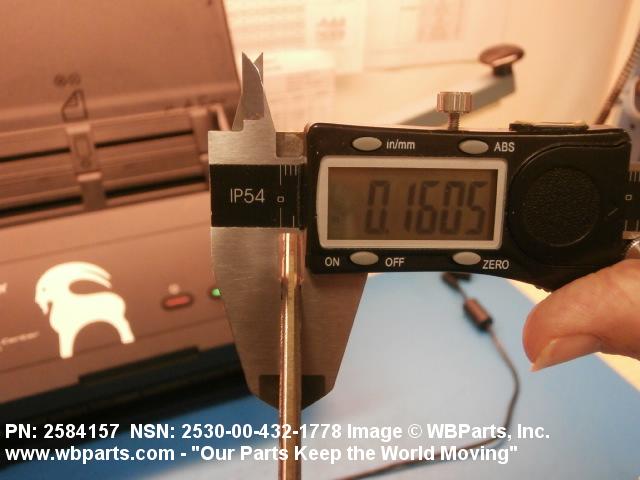

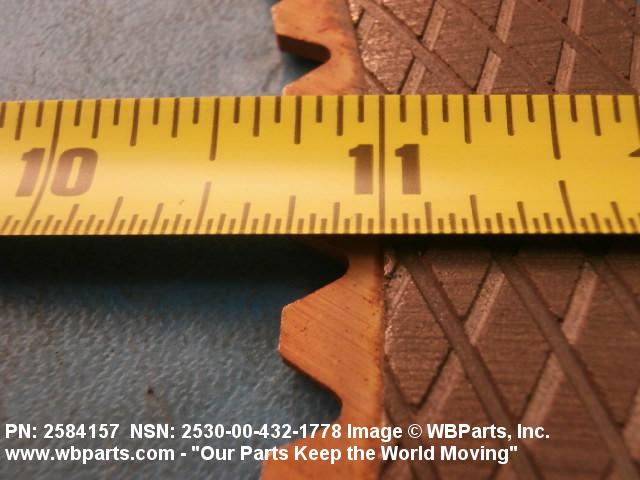

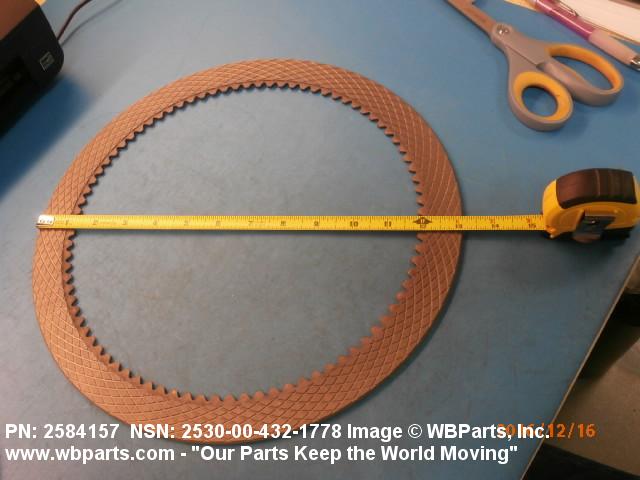

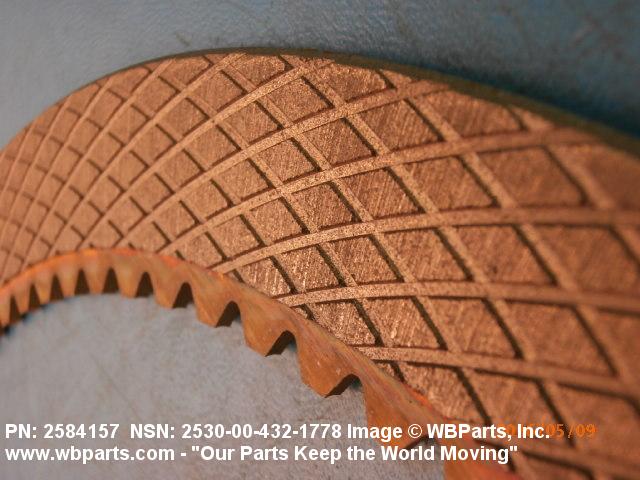

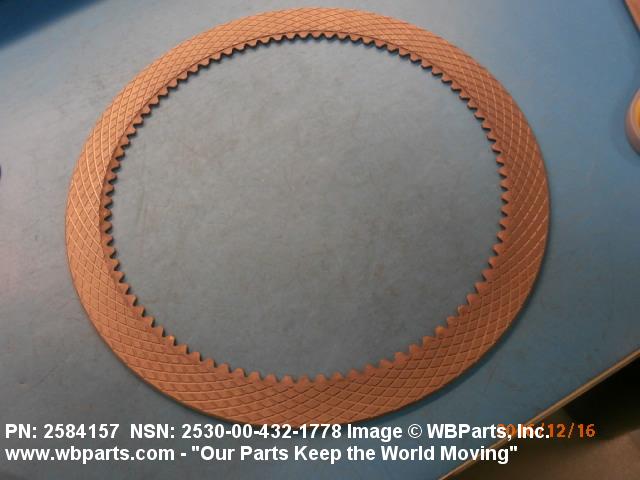

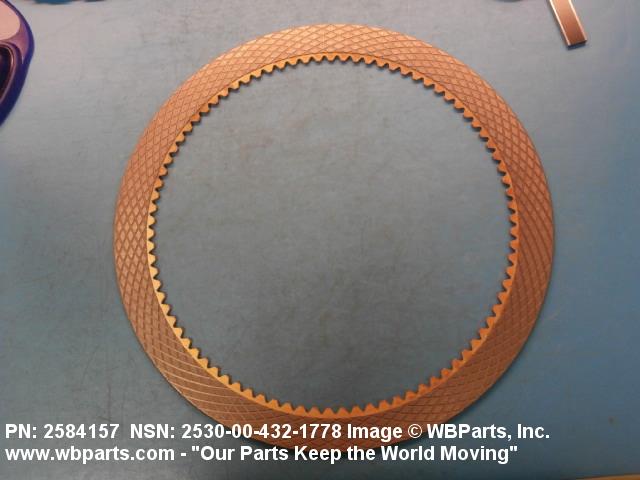

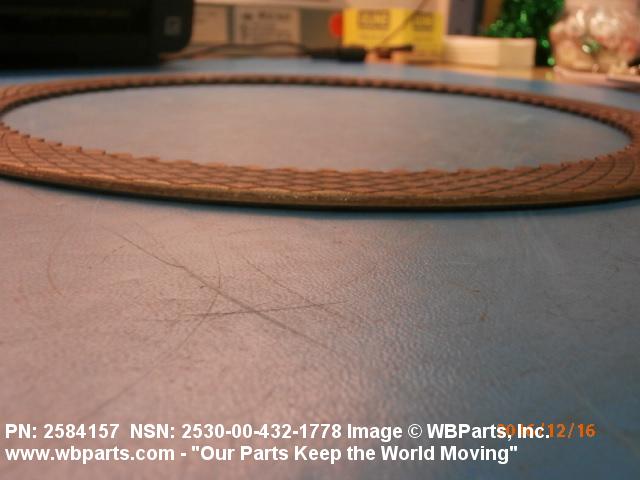

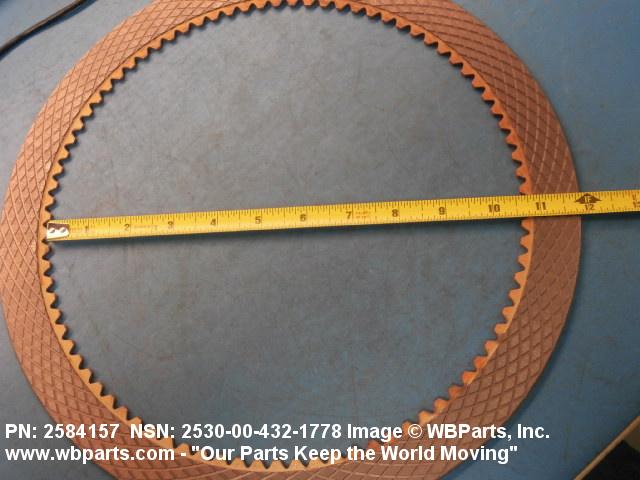

Drawings & Photos | NSN 2530-00-432-1778
Demand History | NSN 2530-00-432-1778
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-432-1778 | 2024-12-337 | 160 | KR |
| 2530-00-432-1778 | 2024-11-333 | 160 | KR |
| 1-37595 | 2024-11-313 | 97 | DIBBS |
| 1-37957 | 2024-11-313 | 97 | DIBBS |
| 2584157 | 2024-11-313 | 97 | DIBBS |
| 1-37595 | 2024-10-302 | 97 | DIBBS |
| 1-37957 | 2024-10-302 | 97 | DIBBS |
| 2584157 | 2024-10-302 | 97 | DIBBS |
| 1-37595 | 2022-10-279 | 46 | DIBBS |
| 1-37957 | 2022-10-279 | 46 | DIBBS |
| 2584157 | 2022-10-279 | 46 | DIBBS |
| 1-37595 | 2022-07-186 | 488 | DIBBS |
| 1-37957 | 2022-07-186 | 488 | DIBBS |
| 2584157 | 2022-07-186 | 488 | DIBBS |
| 1-37595 | 2022-06-178 | 310 | DIBBS |
| 1-37957 | 2022-06-178 | 310 | DIBBS |
| 2584157 | 2022-06-178 | 310 | DIBBS |
| 1-37595 | 2022-06-174 | 488 | DIBBS |
| 1-37957 | 2022-06-174 | 488 | DIBBS |
| 2584157 | 2022-06-174 | 488 | DIBBS |
| 1-37595 | 2022-06-165 | 394 | DIBBS |
| 1-37957 | 2022-06-165 | 394 | DIBBS |
| 2584157 | 2022-06-165 | 394 | DIBBS |
| 1-37595 | 2022-06-160 | 74 | DIBBS |
| 1-37957 | 2022-06-160 | 74 | DIBBS |
| 2584157 | 2022-06-160 | 74 | DIBBS |
| 1-37595 | 2022-04-111 | 394 | DIBBS |
| 1-37957 | 2022-04-111 | 394 | DIBBS |
| 2584157 | 2022-04-111 | 394 | DIBBS |
| 1-37595 | 2022-04-100 | 394 | DIBBS |
| 1-37957 | 2022-04-100 | 394 | DIBBS |
| 2584157 | 2022-04-100 | 394 | DIBBS |
| 1-37595 | 2022-01-31 | 118 | DIBBS |
| 1-37957 | 2022-01-31 | 118 | DIBBS |
| 2584157 | 2022-01-31 | 118 | DIBBS |
| 1-37595 | 2022-01-20 | 118 | DIBBS |
| 1-37957 | 2022-01-20 | 118 | DIBBS |
| 2584157 | 2022-01-20 | 118 | DIBBS |
| 1-37595 | 2022-01-05 | 310 | DIBBS |
| 1-37957 | 2022-01-05 | 310 | DIBBS |
| 2584157 | 2022-01-05 | 310 | DIBBS |
| 2530-00-432-1778 | 2021-12-355 | 310 | US |
| 2530-00-432-1778 | 2021-12-355 | 310 | US |
| 1-37595 | 2021-12-355 | 310 | DIBBS |
| 1-37957 | 2021-12-355 | 310 | DIBBS |
| 2584157 | 2021-12-355 | 310 | DIBBS |
| 2530-00-432-1778 | 2021-06-181 | 70 | DIBBS |
| 2530-00-432-1778 | 2021-03-85 | 50 | DIBBS |
| 2530-00-432-1778 | 2021-03-85 | 67 | DIBBS |
| 2530-00-432-1778 | 2020-12-363 | 66 | DIBBS |
| 2530-00-432-1778 | 2020-12-352 | 66 | DIBBS |
| 2530-00-432-1778 | 2020-01-07 | 506 | DIBBS |
| 2530-00-432-1778 | 2019-10-293 | 482 | DIBBS |
| 2530-00-432-1778 | 2018-03-89 | 966 | DIBBS |
| 2530-00-432-1778 | 2018-03-74 | 966 | DIBBS |
| 2530-00-432-1778 | 2018-03-63 | 966 | DIBBS |
| 2530-00-432-1778 | 2017-08-227 | 22 | United States |
| 2530-00-432-1778 | 2017-07-192 | 19 | United States |
| 2530-00-432-1778 | 2017-06-159 | 22 | United States |
| 2530-00-432-1778 | 2017-04-120 | 750 | DIBBS |
| 2530-00-432-1778 | 2017-04-107 | 2000 | DIBBS |
| 2530-00-432-1778 | 2017-04-94 | 2000 | DIBBS |
| 2530-00-432-1778 | 2017-04-93 | 711 | DIBBS |
| 2530-00-432-1778 | 2017-03-86 | 22 | United States |
| 2530-00-432-1778 | 2017-03-81 | 711 | DIBBS |
| 2530-00-432-1778 | 2017-02-54 | 22 | United States |
| 2530-00-432-1778 | 2017-02-52 | 1214 | DIBBS |
| 2530-00-432-1778 | 2017-02-37 | 22 | United States |
| 2530-00-432-1778 | 2017-02-37 | 1214 | DIBBS |
| 2530-00-432-1778 | 2017-02-36 | 1350 | DIBBS |
| 2530-00-432-1778 | 2016-12-341 | 22 | United States |
| 2530-00-432-1778 | 2016-11-318 | 1350 | DIBBS |
| 2530-00-432-1778 | 2016-10-305 | 22 | United States |
| 2530-00-432-1778 | 2016-10-284 | 750 | DIBBS |
| 2530-00-432-1778 | 2016-10-278 | 331 | DIBBS |
| 2530-00-432-1778 | 2016-09-257 | 331 | DIBBS |
| 2530-00-432-1778 | 2016-09-245 | 18 | United States |
| 2530-00-432-1778 | 2016-07-213 | 932 | DIBBS |
| 2530-00-432-1778 | 2016-06-155 | 19 | United States |
| 2530-00-432-1778 | 2016-05-124 | 30 | United States |
| 2530-00-432-1778 | 2016-03-91 | 748 | DIBBS |
| 2530-00-432-1778 | 2016-03-80 | 748 | DIBBS |
| 2530-00-432-1778 | 2016-03-67 | 748 | DIBBS |
| 2530-00-432-1778 | 2015-06-169 | 155 | DIBBS |
| 2530-00-432-1778 | 2015-06-158 | 155 | DIBBS |
| 2530-00-432-1778 | 2015-02-33 | 125 | DIBBS |
| 2530-00-432-1778 | 2015-01-22 | 125 | DIBBS |
| 2530-00-432-1778 | 2015-01-11 | 125 | DIBBS |
| 2530-00-432-1778 | 2014-12-356 | 597 | DIBBS |
| 2530-00-432-1778 | 2014-12-345 | 597 | DIBBS |
| 2530-00-432-1778 | 2013-12-352 | 312 | DIBBS |
| 2530-00-432-1778 | 2013-12-339 | 539 | DIBBS |
| 2530-00-432-1778 | 2013-11-330 | 294 | DIBBS |
| 2530-00-432-1778 | 2013-09-261 | 182 | DIBBS |
| 2530-00-432-1778 | 2013-04-98 | 393 | DIBBS |
| 2530-00-432-1778 | 2012-05-125 | 439 | DIBBS |
| 2530-00-432-1778 | 2011-12-361 | 2 | United States |
| 2530-00-432-1778 | 2011-10-279 | 445 | DIBBS |
| 2530-00-432-1778 | 2011-06-166 | 152 | US |
| 2530-00-432-1778 | 2011-04-91 | 329 | DIBBS |
| 2530-00-432-1778 | 2010-12-337 | 392 | DIBBS |
| 2530-00-432-1778 | 2010-11-305 | 53 | DIBBS |
| 2530-00-432-1778 | 2010-10-288 | 32 | DIBBS |
| 2530-00-432-1778 | 2010-10-274 | 243 | DIBBS |
| 2530-00-432-1778 | 2008-06-169 | 1076 | DIBBS |
Cross Reference | NSN 2530-00-432-1778
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-432-1778
Related Products | NSN 2530-00-432-1778
Technical Data | NSN 2530-00-432-1778
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | MATERIAL,STEEL SAE 1075 THRU 1095 OR 4140,13.146 IN. MIN,13.166 IN. MAX OD,9.3098 IN. BORE DIA,0.158 IN. MIN 0.163 IN. MAX DISK AND LINING THK,INTERNAL INVOLUTE SPLINE,10.9750 IN. MIN,10.9930 IN. MAX MAJOR DIA,10.7500 IN. PITCH DIA,86 TEETH,30 DEG PRESSURE ANGLE,8/16 PITCH,CLASS 1 FIT |
| MANUFACTURERS CODE | 80064 |
| MFR SOURCE CONTROLLING REFERENCE | 2584157 |
Restrictions/Controls & Freight Information | NSN 2530-00-432-1778
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-432-1778
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | T | |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
