NSN 2530-00-383-4830 A167702, A190837, B151445

Product Details | WHEEL HYDRAULIC BRAKE CYLINDER ASSEMBLY

2530-00-383-4830 A device consisting of a CYLINDER, HYDRAULIC BRAKE, WHEEL with a piston(s) and other component parts which is mounted to the back plate of a wheel. It uses the flow and pressure of a fluid to create the linear motion required to operate the brake shoes of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components

Part Alternates: A167702, A190837, B151445, C15022, C9532, DX3590H, DX4759, EW746, FC746, FC746C, FD20945A, FD2958, FD470, WC746, X10619, X10660, X12445, X12684, W746, 0006071001, 000-607-1001, 0006072170, 000-607-2170 , F746, 104667, 11BLHA14, 127392, 12EHW25, 15537, 16484F, 16485F, 172380, 172-380, 2001942, 2106233, 21694A, 233713A, 252M1, 253M1, 2WE110, 30071047, 3007104-7, 303815, 327635, 3583, 47107072, 4717072, 506566, 547318, 61060R91, 6151445, 6156059, 644757, 6CFC746, 6CFD470, 746, 74717072, 90208, 90209, 2530-00-383-4830, 00-383-4830, 2530003834830, 003834830

Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
25	01 JAN 1963	00-383-4830	10862 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, WHEEL )

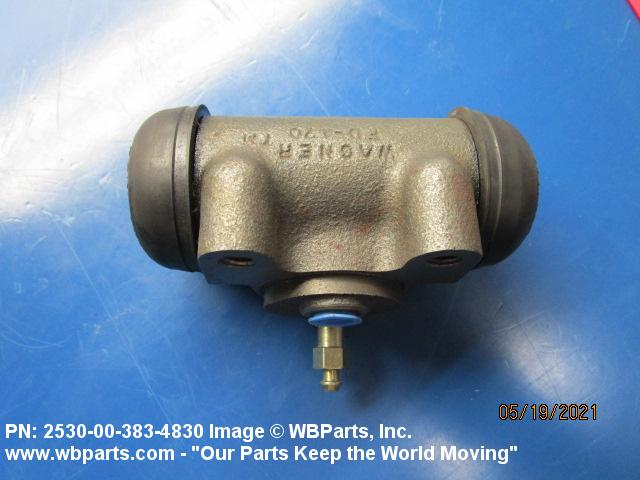

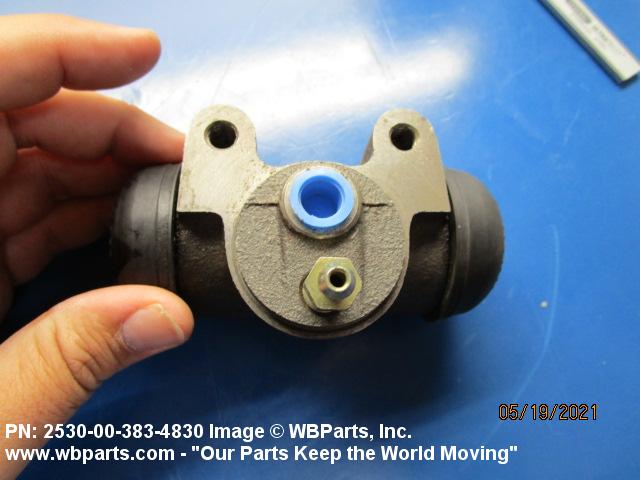

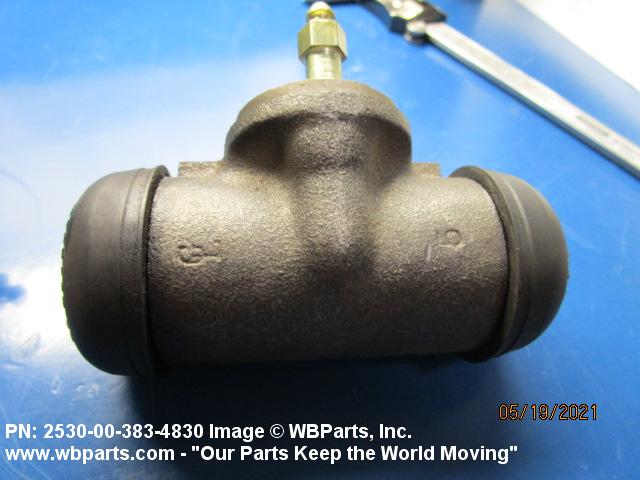

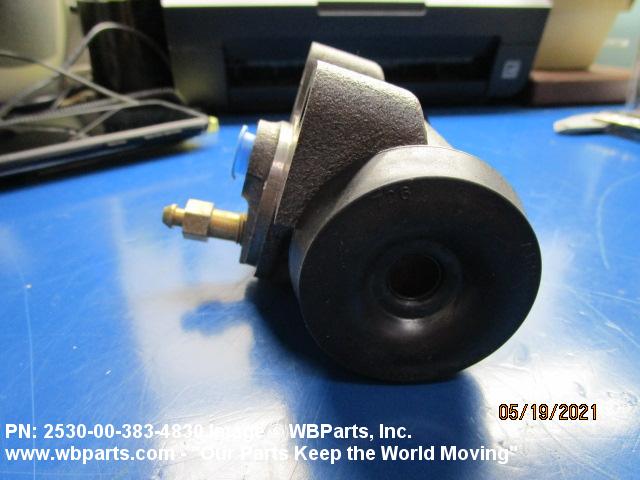

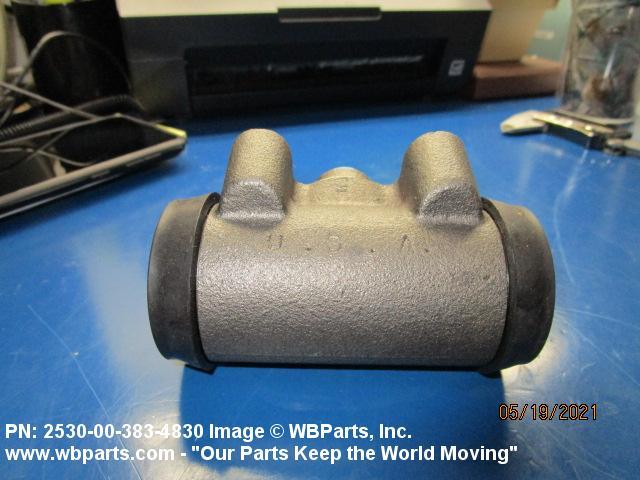

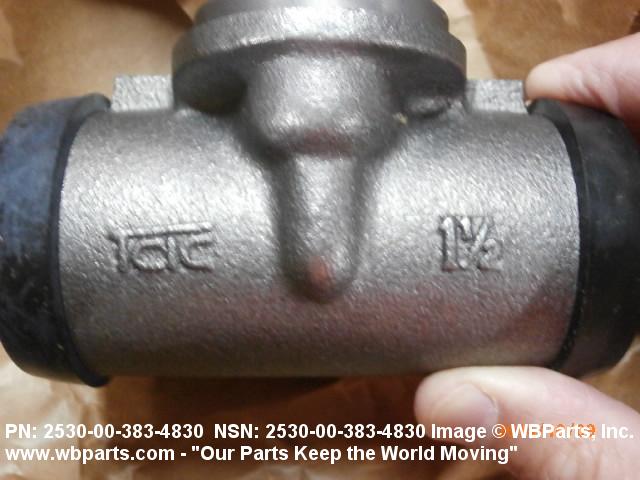

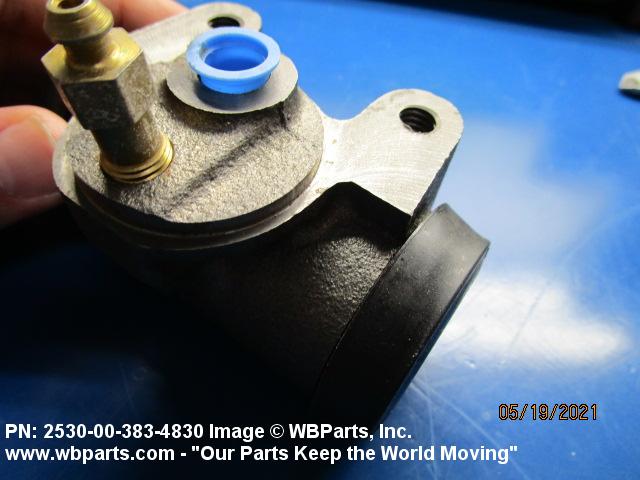

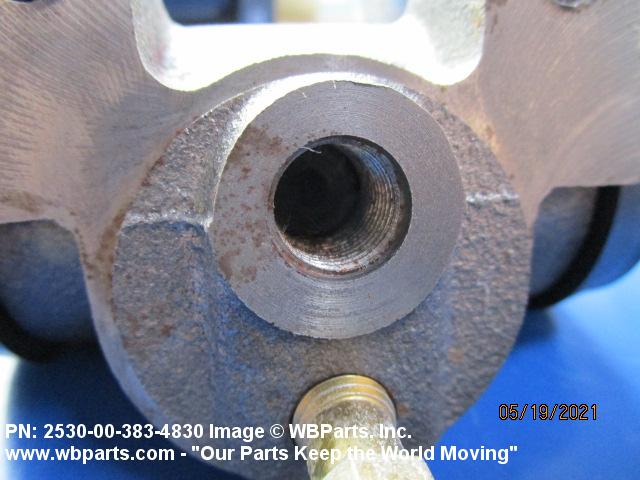

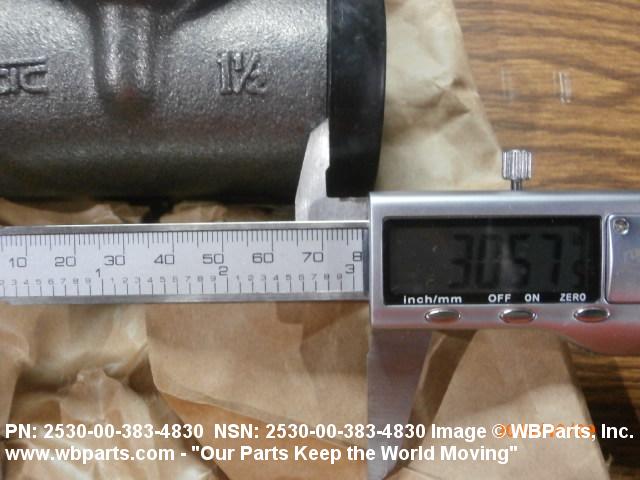

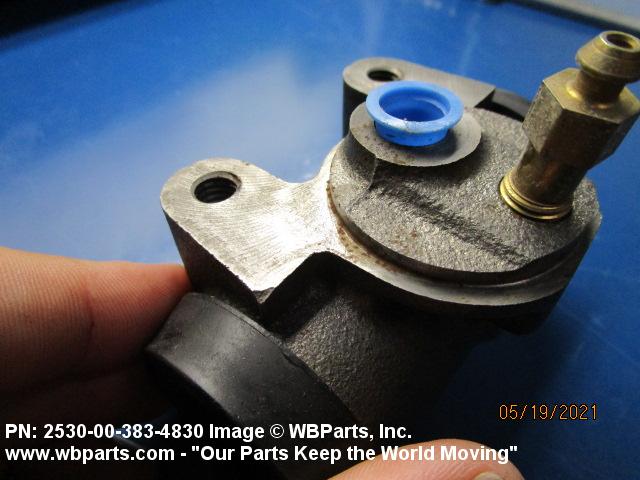

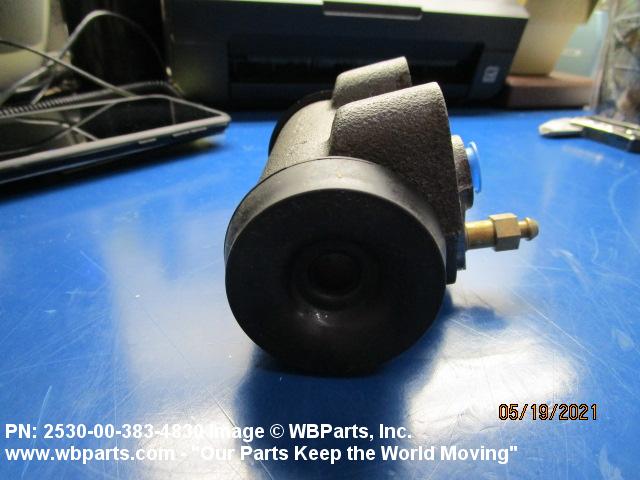

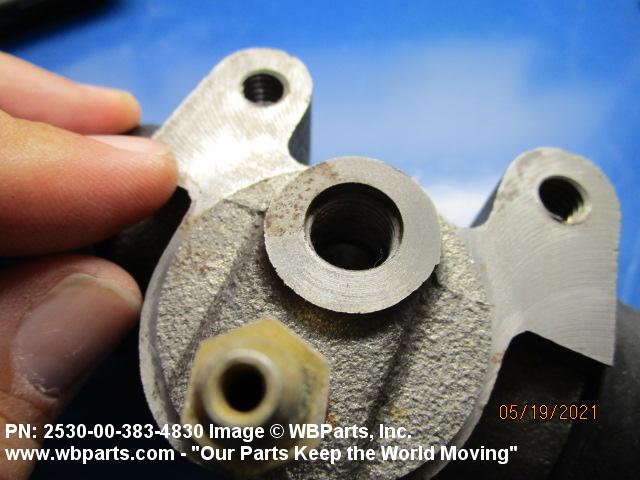

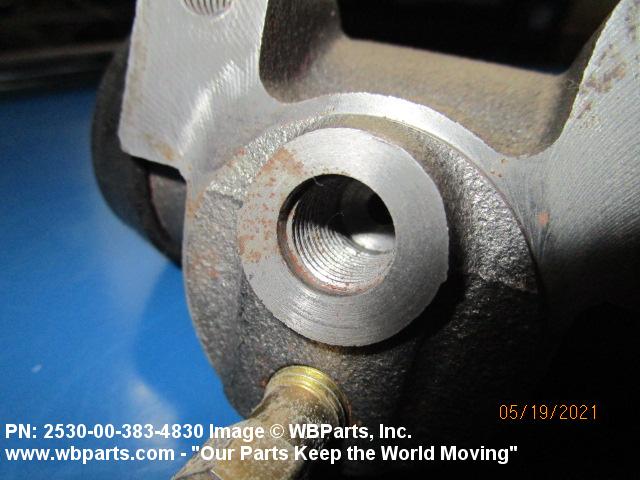

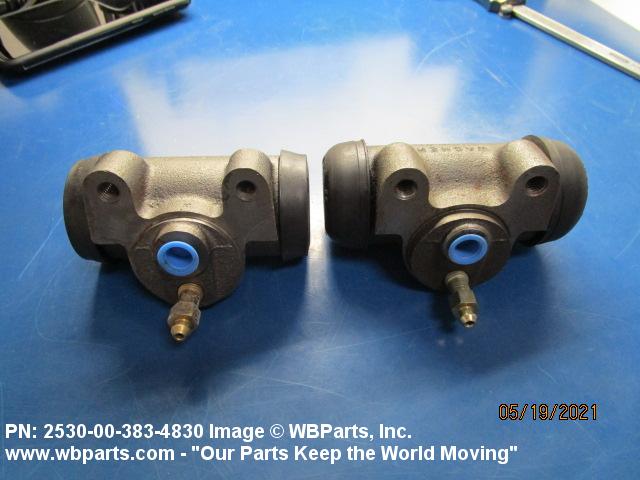

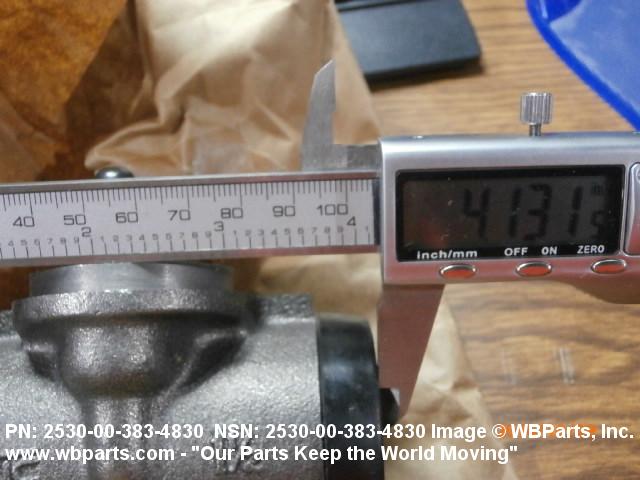

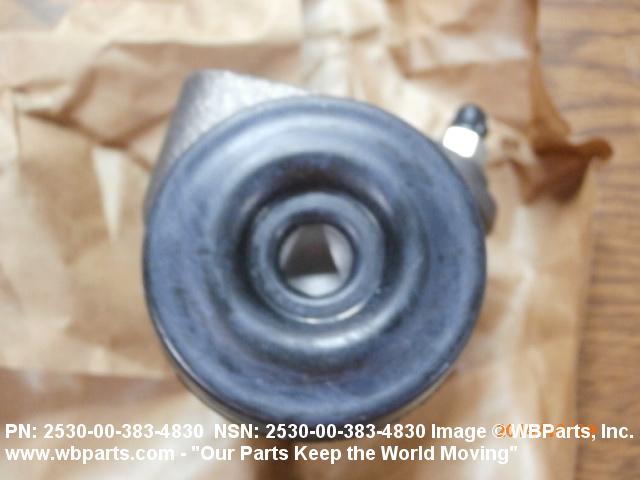

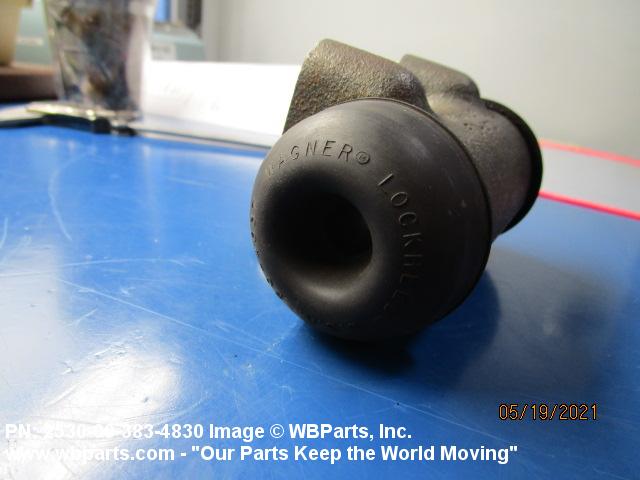

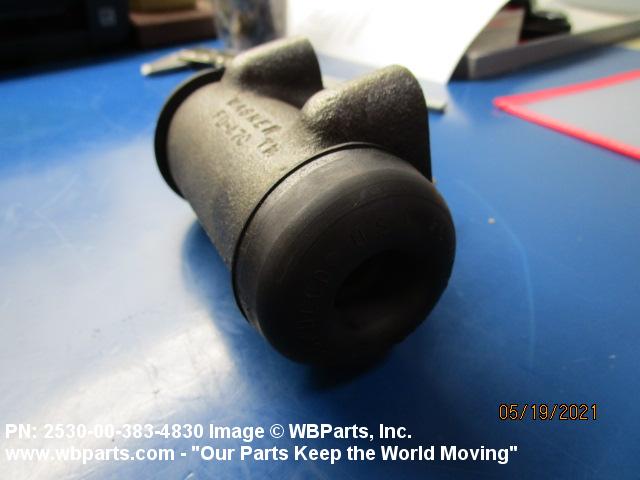

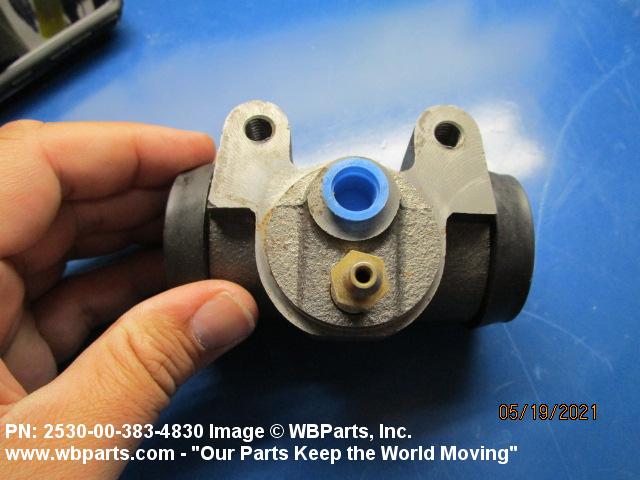

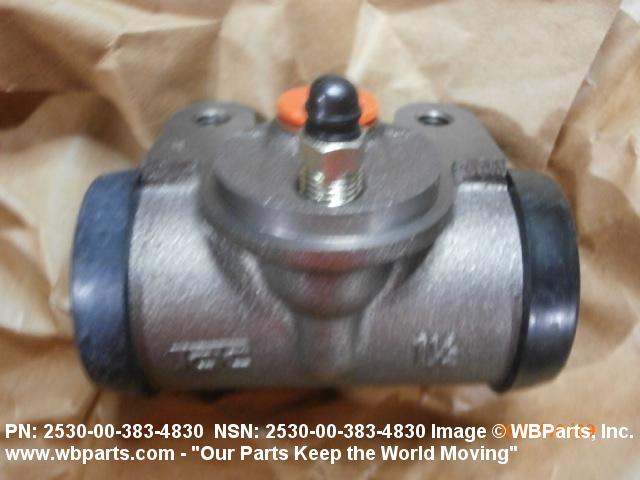

Drawings & Photos | NSN 2530-00-383-4830

Part Number	Request Date	QTY	Origin
2530-00-383-4830	2023-12-365	2	US
2530-00-383-4830	2021-11-316	2	CA
30071047	2021-03-89	2	Finland
2530-00-383-4830	2018-10-276	2	US
2530-00-383-4830	2018-10-275	2	US
2530-00-383-4830	2014-09-267	2	United States
61060R91	2013-11-309	2	US
3583	2012-05-133	1
61060R91	2010-07-207	1	US

Cross Reference | NSN 2530-00-383-4830

Part Number	Cage Code	Manufacturer
000-607-1001	16662	LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE
000-607-1001	66654	TVH PARTS CO.
000-607-2170	16662	LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE
000-607-2170	66654	TVH PARTS CO.
104667	29510	KOMATSU AMERICAN INTL CO
11BLHA14	76040	MACK TRUCKS INC PARTS OPN
127392	65282	WHITE MOTOR CORP
12EHW25	76040	MACK TRUCKS INC PARTS OPN
12EHW25	89619	MACK TRUCKS, INC. DBA MACUNGIE OPERATIONS
15537	78640	MITSUBISHI CATERPILLAR FORKLIFT AMERICA INC
16484F	56442	DIAMOND REO TRUCK CO
16485F	56442	DIAMOND REO TRUCK CO
172-380	76462	DELCO MORAINE DIV OF GENERAL MOTORS CORP
2001942	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
2106233	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
21694A	04627	NACCO MATERIALS HANDLING GROUP INC
21694A	30076	NACCO MATERIALS HANDLING GROUP INC DBA HYSTER
233713A	04627	NACCO MATERIALS HANDLING GROUP INC
233713A	30076	NACCO MATERIALS HANDLING GROUP INC DBA HYSTER
252M1	56442	DIAMOND REO TRUCK CO
253M1	56442	DIAMOND REO TRUCK CO
2WE110	45152	OSHKOSH CORPORATION
2WE110	75Q65	OSHKOSH DEFENSE, LLC
3007104-7	92392	ALLIS-CHALMERS CORP
303815	65282	WHITE MOTOR CORP
327635	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
327635	65282	WHITE MOTOR CORP
3583	06840	BENDIX CORP THE
3583	14892	BENDIX CORP THE BRAKE AND STEERING DIV
47107072	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
4717072	0AHU0	KALMAR AC INC
506566	12603	CLARK EQUIPMENT CO
506566	1X0J7	VOLVO CONSTRUCTION EQUIPMENT NORTH AMERICA, LLC
506566	40152	VME AMERICAS INC SUB OF VME GROUP N V
547318	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
61060R91	0SAT8	KOMATSU AMERICA CORP.
61060R91	29510	KOMATSU AMERICAN INTL CO
61060R91	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
6151445	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
6156059	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
644757	58275	SASCO INC CANADIAN DIV
6CFC746	23382	FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
6CFC746	65358	TRACKMOBILE INC.
6CFD470	23382	FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
746	19239	ECHLIN INC
74717072	0AHU0	KALMAR AC INC
90208	65282	WHITE MOTOR CORP
90209	65282	WHITE MOTOR CORP
A167702	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
A190837	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
B151445	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
C15022	65282	WHITE MOTOR CORP
C9532	65282	WHITE MOTOR CORP
DX3590H	56442	DIAMOND REO TRUCK CO
DX4759	56442	DIAMOND REO TRUCK CO
EW746	80724	EIS BRAKE PARTS DIV OF STANDARD MOTOR PRODUCTS INC
F746	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
FC746	02413	KERSEY / AMERICAN LAFRANCE A DIV OF FIGGIE INTERNATIONAL INC
FC746	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
FC746C	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
FD20945A	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
FD2958	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
FD470	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
W746	71425	AIRTEX PRODUCTS DIV OF UIS INC
WC746	66614	TRW INC REPLACEMENT PARTS DIV
WC746	76761	C. E. NIEHOFF & CO.
X10619	53762	SEAGRAVE CORP THE
X10660	53762	SEAGRAVE CORP THE
X12445	53762	SEAGRAVE CORP THE
X12684	53762	SEAGRAVE CORP THE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2530-00-383-4830

Compare

Related Products | NSN 2530-00-383-4830

2530-00-383-4833, 2530-00-383-4834, 2530-00-383-4838, 2530-00-383-4839, 2530-00-383-4851

Technical Data | NSN 2530-00-383-4830

Characteristic	Specifications
DESIGN CHARACTERISTICS	SINGLE ACTING SINGLE CYLINDER
OVERALL WIDTH	3.000 INCHES NOMINAL
OVERALL HEIGHT	2.688 INCHES NOMINAL
BODY MATERIAL	IRON, CAST
BORE TYPE	STRAIGHT
BORE DIAMETER	1.500 INCHES NOMINAL
(NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY	NOT INCLUDED
(NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY	NOT INCLUDED
MOUNTING TYPE AND LOCATION	FLANGE CENTER SECTION
MOUNTING PROVISION	THREADED MOUNTING HOLES
MOUNTING PROVISION ARRANGEMENT STYLE	1 TWO HOLE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING PROVISIONS	2.125 INCHES NOMINAL
MOUNTING FACILITY THREAD SERIES DESIGNATOR	UNC
MOUNTING FACILITY THREAD DIAMETER	0.375 INCHES NOMINAL
MOUNTING FACILITY THREAD QUANTITY PER INCH	16
MOUNTING FACILITY THREAD CLASS	2B
MOUNTING FACILITY THREAD DIRECTION	RIGHT-HAND
MOUNTING FACILITY THREAD LENGTH	0.625 INCHES NOMINAL
PORT LOCATION AND QUANTITY	1 CENTER SECTION
PORT STYLE	5 GASKET SEAL
PORT THREAD SERIES DESIGNATOR	UNF
PORT THREAD DIAMETER	0.500 INCHES NOMINAL
PORT THREAD QUANTITY PER INCH	20
PORT THREAD CLASS	2B
TEMP RATING	NOT RATED
MOUNTING POSITION	ANY ACCEPTABLE
BLEEDING FEATURE QUANTITY	1
FEATURES PROVIDED	BLEEDER VALVES AND RUBBER BOOT
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION	FEAT
III END ITEM IDENTIFICATION	3930-00-958-3682
MANUFACTURERS CODE	63477
DESIGN CONTROL REFERENCE	FC746

Restrictions/Controls & Freight Information | NSN 2530-00-383-4830

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	133300	MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	885	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2530-00-383-4830

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
