NSN 2530-00-352-9270 H8600, V3538, F4073
Product Details | FILLER OPENING CAP
2530-00-352-9270 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: H8600, V3538, F4073, FC2767, FC4073, FC4073B, FT10341, 01760-0416, 086958, 10018, 100-18, 10A9481, 10EHW14, 10F0491, 14Z23, 1760416, 1760-416, 23368W, 27599, 28035, 3.3328-0601.2, 3332806012, 355PC19, 4073B, 471726, 4753P11, 4B8987, 5167888, 636723, 69399, 6CFC4073, 857944, 882966, 91A2162A, 2530-00-352-9270, 00-352-9270, 2530003529270, 017600416, 003529270
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-352-9270 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 2530-00-352-9270
Cross Reference | NSN 2530-00-352-9270
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01760-0416 | 79343 | SCIENCE APPLICATIONS INTERNATIONAL CORPORATION |
| 01760-0416 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| 086958 | 24617 | GENERAL MOTORS CORP |
| 086958 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 100-18 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 100-18 | 92865 | MICO INC DBA MICO WEST |
| 10A9481 | 21910 | FEDERAL MOTOR TRUCK DIV OF NAPCO INDUSTRIES INC |
| 10A9481 | 95201 | NAPCO INTERNATIONAL LLC |
| 10EHW14 | 89619 | MACK TRUCKS, INC. DBA MACUNGIE OPERATIONS |
| 10F0491 | 04741 | WHITE MOTOR CORP OGDEN TRUCK PLANT |
| 10F0491 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 14Z23 | 27315 | MORRIS MATERIAL HANDLING, INC. |
| 1760-416 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| 23368W | 56442 | DIAMOND REO TRUCK CO |
| 27599 | 04627 | NACCO MATERIALS HANDLING GROUP INC |
| 27599 | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| 28035 | 56442 | DIAMOND REO TRUCK CO |
| 3.3328-0601.2 | D1304 | CONTINENTAL TEVES AG & CO. OHG |
| 355PC19 | 45152 | OSHKOSH CORPORATION |
| 355PC19 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 4073B | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| 471726 | 00447 | WABCO CONSTRUCTION AND MINING EQUIPMENT GROUP INDIANAPOLIS PLANT |
| 4753P11 | 27618 | TAYLOR MACHINE WORKS, INC. |
| 4753P11 | 90407 | M-R-S MFG CO |
| 4B8987 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| 5167888 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 636723 | 58275 | SASCO INC CANADIAN DIV |
| 69399 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 6CFC4073 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 857944 | 12603 | CLARK EQUIPMENT CO |
| 857944 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| 882966 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 91A2162A | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| 91A2162A | 57526 | FORD MOTOR CO |
| F4073 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC2767 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC4073 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC4073B | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FT10341 | 81240 | WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT INC |
| H8600 | 35311 | AMERICAN STANDARD INC WESTINGHOUSE AIR BRAKE CO DIV |
| V3538 | 65282 | WHITE MOTOR CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-352-9270
Related Products | NSN 2530-00-352-9270
Technical Data | NSN 2530-00-352-9270
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |

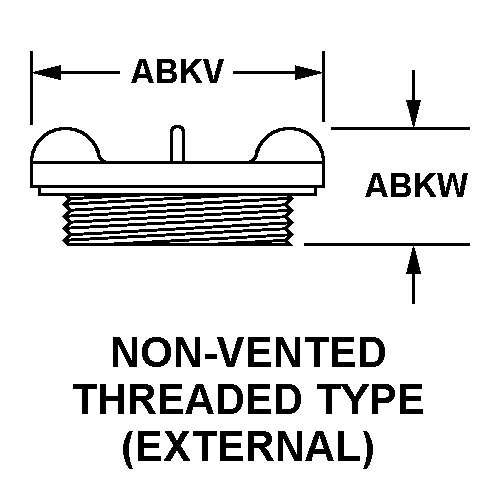

| STYLE DESIGNATOR | B37 NON-VENTED THREADED TYPE |
| OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.938 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |
| FILLER NECK DIAMETER FOR WHICH DESIGNED | 1.250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNEF |
| THREAD DIAMETER | 1.250 INCHES NOMINAL |
| THREAD CLASS | 2A |
| THREAD LENGTH | 0.188 INCHES NOMINAL |
| GRIPPING ACCOMMODATION TYPE | HANDLE |
| SPECIAL MARKINGS | BRAKE FLUID |
Restrictions/Controls & Freight Information | NSN 2530-00-352-9270
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-352-9270
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
