Product Details | PNEUMATIC TIRE WHEEL

2530-00-278-2248 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.202253000002610000000

Part Alternates: M46101526, M4610-15-26, M4746724, M4746-7-24, A0014561, A14561, A181088, C44490, GTB1015A, GTB1015A1, GTB1015A2, GTB1015B, 08407X, 14561, 2155363, 23978, 2508, 25497, 3109024, 3109238, 3661241, 42579, 44490, 47610D1, 52996, 581082, 60130D3, 602479, 666610, 82161, 82161B, 914119, 914-119, 2530-00-278-2248, 00-278-2248, 2530002782248, 002782248

Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components

Supply Group (FSG) NSN Assign. NIIN
25 01 JAN 1963 00-278-2248

Drawings & Photos | NSN 2530-00-278-2248


Demand History | NSN 2530-00-278-2248

Part Number Request Date QTY Origin
25497 2014-11-314 7 IN

Cross Reference | NSN 2530-00-278-2248

Part Number Cage Code Manufacturer
08407X 09386 ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
14561 83120 PRESSED METALS OF AMERICA INC
2155363 24617 GENERAL MOTORS CORP
2155363 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS
23978 33116 KELSEY-HAYES CO WHEEL DRUM AND BRAKE DIV
2508 0ATF2 L & L BOILER MAINTENANCE INC
2508 54108 D & J PARTS INC
25497 33116 KELSEY-HAYES CO WHEEL DRUM AND BRAKE DIV
3109024 73830 GERSTENLAGER CO THE
3109238 81829 HENDRICKSON STAMPING DIV OF HENDRICKSON INTERNATIONAL
3661241 24617 GENERAL MOTORS CORP
3661241 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS
42579 11743 CHECKER MOTORS CORPORATION
44490 66155 PORTA DRILL INC
44490 95019 DANA CORP SPICER TRANSMISSION DIV
47610D1 09386 ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
52996 23705 FRUEHAUF CORP
52996 75460 KRIEGER STEEL SECTIONS INC
581082 00006 ACF-BRILL MOTORS CO
60130D3 09386 ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
602479 0EXU3 AQUA-CHEM, INC.
602479 12793 AQUA-CHEM INC CLEAVER-BROOKS DIV
666610 58275 SASCO INC CANADIAN DIV
82161 14234 GREAT DANE TRAILERS INC
82161 41885 HAYES WHEELS INTL INC AKRON OPNS
82161B 40670 MILLER TRAILERS INC
82161B 41885 HAYES WHEELS INTL INC AKRON OPNS
82161B 90023 CENTRAL CAN CO INC
914-119 0EXU3 AQUA-CHEM, INC.
914-119 12793 AQUA-CHEM INC CLEAVER-BROOKS DIV
A0014561 22852 SPALLA INC
A14561 34623 AM GENERAL, LLC
A181088 56721 PREMIER CENTRAL TRUCK BODY
C44490 09386 ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
GTB1015A 23040 FORD MOTOR CO FORD PARTS AND SERVICE DIV
GTB1015A 57526 FORD MOTOR CO
GTB1015A1 23040 FORD MOTOR CO FORD PARTS AND SERVICE DIV
GTB1015A2 23040 FORD MOTOR CO FORD PARTS AND SERVICE DIV
GTB1015B 23040 FORD MOTOR CO FORD PARTS AND SERVICE DIV
M4610-15-26 0L8N4 AMFS AMERICAN FLEET SERVICES
M4746-7-24 0L8N4 AMFS AMERICAN FLEET SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2530-00-278-2248

Technical Data | NSN 2530-00-278-2248

Characteristic Specifications
TIRE RIM NOMINAL DIAMETER 20.000 INCHES
TIRE NOT INCLUDED
DESIGN FORM DISK
DISK TYPE SINGLE
MOUNTING FACE TYPE CONVEX
OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE 5.125 INCHES MINIMUM AND 5.250 INCHES MAXIMUM
LIGHTENING HOLE INCLUDED
LIGHTENING HOLE QUANTITY 6
LIGHTENING HOLE HUB CAP MOUNTING FEATURE NOT INCLUDED
DESIGN TYPE INTEGRAL RIM
GROOVE DEPTH 1.312 INCHES NOMINAL
OVERALL WIDTH 6.000 INCHES NOMINAL
EFFECTIVE WIDTH 4.938 INCHES NOMINAL
RING TYPE FOR WHICH DESIGNED SIDE
RING NOT INCLUDED

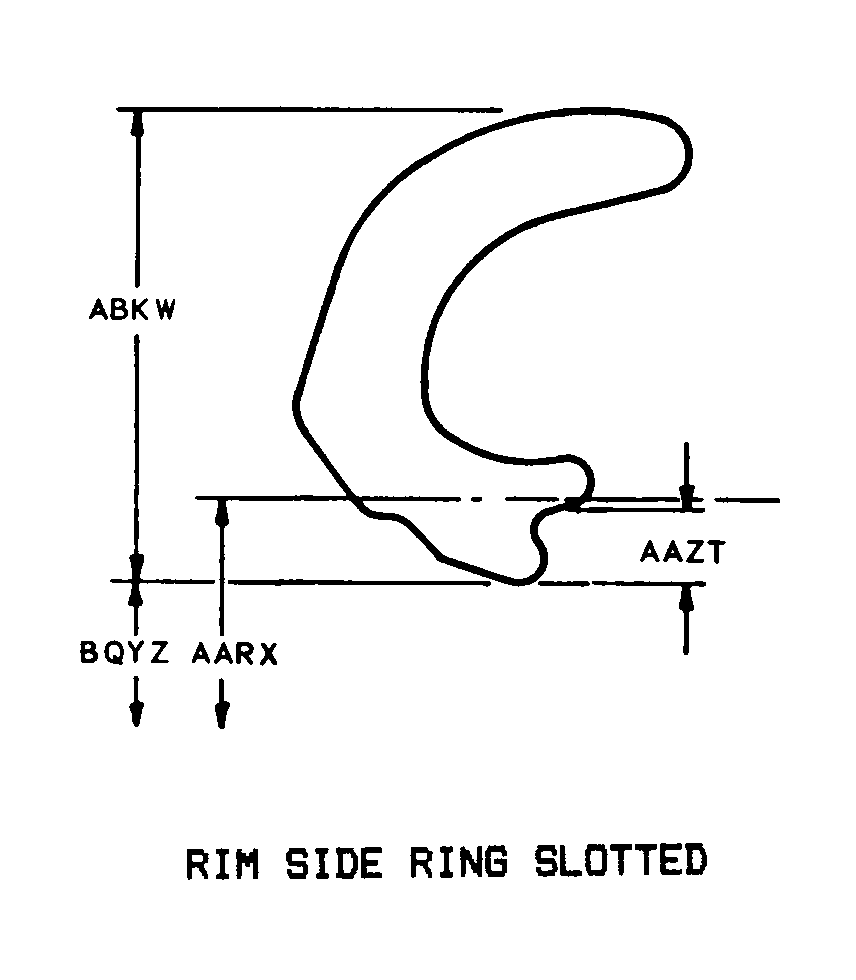

RING STYLE D3 RIM SIDE RING SLOTTED
BOLT/STUD MOUNTING FACILITY NOT INCLUDED
VALVE HOLE SHAPE SLOTTED
MOUNTING TYPE FOR WHICH DESIGNED SINGLE TIRE
HUB CHARACTERISTIC DEMOUNTABLE
HUB NOT INCLUDED
PILOT HOLE DIAMETER 6.438 INCHES NOMINAL
MOUNTING HOLE QUANTITY 6
MOUNTING HOLE DIAMETER 1.281 INCHES NOMINAL
MOUNTING BOLT CIRCLE DIAMETER 8.745 INCHES MINIMUM AND 8.755 INCHES MAXIMUM
MANUFACTURERS CODE 23040
DESIGN CONTROL REFERENCE GTB1015A

Restrictions/Controls & Freight Information | NSN 2530-00-278-2248

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 197592 WHEELS NOI
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 586 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2530-00-278-2248

Category Code Description
Cognizance Codes9ANavy-owned stocks of parts peculiar to combat and tactical vehicles of Army design
Naval Inventory Control Point, Mechanicsburg
Source of SupplyAKZUS Army Tank-Automotive and Armaments Command
Warren, MI 48397-5000
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
