NSN 2530-00-194-1750 FE22565, 38Z39, 00-194-1750

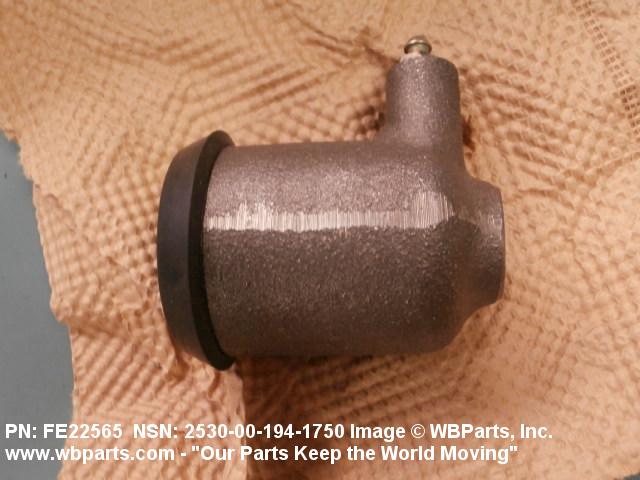

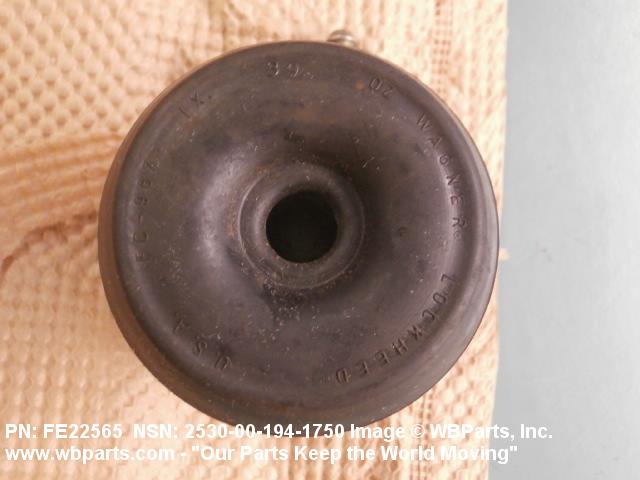

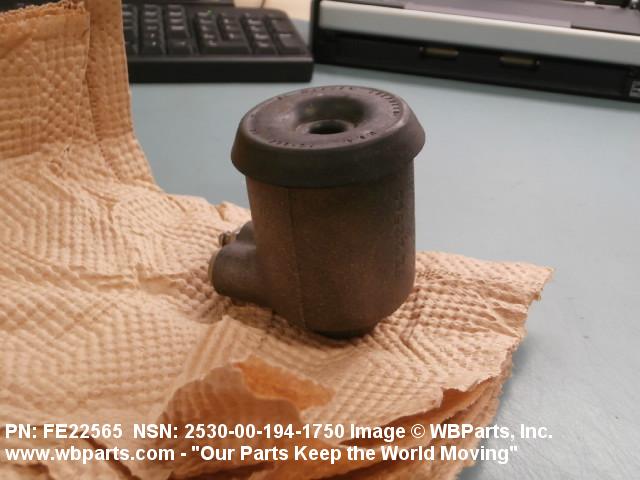

Product Details | WHEEL HYDRAULIC BRAKE CYLINDER
2530-00-194-1750 A cylinder designed to house the piston and other necessary component parts of a CYLINDER ASSEMBLY, HYDRAULIC BRAKE, WHEEL.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: FE22565, 38Z39, 2530-00-194-1750, 00-194-1750, 2530001941750, 001941750
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 11 MAR 1970 | 00-194-1750 | 10861 ( CYLINDER, HYDRAULIC BRAKE, WHEEL ) |
Drawings & Photos | NSN 2530-00-194-1750
Demand History | NSN 2530-00-194-1750
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-194-1750 | 2015-03-76 | 10 | NL |
| 2530-00-194-1750 | 2015-01-06 | 4 | MX |
| 2530-00-194-1750 | 2014-07-195 | 10 | MX |
| 2530-00-194-1750 | 2013-11-309 | 4 | United States |
| 38Z39 | 2012-11-333 | 6 | UK |
| 2530-00-194-1750 | 2010-07-211 | 4 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-194-1750
Related Products | NSN 2530-00-194-1750
Technical Data | NSN 2530-00-194-1750
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| OVERALL WIDTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.250 INCHES NOMINAL |
| BODY MATERIAL | IRON, CAST |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 1.750 INCHES NOMINAL |
| MOUNTING TYPE AND LOCATION | BOSS CYLINDER HEAD END |
| PORT LOCATION AND QUANTITY | 1 CYLINDER HEAD END |
| PORT STYLE | 5 GASKET SEAL |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.438 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 20 |
| PORT THREAD CLASS | 2B |
| TEMP RATING | NOT RATED |
| MOUNTING POSITION | ANY ACCEPTABLE |
| BLEEDING FEATURE QUANTITY | 1 |
| FEATURES PROVIDED | BLEEDER VALVES AND RUBBER BOOT |
| SPECIAL FEATURES | ONE 1/2-20 UNF 2B THD HOLE IN MOUNTING BOSS |
| III END ITEM IDENTIFICATION | HARNISCHFEGER CORP.;MODEL M320T2,CRANE TRUCK MOUNTED,NSN 3810-00-151-4431 |
