Product Details | DIRT AND LIQUID DEFLECTOR
2530-00-134-5109 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.21516150056Helicopter Rotor Blades, Drive Mechanisms and Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment16800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25400035Vehicular Furniture and Accessories28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components29950042Miscellaneous Engine Accessories, Aircraft43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps49300041Lubrication and Fuel Dispensing Equipment53400020Hardware, Commercial
Part Alternates: 10896706, 2530-00-134-5109, 00-134-5109, 2530001345109, 001345109
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 10 SEP 1969 | 00-134-5109 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
Drawings & Photos | NSN 2530-00-134-5109
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-134-5109
Technical Data | NSN 2530-00-134-5109
| Characteristic | Specifications |
|---|---|

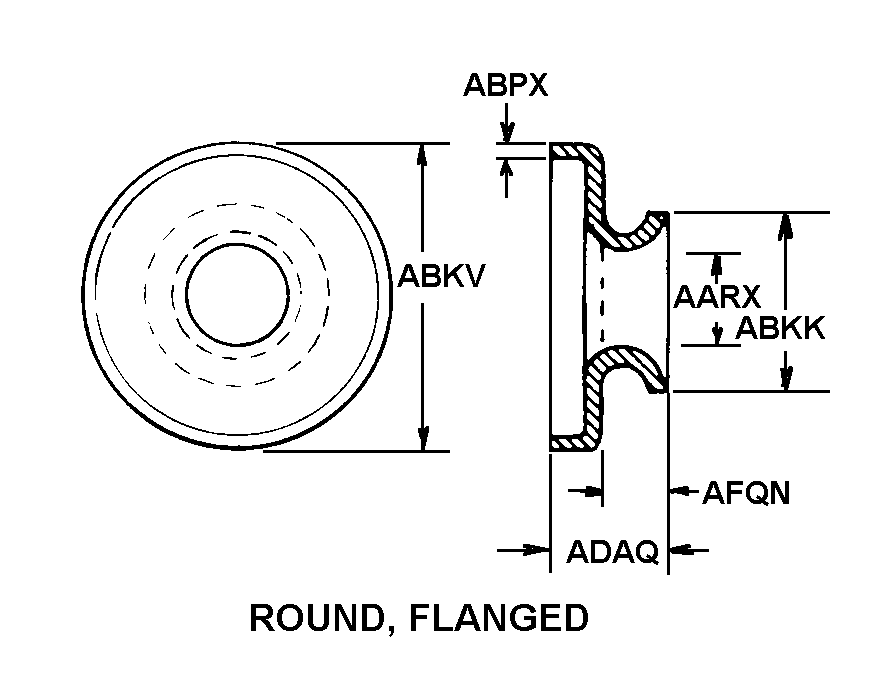

| STYLE DESIGNATOR | 13 ROUND, FLANGED |
| INSIDE DIAMETER | 8.250 INCHES NOMINAL |
| FLANGE DIAMETER | 8.687 INCHES MINIMUM AND 8.844 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 13.125 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.060 INCHES NOMINAL |
| BODY LENGTH | 0.687 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| FLANGE LENGTH | 0.377 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| MATERIAL | STEEL, QQ-S-698 AND STEEL, FED STD 66, AISI/SAE 1010 AND STEEL, FED STD 66, AISI/SAE 1020 |
| SURFACE TREATMENT | PAINT, PRIMER, TT-P-636 |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE QUANTITY | 10 |
| MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 12.250 INCHES NOMINAL |
| ANGLE BETWEEN CENTERLINES OF MOUNTING HOLES IN DEG | 36.0 |
Restrictions/Controls & Freight Information | NSN 2530-00-134-5109
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019490 | AUTO PARTS: SHIELDS,BRAKE DUST |
| Less than car load rating | ||
| Less than truck load rating | B | 300.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
