Product Details | AIR BRAKE EMERGENCY-BREAKAWAY RELAY VALVE

2530-00-118-8589

Part Alternates: MS530041, MS53004-1, N3714W, N4171D, 2530-00-118-8589, 00-118-8589, 2530001188589, 001188589

Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components

Supply Group (FSG) NSN Assign. NIIN
25 14 OCT 1968 00-118-8589

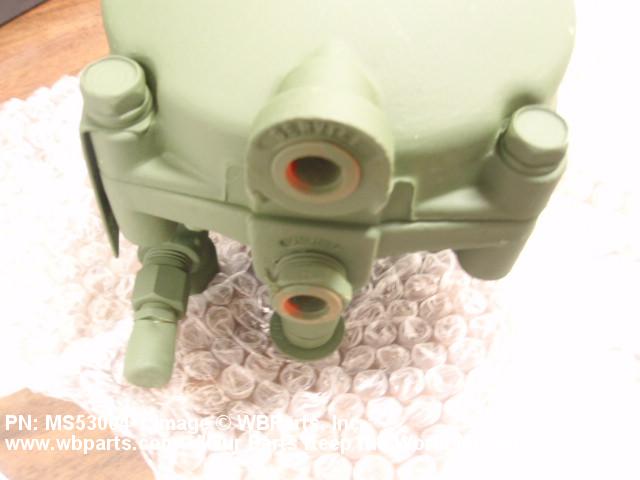

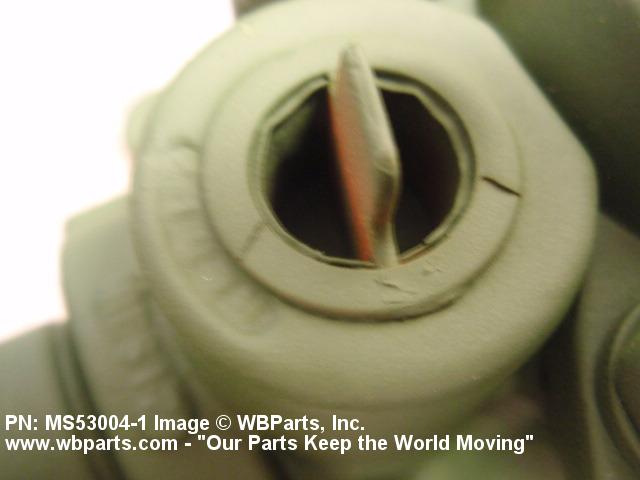

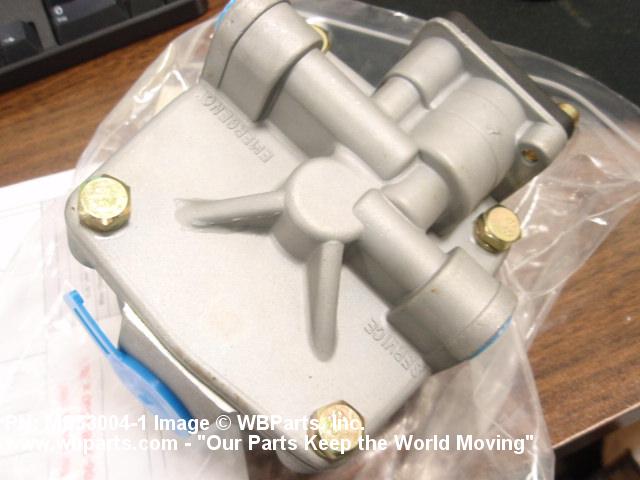

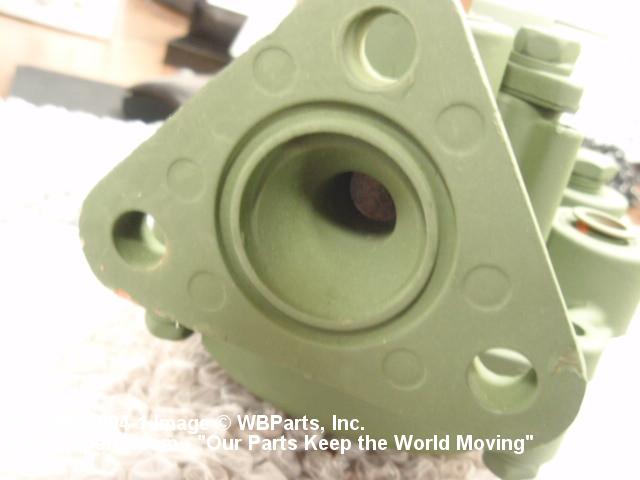

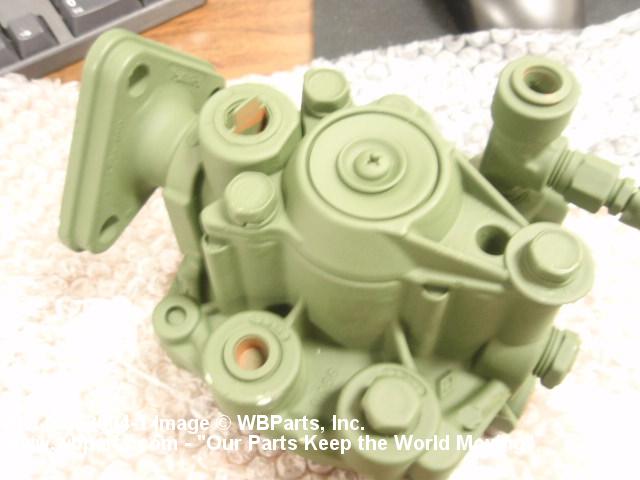

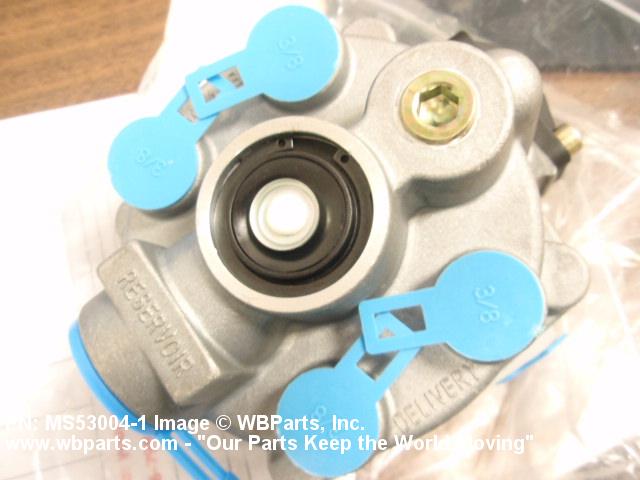

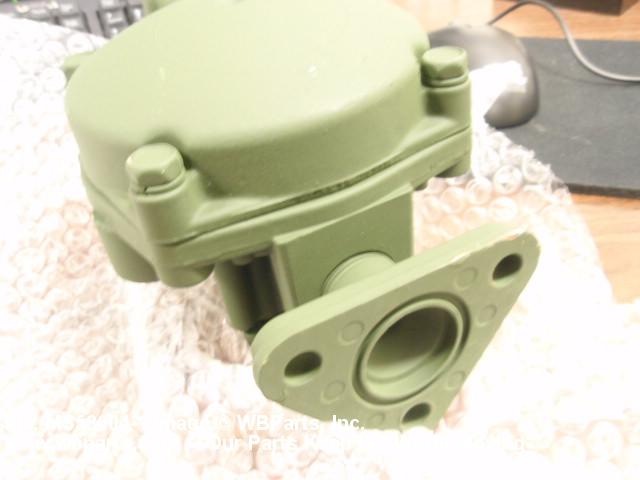

Drawings & Photos | NSN 2530-00-118-8589


Demand History | NSN 2530-00-118-8589

Part Number Request Date QTY Origin
2530-00-118-8589 2020-06-157 1 NL
2530-00-118-8589 2020-06-157 1 NL
MS530041 2019-03-66 100 US
2530-00-118-8589 2017-12-341 16 US
2530-00-118-8589 2011-10-299 4 United States
2530-00-118-8589 2011-09-256 4 United States
MS530041 2011-07-207 39 Greece
2530-00-118-8589 2011-07-202 4 United States
2530-00-118-8589 2010-07-208 6 United States
2530-00-118-8589 2010-07-197 6 United States

Cross Reference | NSN 2530-00-118-8589

Part Number Cage Code Manufacturer
2530001188589 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
MS53004-1 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N3714W 06721 HALDEX BRAKE PRODUCTS CORPORATION DIV BREAK PRODUCTS DIVISION
N3714W 97554 BOND LUMBER AND MILLWORK CORP
N4171D 06721 HALDEX BRAKE PRODUCTS CORPORATION DIV BREAK PRODUCTS DIVISION
N4171D 97554 BOND LUMBER AND MILLWORK CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2530-00-118-8589

Technical Data | NSN 2530-00-118-8589

Characteristic Specifications
GENERAL CHARACTERISTICS ITEM DESCRIPTION 10.000 IN. HEIGHT,7.750 IN LG,7.250 IN. WIDE,TRIANGLUR FLANGE MTD,THREE HOLES 0.406 IN. DIA
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS53004-1

Restrictions/Controls & Freight Information | NSN 2530-00-118-8589

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 018400 AUTO BRAKES/SHOES R PADS ETC
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 581 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2530-00-118-8589

Category Code Description
Cognizance Codes9CNavy-owned stocks of defense construction material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9CDefense Supply Center Columbus
Columbus, OH 43215
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
