NSN 2530-00-021-2386 112217, 00-021-2386, 000212386
Product Details | DIRT AND LIQUID DEFLECTOR
2530-00-021-2386 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.21516150056Helicopter Rotor Blades, Drive Mechanisms and Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment16800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25400035Vehicular Furniture and Accessories28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components29950042Miscellaneous Engine Accessories, Aircraft43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps49300041Lubrication and Fuel Dispensing Equipment53400020Hardware, Commercial
Part Alternates: 112217, 2530-00-021-2386, 00-021-2386, 2530000212386, 000212386
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 27 APR 1967 | 00-021-2386 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
Drawings & Photos | NSN 2530-00-021-2386
Cross Reference | NSN 2530-00-021-2386
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112217 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-021-2386
Technical Data | NSN 2530-00-021-2386
| Characteristic | Specifications |
|---|---|

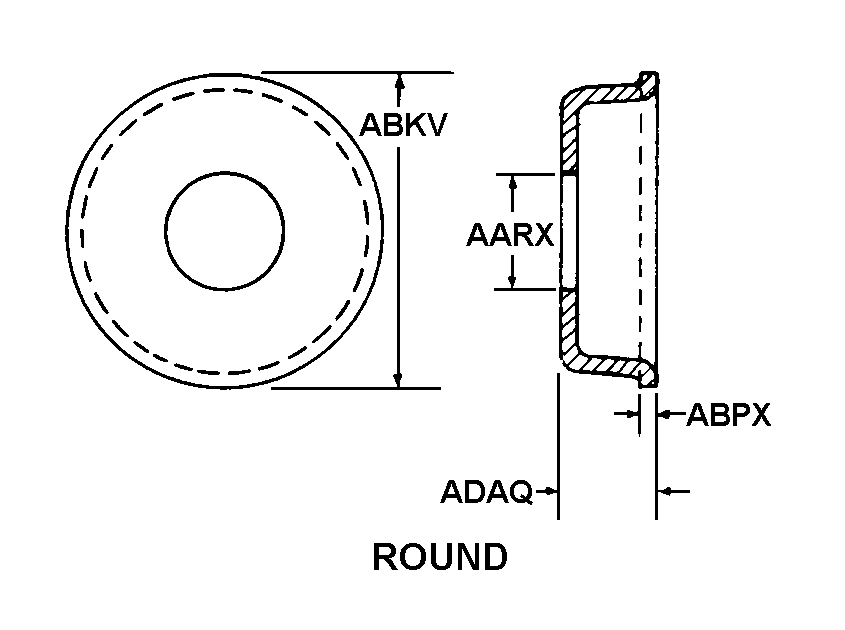

| STYLE DESIGNATOR | 27 ROUND |
| INSIDE DIAMETER | 8.375 INCHES NOMINAL |
| OUTSIDE DIAMETER | 13.438 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| BODY LENGTH | 3.656 INCHES NOMINAL |
| MATERIAL | STEEL |
| III END ITEM IDENTIFICATION | CLARK MODEL 290M;TRACTOR,WHEELED,IND.,DIESEL DRIVEN;MED DBP,NSN 2420000889384,W/ROPS NSN 2420010590090 |
Restrictions/Controls & Freight Information | NSN 2530-00-021-2386
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019480 | AUTO SHIELDS/GUARDS/FLAPS SUB3 |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
