NSN 2520-01-114-7689 10085665 , 12308237, 01-114-7689
Product Details | VEHICULAR UNIVERSAL JOINT YOKE
2520-01-114-7689 A component of a universal joint designed for vehicular applications. Consists of a fork-like device to accommodate the spider and bearings of a universal joint by various attaching methods. The opposite end must have either a flange, hub, or splined stub shaft which is designed to be attached to a driving or driven member. For items with a shaft, the length of the plain portion must not exceed the length of the splines.
Part Alternates: 10085665 , 12308237, 2520-01-114-7689, 01-114-7689, 2520011147689, 011147689
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 22 JUN 1981 | 01-114-7689 | 52120 ( YOKE, UNIVERSAL JOINT, VEHICULAR ) |

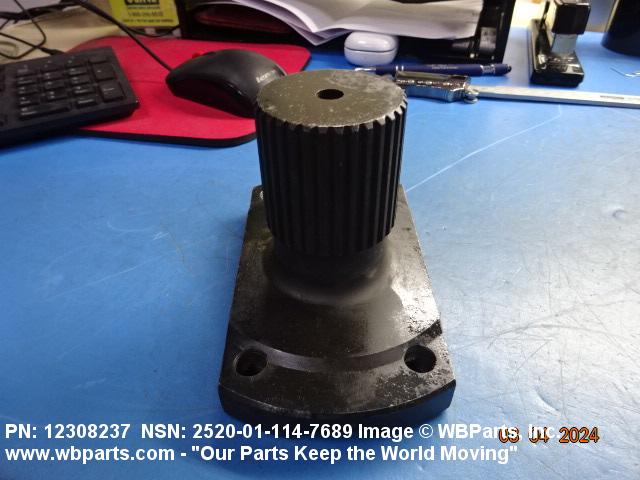

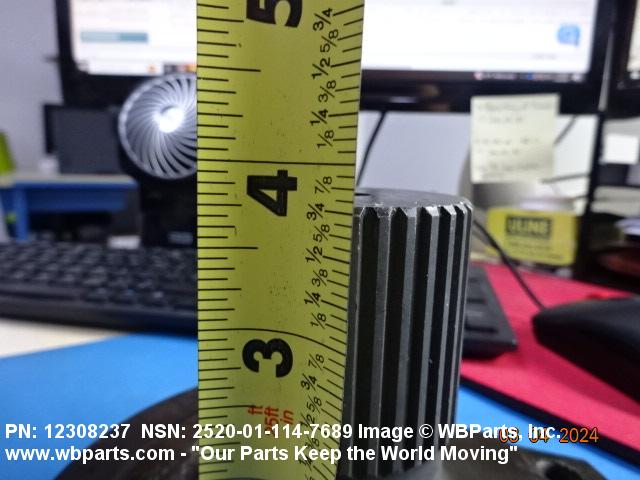

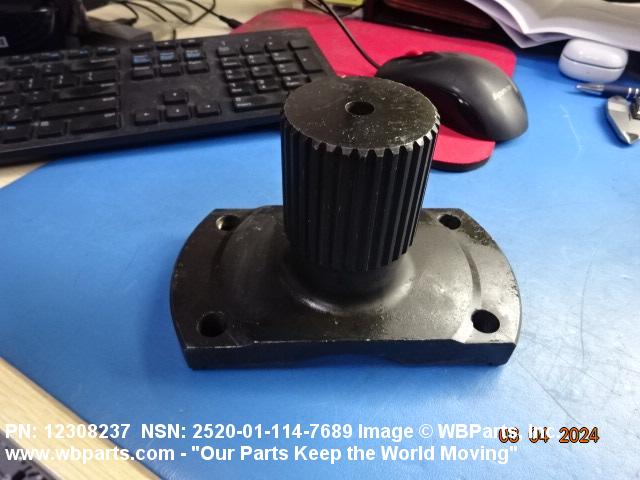

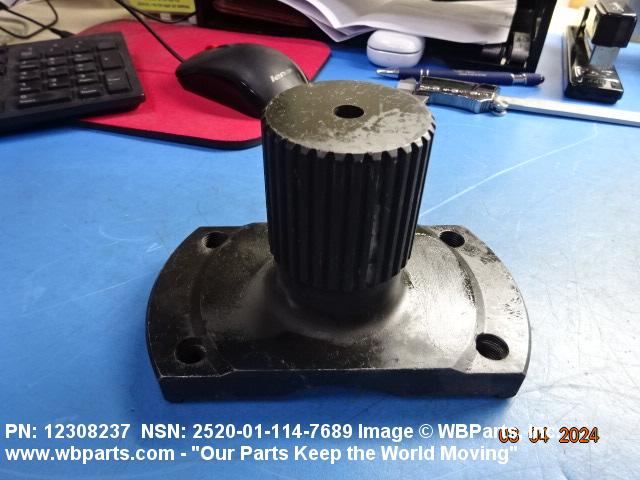

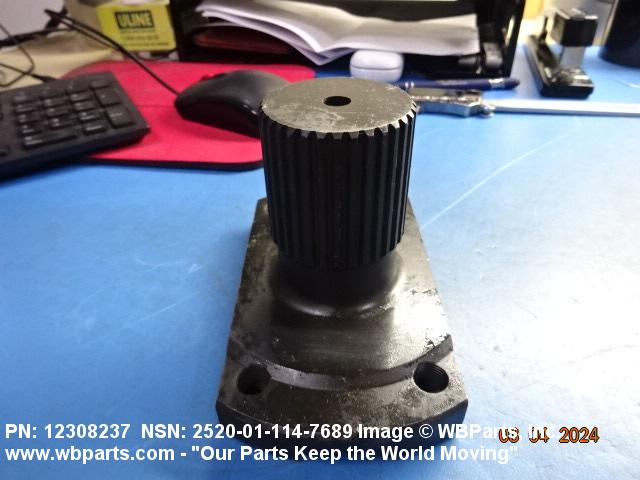

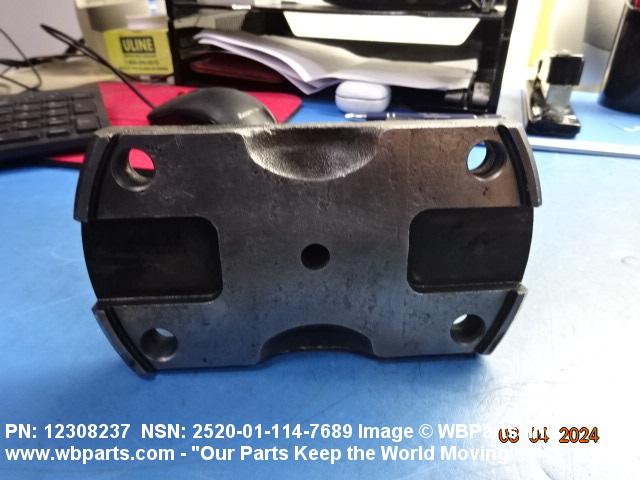

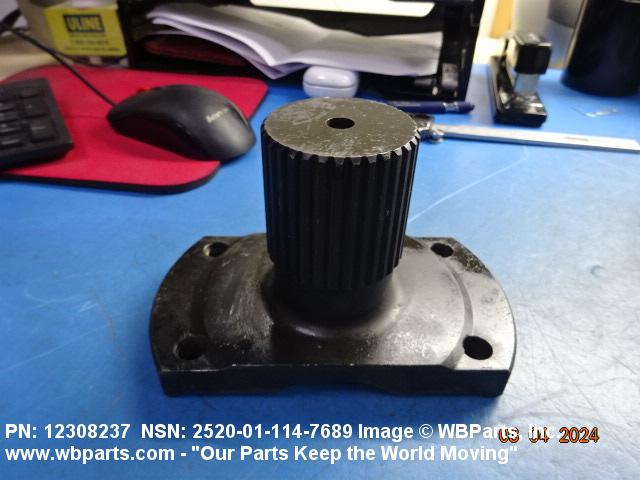

Drawings & Photos | NSN 2520-01-114-7689
Demand History | NSN 2520-01-114-7689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2520-01-114-7689 | 2024-11-312 | 30 | DIBBS |
| 2520-01-114-7689 | 2024-09-270 | 272 | DIBBS |
| 2520-01-114-7689 | 2024-09-259 | 272 | DIBBS |
| 2520-01-114-7689 | 2024-09-246 | 272 | DIBBS |
| 2520-01-114-7689 | 2024-06-156 | 94 | DIBBS |
| 2520-01-114-7689 | 2024-05-144 | 94 | DIBBS |
| 2520-01-114-7689 | 2024-05-133 | 94 | DIBBS |
| 2520-01-114-7689 | 2024-03-89 | 212 | DIBBS |
| 2520-01-114-7689 | 2024-03-89 | 243 | DIBBS |
| 2520-01-114-7689 | 2024-03-78 | 212 | DIBBS |
| 2520-01-114-7689 | 2024-03-74 | 243 | DIBBS |
| 2520-01-114-7689 | 2024-03-67 | 212 | DIBBS |
| 2520-01-114-7689 | 2024-02-59 | 243 | DIBBS |
| 2520-01-114-7689 | 2024-01-19 | 3 | United Kingdom |
| 2520-01-114-7689 | 2024-01-19 | 3 | United Kingdom |
| 2520-01-114-7689 | 2023-07-183 | 104 | DIBBS |
| 2520-01-114-7689 | 2023-06-170 | 104 | DIBBS |
| 2520-01-114-7689 | 2023-03-81 | 185 | DIBBS |
| 2520-01-114-7689 | 2023-03-66 | 185 | DIBBS |
| 2520-01-114-7689 | 2023-02-51 | 185 | DIBBS |
| 2520-01-114-7689 | 2022-02-38 | 307 | DIBBS |
| 2520-01-114-7689 | 2022-01-27 | 307 | DIBBS |
| 2520-01-114-7689 | 2021-12-350 | 13 | DIBBS |
| 2520-01-114-7689 | 2021-12-337 | 289 | DIBBS |
| 2520-01-114-7689 | 2021-12-337 | 242 | DIBBS |
| 2520-01-114-7689 | 2021-11-326 | 242 | DIBBS |
| 2520-01-114-7689 | 2021-11-322 | 289 | DIBBS |
| 2520-01-114-7689 | 2021-10-290 | 98 | DIBBS |
| 2520-01-114-7689 | 2021-08-235 | 100 | DIBBS |
| 2520-01-114-7689 | 2021-08-224 | 100 | DIBBS |
| 2520-01-114-7689 | 2021-07-196 | 29 | DIBBS |
| 2520-01-114-7689 | 2021-06-181 | 28 | DIBBS |
| 2520-01-114-7689 | 2020-06-170 | 73 | DIBBS |
| 2520-01-114-7689 | 2020-06-159 | 288 | DIBBS |
| 2520-01-114-7689 | 2019-12-335 | 87 | DIBBS |
| 2520-01-114-7689 | 2018-11-326 | 204 | DIBBS |
| 2520-01-114-7689 | 2018-10-289 | 92 | DIBBS |
| 2520-01-114-7689 | 2018-09-245 | 158 | US |
| 12308237 | 2018-08-241 | 158 | US |
| 2520-01-114-7689 | 2018-08-240 | 158 | DIBBS |
| 2520-01-114-7689 | 2018-07-185 | 152 | DIBBS |
| 2520-01-114-7689 | 2018-03-80 | 49 | DIBBS |
| 2520-01-114-7689 | 2018-01-21 | 49 | DIBBS |
| 2520-01-114-7689 | 2017-12-340 | 66 | DIBBS |
| 2520-01-114-7689 | 2017-09-269 | 452 | DIBBS |
| 2520-01-114-7689 | 2017-08-241 | 269 | DIBBS |
| 2520-01-114-7689 | 2017-08-221 | 152 | DIBBS |
| 2520-01-114-7689 | 2017-06-159 | 74 | DIBBS |
| 2520-01-114-7689 | 2015-11-316 | 35 | DIBBS |
| 2520-01-114-7689 | 2015-09-258 | 1 | DIBBS-RFPs |
| 2520-01-114-7689 | 2015-05-133 | 75 | DIBBS |
| 2520-01-114-7689 | 2015-04-92 | 157 | DIBBS |
| 2520-01-114-7689 | 2015-03-82 | 132 | DIBBS |
| 2520-01-114-7689 | 2014-10-303 | 132 | DIBBS |
| 2520-01-114-7689 | 2009-05-141 | 1 | DIBBS |
| 2520-01-114-7689 | 2009-05-134 | 1 | DIBBS |
| 2520-01-114-7689 | 2008-08-239 | 491 | DIBBS |
| 2520-01-114-7689 | 2008-05-122 | 7 | DIBBS |
Cross Reference | NSN 2520-01-114-7689
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12308237 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2520-01-114-7689
Related Products | NSN 2520-01-114-7689
Technical Data | NSN 2520-01-114-7689
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 3.730 INCHES NOMINAL |
| CONNECTION TYPE | SHAFT,INVOLUTE SPLINE |
| SHAFT SPLINE QUANTITY | 33 |
| EXTERNAL SHAFT SPLINE MAJOR DIAMETER | 2.1010 INCHES MINIMUM AND 2.1085 INCHES MAXIMUM |
| SPECIAL FEATURES | OVERALL HEIGHT 6.00 IN; OVERALL WIDTH 3.20 IN; EXTERNAL INVOLUTE SPLINES FLAT ROOT SIDE FIT - 33 TEETH/2.00 IN LONG; MATERIAL-FORGING STEEL OR STEEL ALLOY; QUENCH & TEMPER TO ROCKWELL C38 THRU C44; PHOSPHATE COAT; MATING SPLINE PART NUMBER 11629112 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | YOKE,TRANSMISSION |
Restrictions/Controls & Freight Information | NSN 2520-01-114-7689
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2520-01-114-7689
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
