NSN 2520-00-996-0640 220167, 00-996-0640, 009960640
Product Details | SHIFTER FORK
2520-00-996-0640 An item having two or more prongs which may have transverse hole(s), slot(s), dowel pin(s), pad(s), in or on the end of each prong, to provide a means to accomplish the engagement or disengagement of gear(s), shaft(s), clutch, or the like. The opposite end has facilities for a shaft, lever, or the like. This item is designed to be used on vehicular applications such as automobiles, tanks, construction equipment, and the like.
Part Alternates: 220167, 2520-00-996-0640, 00-996-0640, 2520009960640, 009960640
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-996-0640 | 52051 ( SHIFTER FORK, VEHICULAR ) |
Drawings & Photos | NSN 2520-00-996-0640
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2520-00-996-0640
Technical Data | NSN 2520-00-996-0640
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

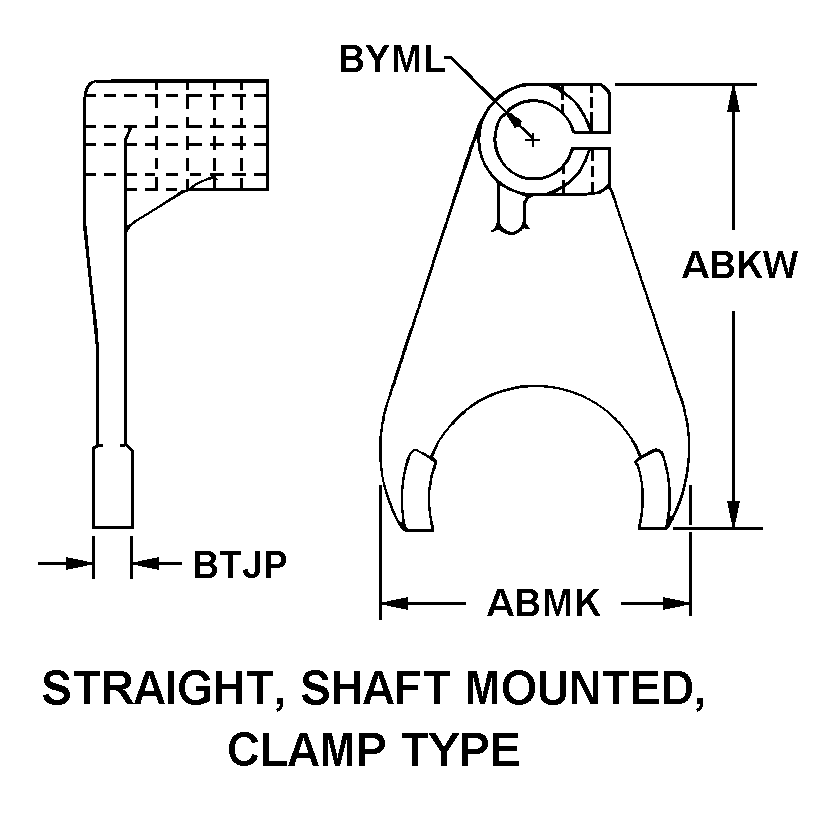

| STYLE DESIGNATOR | A3 STRAIGHT, SHAFT MOUNTED, CLAMP TYPE |
| FORK END WIDTH | 0.313 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.719 INCHES NOMINAL |
| SPECIAL FEATURES | BORE LENGTH: 1.746 IN. NOMINAL; FORK WIDTH: 3.410 IN. NOMINAL; SECURING HOLE SIZE: 0.328 IN. DIA; DISTANCE FROM MOUNTING FACILITY CENTERLINE TO ARCH CENTERLINE: 7.000 IN. NOMINAL |
Restrictions/Controls & Freight Information | NSN 2520-00-996-0640
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
