NSN 2520-00-758-0052 A3802C1251, A3802L125, A3802-L-125
Product Details | AUTOMOTIVE AXLE SHAFT
2520-00-758-0052 A shaft which is a component of AXLE ASSEMBLY, AUTOMOTIVE, DRIVING, used to transmit rotary motion from the differential assembly either directly or indirectly to the wheel hubs. Excludes shafts with a universal joint or a component of a universal joint attached to it.
Part Alternates: A3802C1251, A3802L125, A3802-L-125, A3802L1251, 15193, 3802C1251, 2520-00-758-0052, 00-758-0052, 2520007580052, 007580052
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1960 | 00-758-0052 | 10852 ( SHAFT, AXLE, AUTOMOTIVE ) |

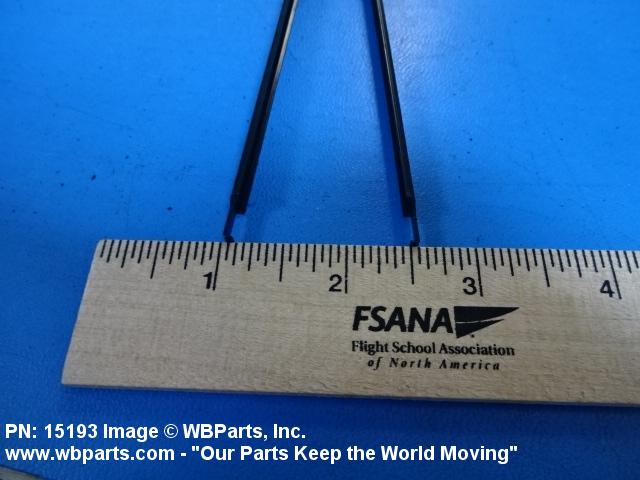

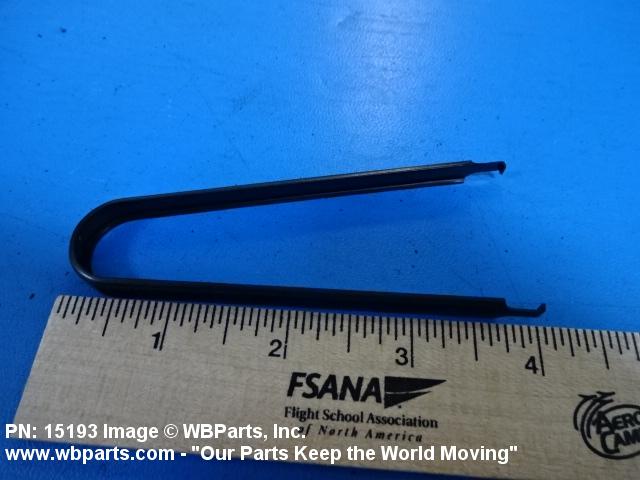

Drawings & Photos | NSN 2520-00-758-0052
Demand History | NSN 2520-00-758-0052
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 15193 | 2021-08-236 | 8 | US |
| 15193 | 2014-06-155 | 1 | United States |
Cross Reference | NSN 2520-00-758-0052
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15193 | 44185 | NMC/WOLLARD, INC. |
| 3802C1251 | 29637 | S & S TRUCK PARTS, INC. |
| 3802C1251 | 56152 | ELDER AND CO |
| 3802C1251 | 79780 | MERITOR HEAVY VEHICLE SYSTEMS LLC OFF HIGHWAY PRODUCTS AND SUPPLY DIV |
| A3802C1251 | 3D6E9 | AXLETECH INTERNATIONAL, LLC |
| A3802C1251 | 79780 | MERITOR HEAVY VEHICLE SYSTEMS LLC OFF HIGHWAY PRODUCTS AND SUPPLY DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2520-00-758-0052
Related Products | NSN 2520-00-758-0052
Technical Data | NSN 2520-00-758-0052
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| OVERALL LENGTH | 21.000 INCHES NOMINAL |
| FIRST END TYPE | SPLINED |
| FIRST END SPLINE TYPE | INVOLUTE |
| FIRST END SPLINE QUANTITY | 20 |
| FIRST END SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| FIRST END PITCH DIAMETER | 1.812 INCHES NOMINAL |
| FIRST END SPLINE LENGTH | 2.188 INCHES NOMINAL |
| FIRST END SPLINE MAJOR DIAMETER | 1.875 INCHES NOMINAL |
| FIRST END SPLINE MINOR DIAMETER | 1.745 INCHES NOMINAL |
| FIRST END BEARING SEAT | INCLUDED |
| FIRST END BEARING SEAT DIAMETER | 2.000 INCHES NOMINAL |
| FIRST END BEARING SEAT WIDTH | 1.375 INCHES NOMINAL |
| FIRST END DISTANCE FROM BEARING SEAT TO END | 4.000 INCHES NOMINAL |
| SECOND END TYPE | SPLINED |
| SECOND END SPLINE TYPE | INVOLUTE |
| SECOND END SPLINE QUANTITY | 16 |
| SECOND END SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| SECOND END PITCH DIAMETER | 1.625 INCHES NOMINAL |
| SECOND END SPLINE LENGTH | 2.312 INCHES NOMINAL |
| SECOND END SPLINE MAJOR DIAMETER | 1.740 INCHES NOMINAL |
| SECOND END SPLINE MINOR DIAMETER | 1.580 INCHES NOMINAL |
| SECOND END BEARING SEAT | NOT INCLUDED |
| SPECIAL FEATURES | FIRST END THD 1.250-18 UNEF |
Restrictions/Controls & Freight Information | NSN 2520-00-758-0052
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 017900 | AUTO AXLE SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2520-00-758-0052
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
