Product Details | VEHICULAR SHIFTER FORK

2520-00-753-8665 An item having two or more prongs which may have transverse hole(s), slot(s), dowel pin(s), pad(s), in or on the end of each prong, to provide a means to accomplish the engagement or disengagement of gear(s), shaft(s), clutch, or the like. The opposite end has facilities for a shaft, lever, or the like. This item is designed to be used on vehicular applications such as automobiles, tanks, construction equipment, and the like.

Part Alternates: 2398T2, 32P38, 7538665, 2520-00-753-8665, 00-753-8665, 2520007538665, 007538665

Vehicular Equipment Components | Vehicular Power Transmission Components

Supply Group (FSG) NSN Assign. NIIN
25 01 JAN 1963 00-753-8665

Drawings & Photos | NSN 2520-00-753-8665


Cross Reference | NSN 2520-00-753-8665

Part Number Cage Code Manufacturer
2398T2 56442 DIAMOND REO TRUCK CO
32P38 95019 DANA CORP SPICER TRANSMISSION DIV
7538665 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2520-00-753-8665

Technical Data | NSN 2520-00-753-8665

Characteristic Specifications
MATERIAL STEEL

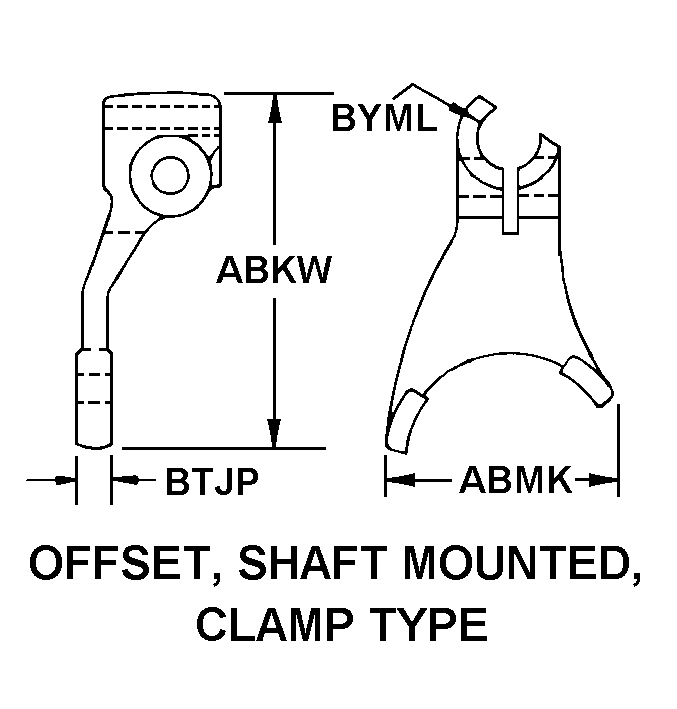

STYLE DESIGNATOR A5 OFFSET, SHAFT MOUNTED, CLAMP TYPE

Restrictions/Controls & Freight Information | NSN 2520-00-753-8665

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 885 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
