NSN 2520-00-735-3157 007353157
Product Details | SHOULDERED SHAFT
2520-00-735-3157 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 007353157
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-735-3157 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 2520-00-735-3157
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2520-00-735-3157
Technical Data | NSN 2520-00-735-3157
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE FINISH | 32.0 MICROINCHES |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 2.9660 INCHES MINIMUM AND 2.9680 INCHES MAXIMUM |
| END SIMILARITY | NOT IDENTICAL |

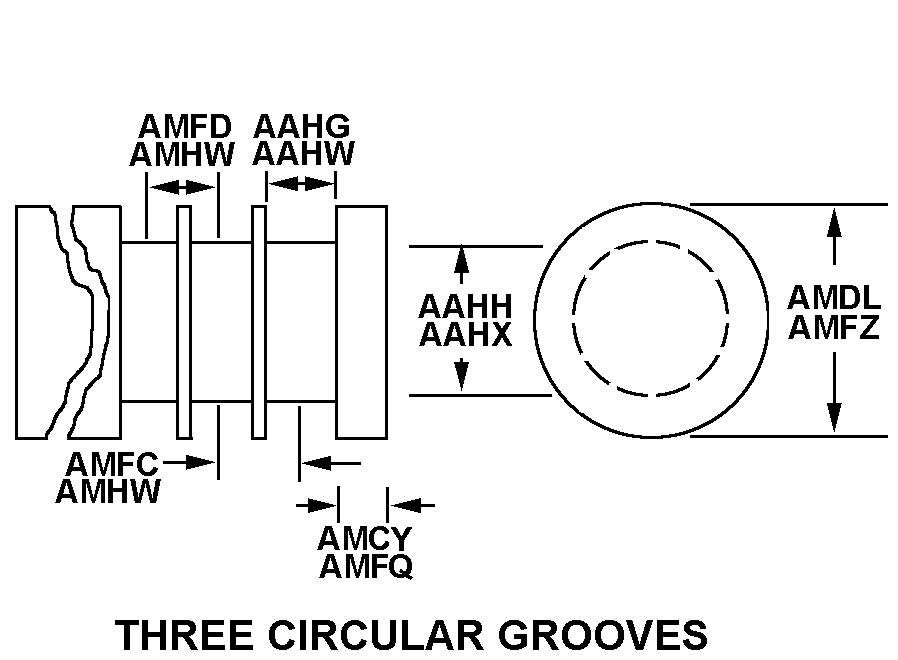

| SECOND END STYLE | 34 THREE CIRCULAR GROOVES |
| SECOND END GROOVE WIDTH | 0.0625 INCHES NOMINAL |
| SECOND END GROOVE DIAMETER | 0.8320 INCHES MINIMUM AND 0.8380 INCHES MAXIMUM |
| SECOND END DISTANCE FROM END TO GROOVE | 0.110 INCHES NOMINAL |
| SECOND END DIAMETER | 0.8744 INCHES MINIMUM AND 0.8749 INCHES MAXIMUM |
| SECOND END DISTANCE BETWEEN FIRST AND SECOND GROOVE CENTERS | 0.7330 INCHES NOMINAL |
| SECOND END DISTANCE BETWEEN SECOND AND THIRD GROOVE CENTERS | 1.157 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 2.968 INCHES MAXIMUM |
| OVERALL LENGTH | 5.140 INCHES NOMINAL |
| STEP QUANTITY | 6 |
| MANUFACTURERS CODE | 44674 |
| DESIGN CONTROL REFERENCE | 47778 |
Restrictions/Controls & Freight Information | NSN 2520-00-735-3157
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
