NSN 2520-00-713-5543 SPS1012U, 1582385, 25207135543

Product Details | FLEXIBLE SHAFT ASSEMBLY CORE

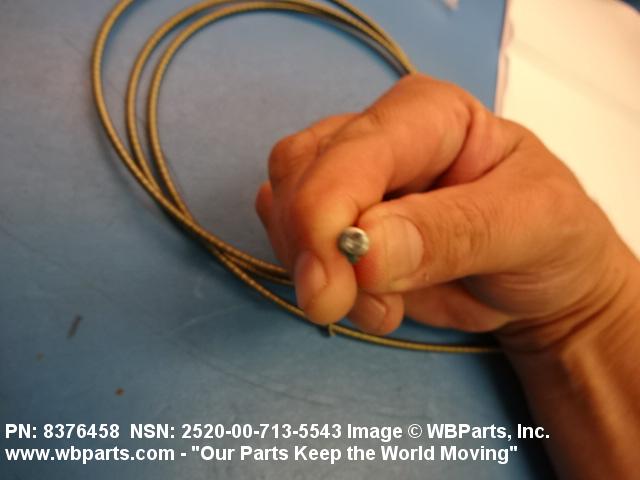

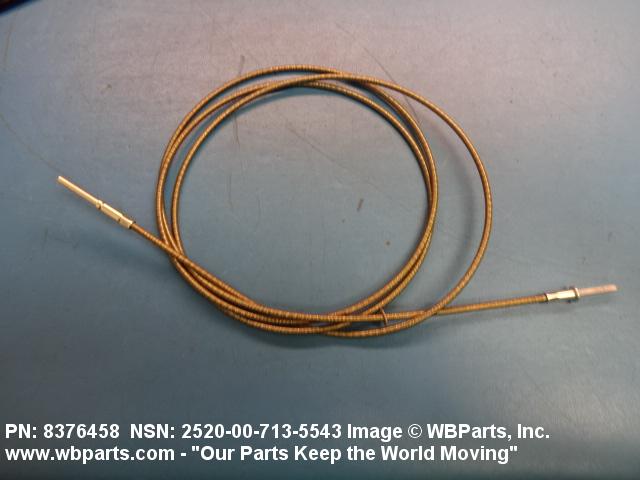

2520-00-713-5543 A specific length of SHAFTING, FLEXIBLE with squared end(s) and/or crimped on tip(s) with or without fittings attached, designed so as to function inside the pliable protective casing of a SHAFT ASSEMBLY, FLEXIBLE.20316800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components30400042Miscellaneous Power Transmission Equipment

Part Alternates: SPS1012U, 1582385, 25207135543, 41804970, 418049-70, 8376458, 2520-00-713-5543, 00-713-5543, 2520007135543, 007135543

Vehicular Equipment Components | Vehicular Power Transmission Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
25	01 JAN 1963	00-713-5543	10245 ( CORE, FLEXIBLE SHAFT ASSEMBLY )

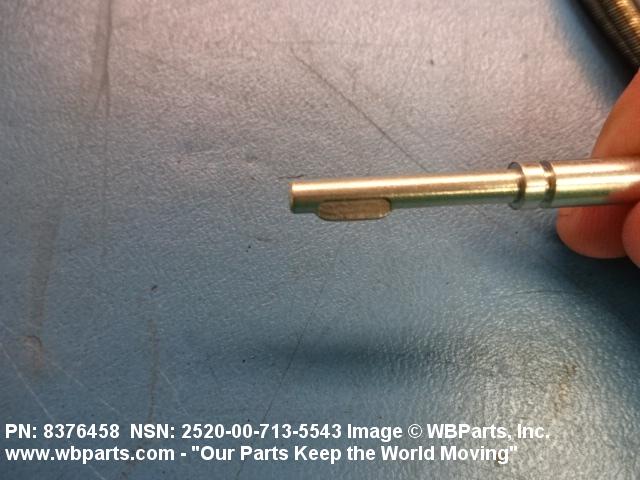

Drawings & Photos | NSN 2520-00-713-5543

Part Number	Request Date	QTY	Origin
2520-00-713-5543	2020-10-293	49	DIBBS
2520-00-713-5543	2020-10-282	49	DIBBS
2520-00-713-5543	2020-02-41	41	DIBBS
2520-00-713-5543	2020-01-30	41	DIBBS
2520-00-713-5543	2019-04-107	37	United States
2520-00-713-5543	2019-03-60	35	DIBBS
2520-00-713-5543	2019-02-49	35	DIBBS
2520-00-713-5543	2017-02-32	3	MANUAL
8376458	2017-02-32	3	United States
8376458	2016-12-355	125	United States
2520-00-713-5543	2015-12-357	15	Pakistan
2520-00-713-5543	2014-11-310	71	DIBBS
2520-00-713-5543	2014-10-299	71	DIBBS
2520-00-713-5543	2014-06-154	71	DIBBS
8376458	2014-05-125	50	PK
2520-00-713-5543	2014-04-104	2	DIBBS
2520-00-713-5543	2014-04-92	2	DIBBS
2520-00-713-5543	2013-12-351	15	DIBBS
2520-00-713-5543	2012-09-254	91	DIBBS
2520-00-713-5543	2010-09-252	15	DIBBS

Cross Reference | NSN 2520-00-713-5543

Part Number	Cage Code	Manufacturer
1582385	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
1582385	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
25207135543	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
418049-70	57733	STEWART-WARNER CORPORATION
8376458	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
SPS1012U	95688	PRESTOLITE ELECTRIC INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2520-00-713-5543

Compare

Related Products | NSN 2520-00-713-5543

2520-00-713-5698, 2520-00-713-5717, 2520-00-713-7072, 2520-00-713-7091, 2520-00-713-7106

Technical Data | NSN 2520-00-713-5543

Characteristic	Specifications
MATERIAL	STEEL
SURFACE TREATMENT	CADMIUM PLATED
CORE DIAMETER	0.151 INCHES NOMINAL

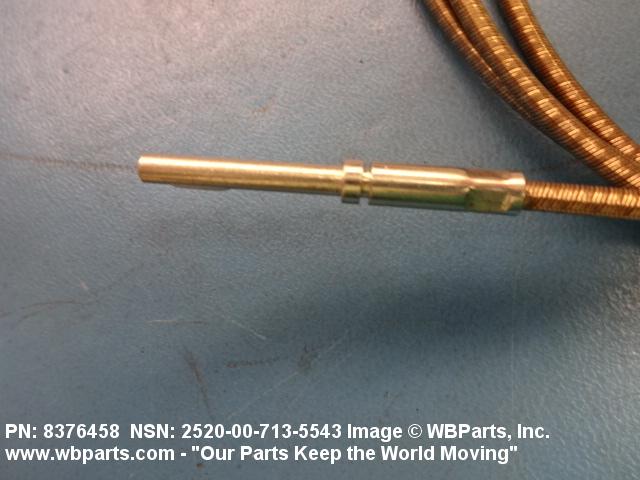

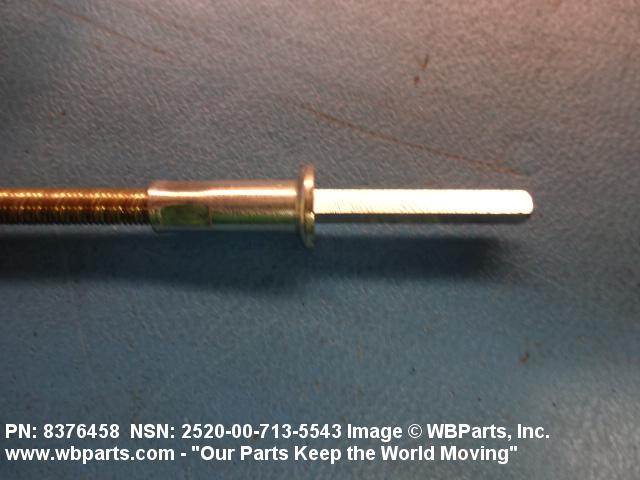

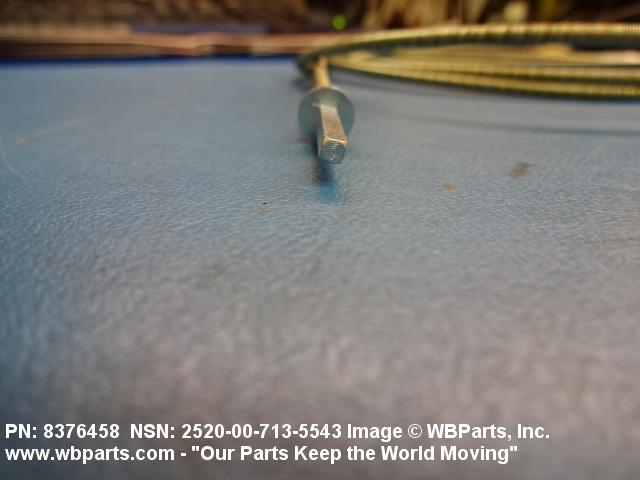

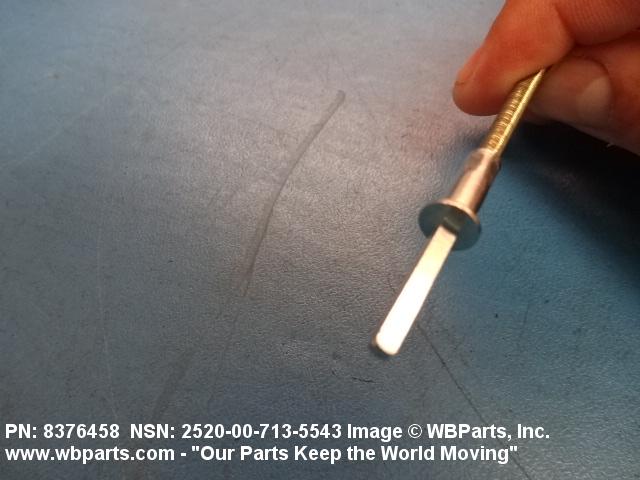

END TYPE	ROUND KEYED SQUARE FEMALE
END OVERALL LENGTH	0.359 INCHES NOMINAL

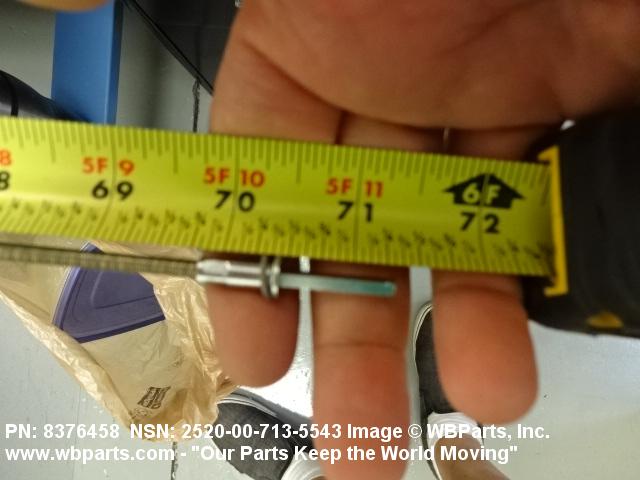

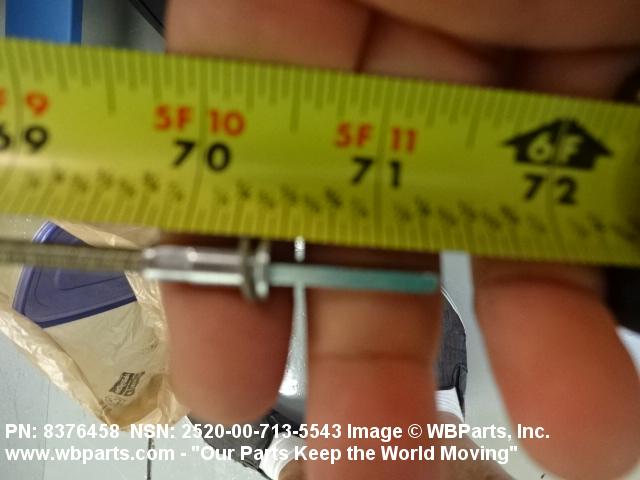

OVERALL LENGTH	70.000 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 2520-00-713-5543

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	129920	SHAFTS/SHAFTING,FLEX NOI STL
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2520-00-713-5543

Army
Air Force

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
