Product Details | VEHICULAR POSITIVE CLUTCH HALF

2520-00-615-6763 That portion of a CLUTCH,POSITIVE which transmits or receives motion or power by engagement with the mating member.

Part Alternates: BB16262, 105984R1, 2848D4, 397338, 539T5, 5T5805, 6156763, 91086259, 915827, 2520-00-615-6763, 00-615-6763, 2520006156763, 006156763

Vehicular Equipment Components | Vehicular Power Transmission Components

Supply Group (FSG) NSN Assign. NIIN
25 01 JAN 1963 00-615-6763

Drawings & Photos | NSN 2520-00-615-6763


Demand History | NSN 2520-00-615-6763

Part Number Request Date QTY Origin
2848D4 2012-07-193 4 UK

Cross Reference | NSN 2520-00-615-6763

Part Number Cage Code Manufacturer
105984R1 31007 NAVISTAR INTL CORP
105984R1 89346 NAVISTAR INTL CORP TRUCK BR
2520006156763 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
2848D4 33323 KENWORTH TRUCK CO A DIV OF PACCAR INC
2848D4 62265 VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
2848D4 63734 KAITLIN CORP
2848D4 78500 MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS,
397338 62265 VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
397338 65282 WHITE MOTOR CORP
539T5 56442 DIAMOND REO TRUCK CO
5T5805 62265 VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
6156763 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
91086259 U0724 VAUXHALL AFTERSALES DBA INFO-TBILISI
915827 58275 SASCO INC CANADIAN DIV
BB16262 56442 DIAMOND REO TRUCK CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2520-00-615-6763

Technical Data | NSN 2520-00-615-6763

Characteristic Specifications

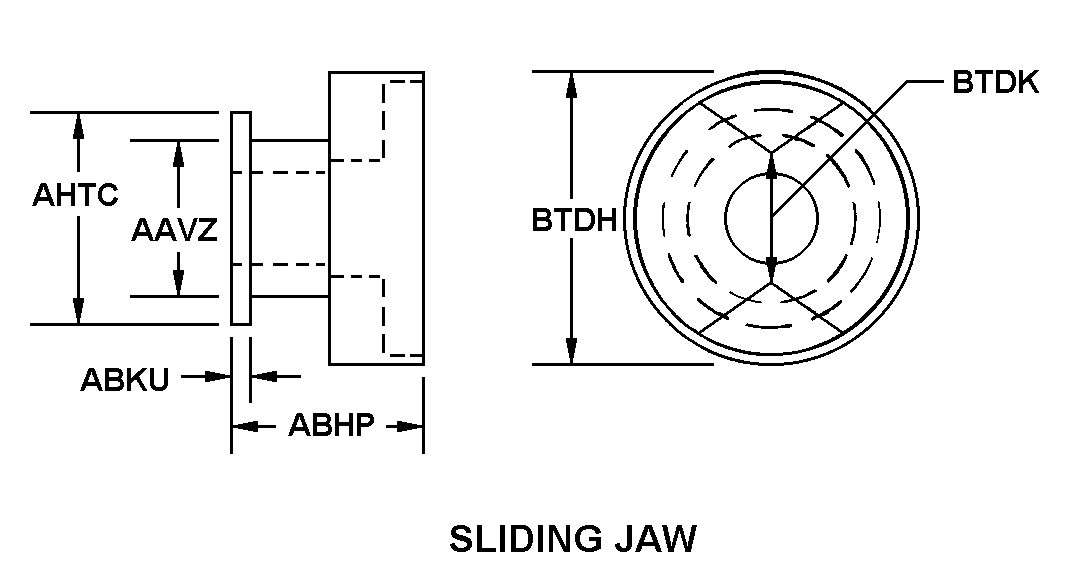

STYLE DESIGNATOR A6 SLIDING JAW
