Product Details | UNIVERSAL JOINT

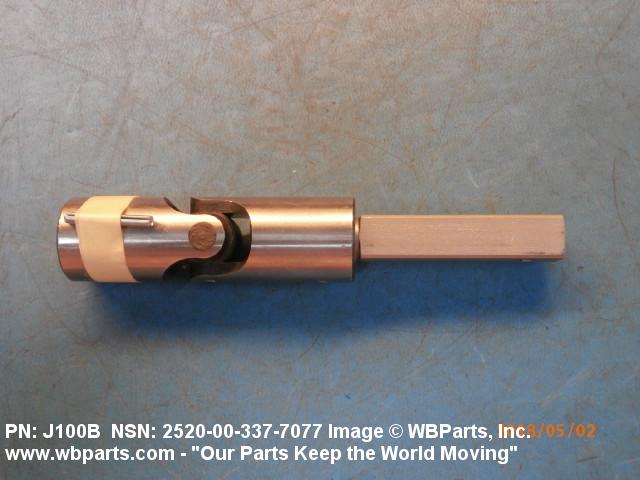

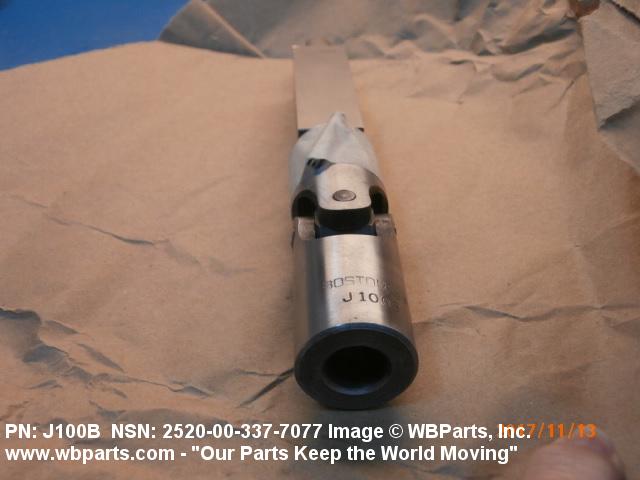

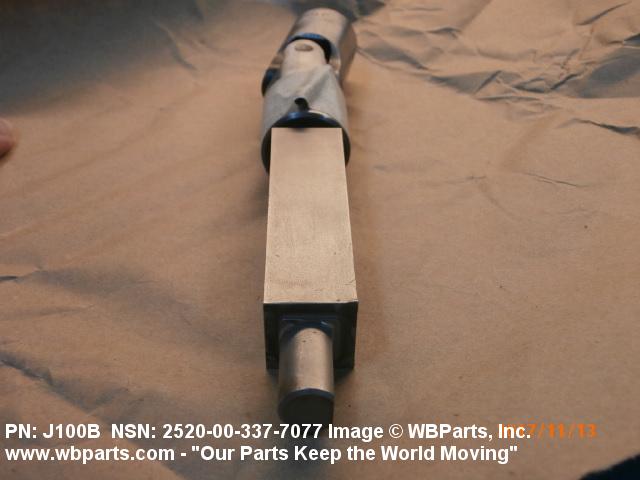

2520-00-337-7077 A flexible connection designed for vehicular applications which permits rotary motion to be transmitted between two shafts located at an angle to each other. The angle between the shafts may be continually varied within certain limits; the connecting ends must have either a flange, hub, or splined stub shaft; the plain portion of a splined stub shaft must not exceed the length of the splines. Excludes drive or propeller shafts with joint(s) at one or both ends. See UNIVERSAL JOINT,GEARED.
Part Alternates: J100B, 4255, 7995749, 2520-00-337-7077, 00-337-7077, 2520003377077, 003377077
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-337-7077 | 52079 ( UNIVERSAL JOINT, VEHICULAR ) |
Drawings & Photos | NSN 2520-00-337-7077
Demand History | NSN 2520-00-337-7077
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2520-00-337-7077 | 2018-04-94 | 2 | United States |
| 2520-00-337-7077 | 2017-10-292 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2520-00-337-7077
Technical Data | NSN 2520-00-337-7077
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 3.375 INCHES NOMINAL |

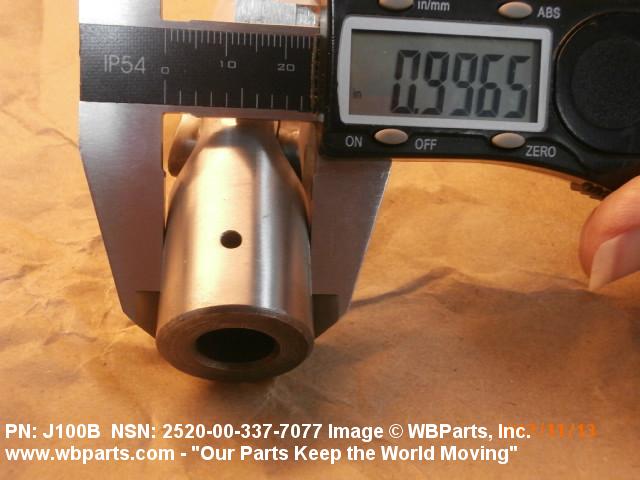

| SPECIAL FEATURES | CONNECTION END TYPE: HUB |

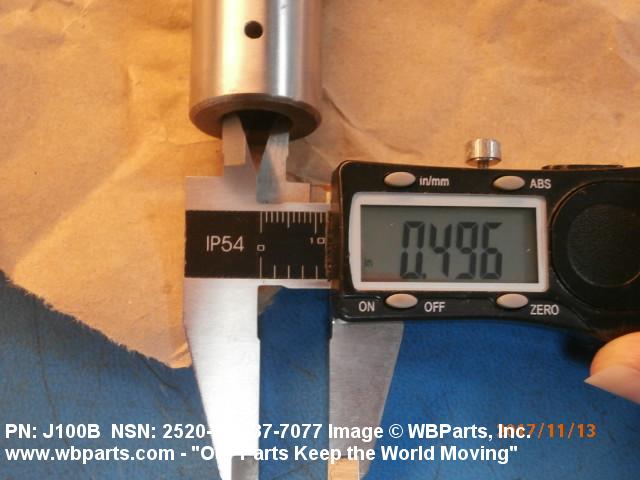

| (NON-CORE DATA) MAJOR DIAMETER | 0.499 INCHES MINIMUM 0.500 INCHES MAXIMUM |
| (NON-CORE DATA) OUTSIDE DIAMETER | 0.999 INCHES MINIMUM 1.000 INCHES MAXIMUM |
| (NON-CORE DATA) SECURING HOLE QUANTITY | 4 |

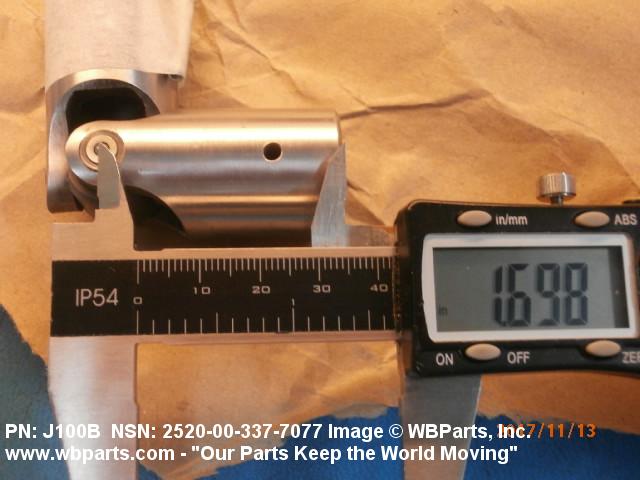

| (NON-CORE DATA) LENGTH FROM UNIVERSAL JOINT SPIDER CENTERLINE TO HUB END | 1.688 INCHES NOMINAL |
| (NON-CORE DATA) UNTHREADED SECURING HOLE DIAMETER | 0.1865 INCHES MINIMUM 0.1870 INCHES MAXIMUM |
| (NON-CORE DATA) HUB BORE | INCLUDED |
| (NON-CORE DATA) HUB SECURING HOLE | INCLUDED |
| (NON-CORE DATA) SECURING HOLE LOCATION | END HOLES 1/4 IN. FROM ENDS,2.875 PORM .005 C TO C,90 DEG APART; INSIDE HOLES 1.875 PORM .005 C TO C,90 DEG APART |
| (NON-CORE DATA) OUTSIDE SHAPE | ROUND |
| (NON-CORE DATA) FSC APPLICATION DATA | STEERING SHAFT,HOWITZER,SELF PROPELLED,FULL TRACKED |
| MANUFACTURERS CODE | 71041 |
| DESIGN CONTROL REFERENCE | J100B |
