NSN 2520-00-177-8296 8756910, 00-177-8296, 001778296
Product Details | TRANSMISSION FLUID COOLER
2520-00-177-8296 An apparatus designed to lower the temperature of the fluid in power transmission equipment by bringing it into proximity with another fluid of lower temperature so that heat transfer is effected by conduction through the walls of separating chambers. Excludes air conditioning equipment, refrigeration equipment, and radiators.20225200039Vehicular Power Transmission Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 8756910, 2520-00-177-8296, 00-177-8296, 2520001778296, 001778296
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 10 JAN 1969 | 00-177-8296 | 08395 ( COOLER, FLUID, TRANSMISSION ) |
Drawings & Photos | NSN 2520-00-177-8296
Cross Reference | NSN 2520-00-177-8296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8756910 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2520-00-177-8296
Technical Data | NSN 2520-00-177-8296
| Characteristic | Specifications |
|---|---|

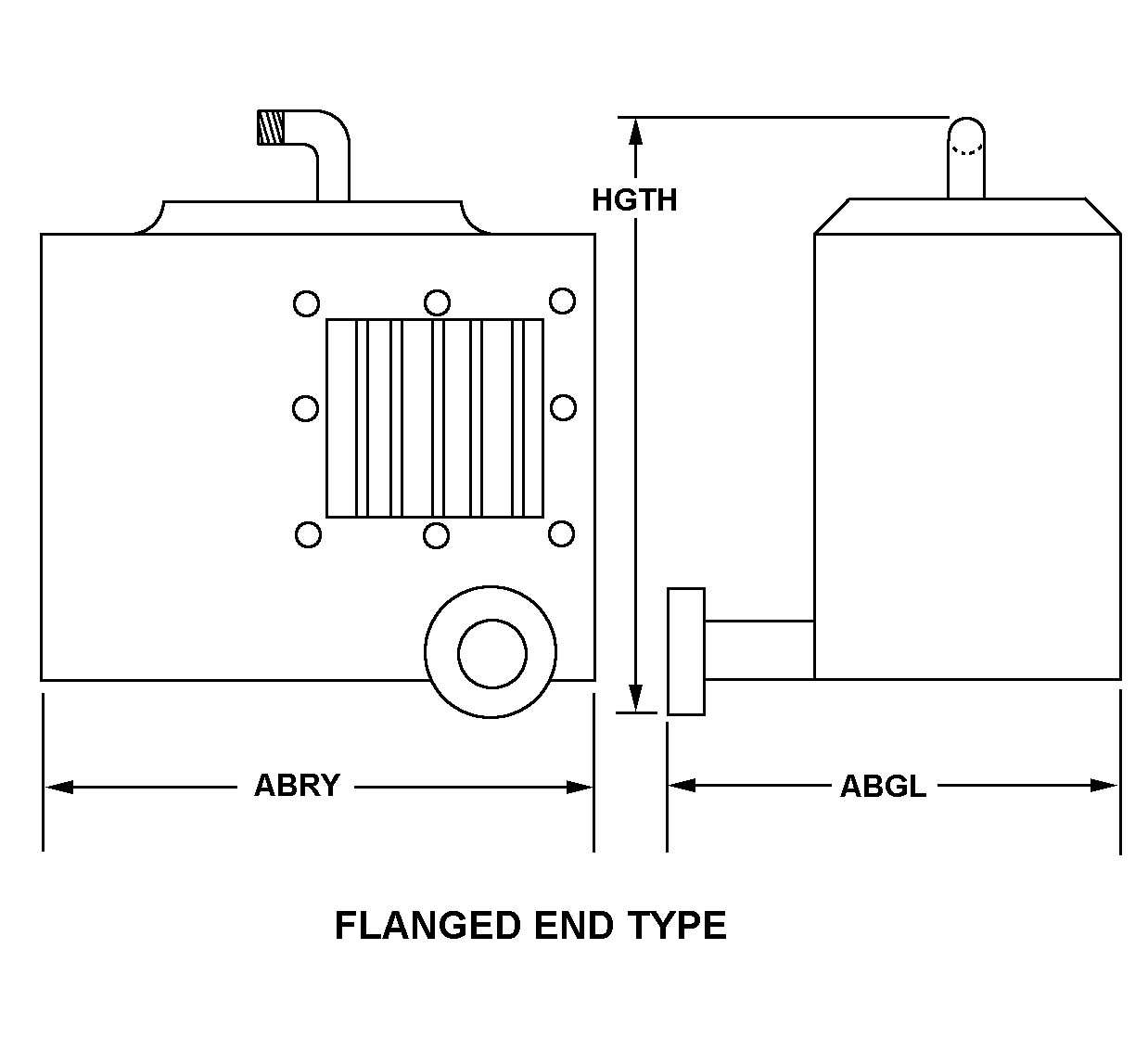

| STYLE DESIGNATOR | A5 FLANGED END TYPE |
| WIDTH | 9.625 INCHES NOMINAL |
| LENGTH | 16.781 INCHES NOMINAL |
| HEIGHT | 8.875 INCHES NOMINAL |
| SPECIAL FEATURES | WITH MOUNT ATTACHED |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8756910 |
Restrictions/Controls & Freight Information | NSN 2520-00-177-8296
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | M | 85 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
