NSN 2510-01-484-9884 13384817, 01-484-9884, 014849884
Product Details | VEHICULAR FENDER
2510-01-484-9884 An item of various shapes and sizes, designed to partially envelop the wheel(s) or tracks of a vehicle. It is primarily designed to protect against splashing mud, and the like. Excludes DEFLECTOR, DIRT AND LIQUID and GUARD, SPLASH, WHEEL.
Part Alternates: 13384817, 2510-01-484-9884, 01-484-9884, 2510014849884, 014849884
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 11 MAY 2001 | 01-484-9884 | 60467 ( FENDER, VEHICULAR ) |
Drawings & Photos | NSN 2510-01-484-9884
Demand History | NSN 2510-01-484-9884
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2510-01-484-9884 | 2009-09-271 | 4 | US |
| 2510-01-484-9884 | 2009-09-251 | 4 | US |
| 2510-01-484-9884 | 2009-09-245 | 4 | US |
| 2510-01-484-9884 | 2009-08-231 | 4 | US |
| 2510-01-484-9884 | 2009-08-216 | 4 | US |
Cross Reference | NSN 2510-01-484-9884
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13384817 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2510-01-484-9884
Technical Data | NSN 2510-01-484-9884
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/II FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE AND PAINT |

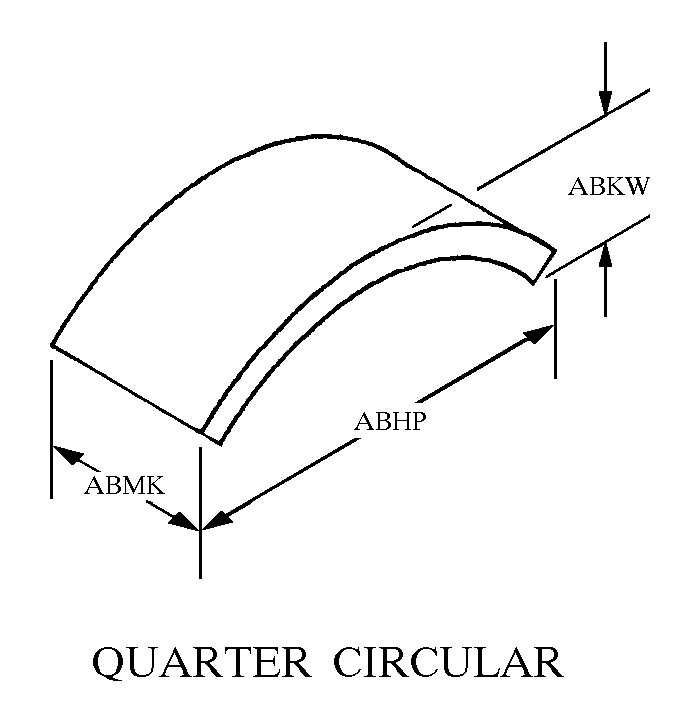

| STYLE DESIGNATOR | 2 QUARTER CIRCULAR |
| MOUNTING POSITION | BACK RIGHT SIDE OR RIGHT FRONT |
| OVERALL LENGTH | 49.950 INCHES NOMINAL |
| OVERALL WIDTH | 11.250 INCHES NOMINAL |
| OVERALL HEIGHT | 16.380 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2510-01-484-9884
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
