NSN 2510-01-253-6140 GARY GALOK TYPE GAL 100A, GARYGALOKTYPEGAL100A, XM65428
Product Details | METAL GRILLE
2510-01-253-6140 A metal frame enclosing a metal core which is constructed of perforated sheet metal, bars, core material, or the like. It is used to form an openwork barrier or screen to allow the passage of a maximum quantity of air and/or light, but excluding the passage of foreign objects. Excludes GUARD, FAN IMPELLER.20616600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25100052Vehicular Cab, Body, and Frame Structural Components29250058Engine Electrical System Components, Aircraft Prime Moving4130000053400020Hardware, Commercial56700034Building Components, Prefabricated
Part Alternates: GARY GALOK TYPE GAL 100A, GARYGALOKTYPEGAL100A, XM65428, 12275088, 12287681, 12310873, 12344569, 2510-01-253-6140, 01-253-6140, 2510012536140, 012536140
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 22 APR 1987 | 01-253-6140 | 04236 ( GRILLE, METAL ) |

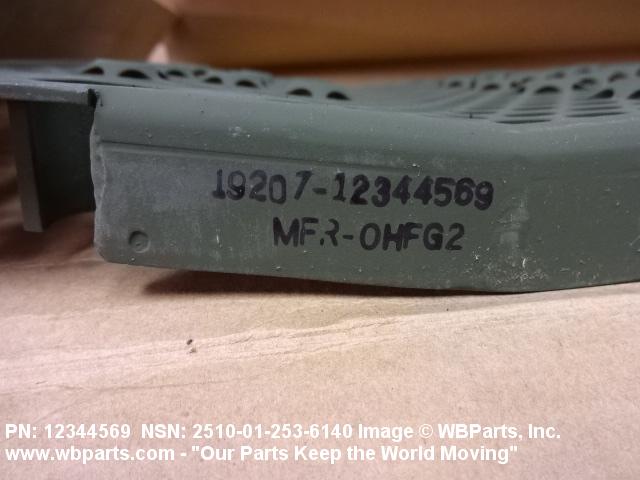

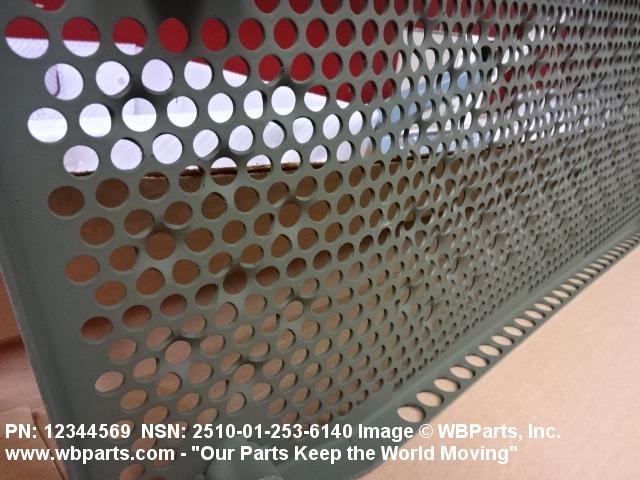

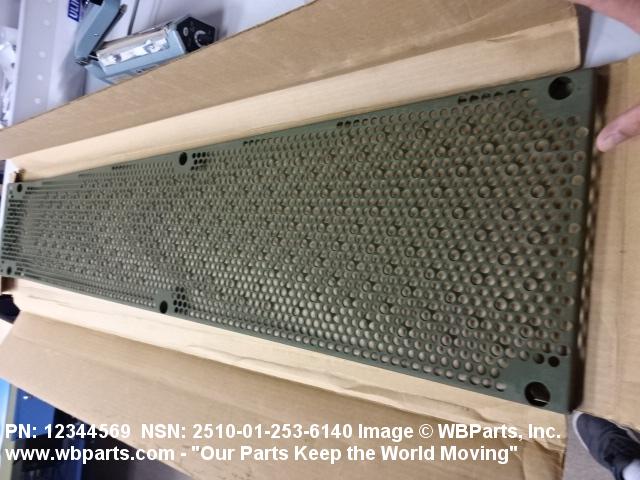

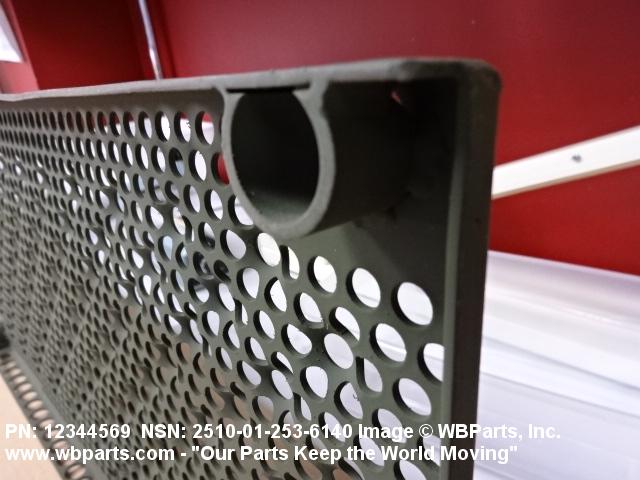

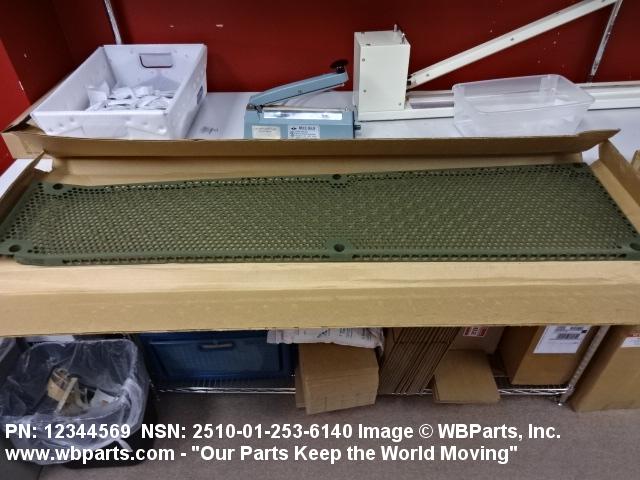

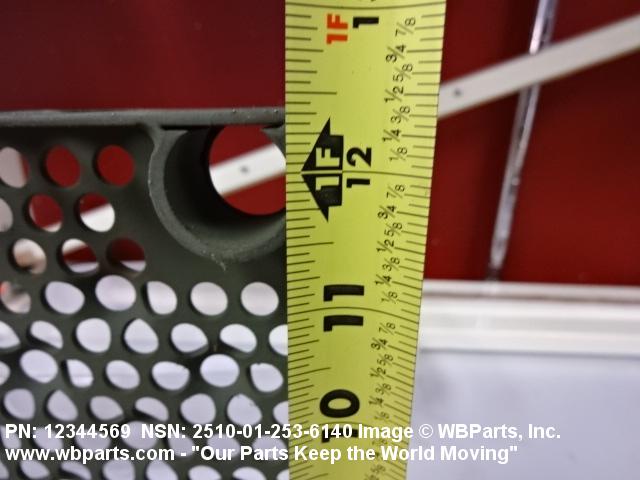

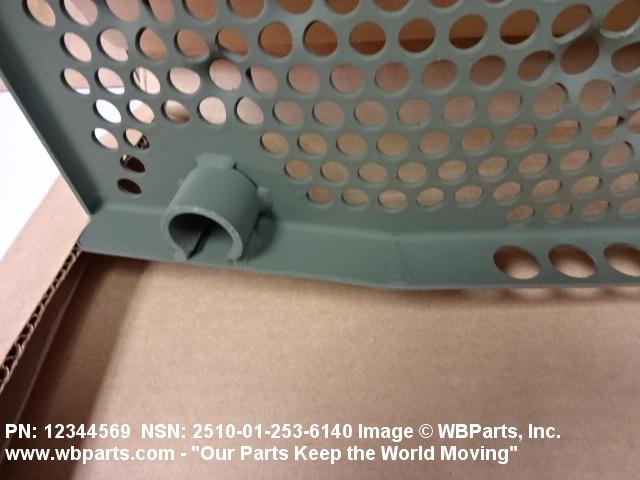

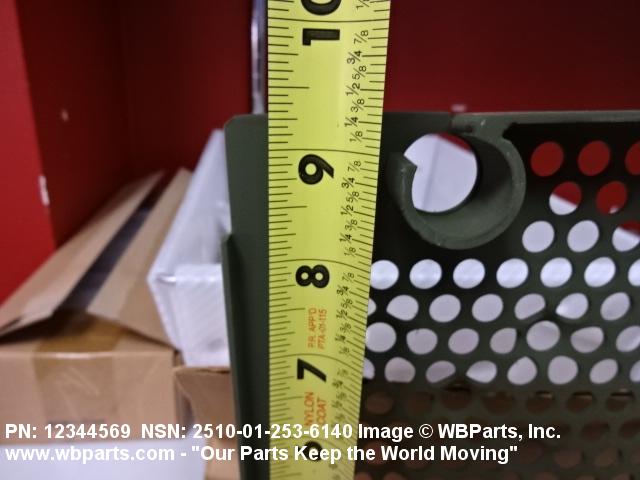

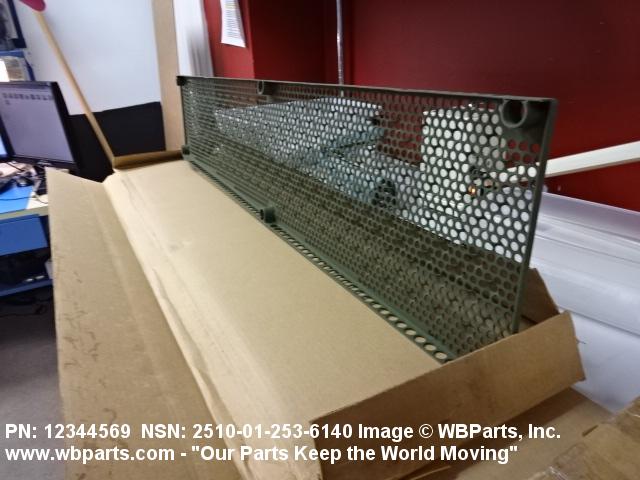

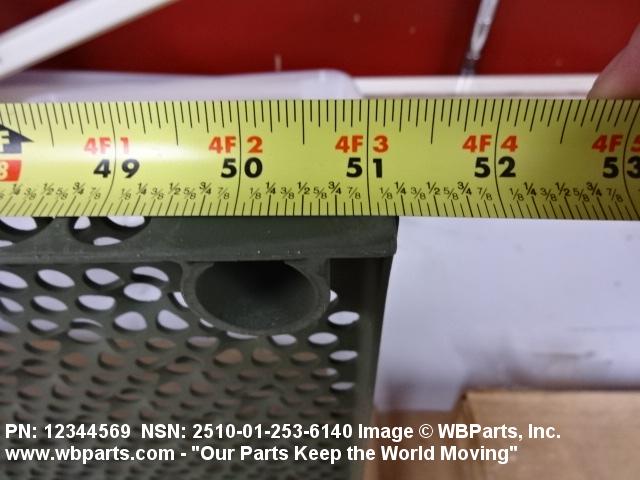

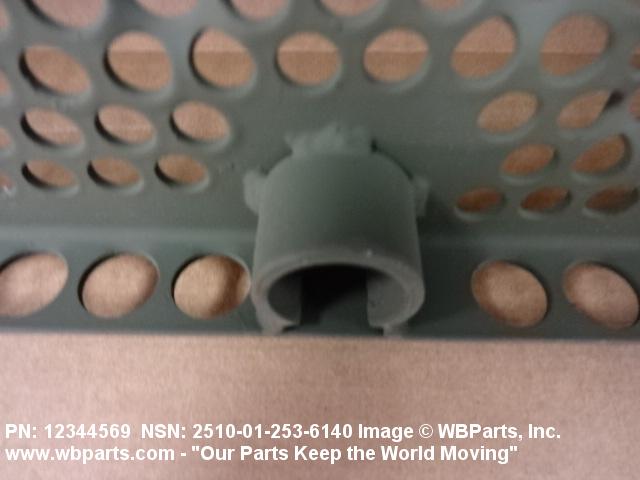

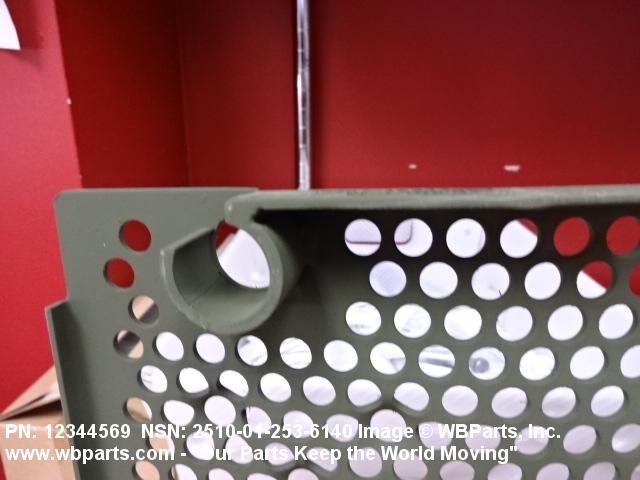

Drawings & Photos | NSN 2510-01-253-6140
Demand History | NSN 2510-01-253-6140
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2510-01-253-6140 | 2017-04-117 | 2 | United States |
| 2510-01-253-6140 | 2017-04-107 | 8 | DIBBS |
| 2510-01-253-6140 | 2017-04-94 | 8 | DIBBS |
| 2510-01-253-6140 | 2017-02-34 | 2 | DIBBS |
| 2510-01-253-6140 | 2017-01-23 | 2 | DIBBS |
| 2510-01-253-6140 | 2014-04-104 | 2 | DIBBS |
| 2510-01-253-6140 | 2014-04-93 | 2 | DIBBS |
Cross Reference | NSN 2510-01-253-6140
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12275088 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12287681 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12310873 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12344569 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| GARY GALOK TYPE GAL 100A | 31273 | HARSCO CORP IKG INDUSTRIES DIV |
| XM65428 | 01417 | GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-01-253-6140
Related Products | NSN 2510-01-253-6140
Technical Data | NSN 2510-01-253-6140
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL MESH STEEL FRAME |
| SURFACE TREATMENT AND LOCATION | PAINTED OVERALL |
| SHAPE | RECTANGULAR |
| FRAME TYPE | ROUND |
| FRAME OVERALL DIAMETER | 1.125 INCHES NOMINAL |
| FRAME MOUNTING HOLES | INCLUDED |
| MOUNTING HOLE QUANTITY | 6 |
| MOUNTING HOLE DIAMETER | 0.875 INCHES NOMINAL |
| MOUNTING HOLE SPACING | IRREGULAR RECTANGULAR SHAPE REEERTO DWG 1234456 |
| CORE TYPE | CORE MATERIAL |
| CORE THICKNESS | 0.109 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2510-01-253-6140
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018260 | AUTO BODY PART VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2510-01-253-6140
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
